#1 Home Improvement Retailer

Internet # 327085573

Model # HBLAOS-1824C3R

Store SKU # 1010397081

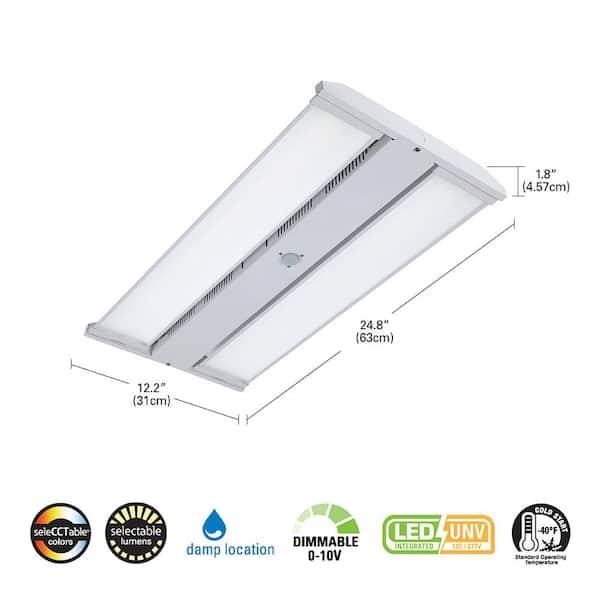

2 ft. 400-Watt Equivalent LED Highbay with Adjustable Optics, Selectable 18K/21K/24K Lumens and 3500/4000/5000 Sel CCT

  • Control light direction up to 135° with aimable optics
  • 3-lumen select - 18000, 21000 or 24000
  • 3 CCT select - 3500K, 4000K or 5000K
  • View More Details
0 in stock
Product Details

About This Product

The Metalux HBLAO Selectable 2 ft. Linear LED high bay light with Aimable Optics is made to illuminate small, medium or large spaces. The HBLAOS is equipped with Aimable Optics to customize and control light output direction. The aimable optics can rotate freely in any direction up to 135°. The new HBLAO Selectable high bay has 3 selectable lumen options - 10000 Lumens, 12000 Lumens or 16000 Lumens and 3 selectable CCTs -3500, 4000 or 5000K. The selectable switches are easily accessible. The Metalux HBLAOS replaces 192-Watt fluorescent or 250-Watt metal halide lamps and comes with 0-Volt-10-Volt dimming class A 120-Volt -277-Volt, driver. DLC Premium qualified, UL Listed for damp locations and rated for ambient temperatures from minus 40°C to 50°C (minus 40°F to 122°F). Great for mounting heights up to 25 ft. high, the Metalux HBLAOS includes V-hanger and chain set for easy installation. The HBLAOS is suitable for sheds, barns, storage areas, warehouse and other multi-function spaces. Available add-on sensor accessory for easy plug and play connectivity through center port and can be purchased separately.


  • Selectable lumen: low (18000), medium (21000), high (24000)
  • Selectable CCT: 3500K, 4000K, 5000K
  • Control direction or aim (up to 135°) light for greater flexibility and application usages
  • 3 wattages: 120-Watt/150-Watt/165-Watt
  • Replaces 256-Watt fluorescent or 400-Watt metal halide lamps
  • Plug and play sensor using sensor accessory (order separately)
  • 120-Volt to 277-Volt dimming driver requires purple and grey wires to be pulled from dimmer switch to light fixture
  • Operating ambient temperatures from minus 40°C to 50°C (minus 40°F to 122°F)
  • Includes V-hanger and 39 in. chain-set for easy installation
  • Great for mounting heights up to 35 ft. H
  • DLC premium and cULus Listed suitable for damp location
  • Suitable for sheds, barns, storage areas, warehouse and other multi-function spaces
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 327085573

Model # HBLAOS-1824C3R

Store SKU # 1010397081



Product Height (in)


Product Length (in)


Product Width (in)



Actual Color Temperature (K)

3500, 4000, 5000

Color Rendering Index (CRI)


Color Temperature


Color Temperature




Color/Finish Family


Commercial Light Type

High Bay

Damp/Wet Rating

Damp Rated (Covered Outdoor)

Dimmable Capability

0-10-Volt Dimming


No Additional Features

Fixture Color Family


Fixture Shape



Mounting Hardware

Light Bulb Type Included

Integrated LED

Location Use

Garage, Office, Warehouse





Package Quantity


Power Source


Product Length (ft)

2.07 ft

Product Weight (lb.)

7.94 lb

Product Width (ft)

1.02 ft

Recommended Mounting Height (ft.)

35 ft

Voltage (V)

120/277 V

Wattage (W)

165 W

Warranty / Certifications

Certifications and Listings

ROHS, UL Certified, cULus Listed

Manufacturer Warranty

5-years limited warranty

Questions & Answers

Q:Is there any capabilty Wi-Fi (smart) light switches with 0-10v dimmer if the intended use is 120v and 120 watt or 150 watt power selection? Looking to pair with the TP-Link Kasa Smart Wi-Fi Light Switch & Dimmer (Model: HS220)
by|Jan 29, 2024
1 Answer
Answer This Question

A:  Please note that HS220 is not compatible with HBLAOS fixture.

by|Jan 30, 2024
    Q:can this light be wired to plug into a receptacle? Is there a part number available?
    by|Dec 31, 2023
    1 Answer
    Answer This Question

    A:  Please note that HBLAOS-1824C3R cannot be plugged into the receptacle, refer to the below link for more details. https://images.thdstatic.com/catalog/pdfImages/58/5870448e-c9f1-4035-aebb-5de6cd7683b6.pdf

    by|Jan 3, 2024
      Q:Can this light be flush mount instead of suspended? Will a standard dimmer switch work?
      by|Dec 12, 2023
      1 Answer
      Answer This Question

      A:  Please note that HBLAOS cannot be flush mounted, refer to the below link for more details. https://images.thdstatic.com/catalog/pdfImages/6d/6d98069d-1f54-4321-8788-c08af717f55b.pdf

      by|Dec 13, 2023
        Showing 1-3 of 3

        Customer Reviews

        4.9 out of 5

        • 4.9 out of 36 reviews
        • 0% recommend this product
        Filter by:
        Showing 1-10 of 36 reviews
        Just perfect!
        [This review was collected as part of a promotion.] I needed new lighting for my walk in closet for the longest time. This high bay came in perfect time. I’m so happy about this light because it’s adjustable in colour.
          Lots of options
          [This review was collected as part of a promotion.] Perfect addition to my craft room. The light is thinner then what I was expecting giving it a streamlined look rather then something more industrial. It’s is light weight and hangs from the ceiling with chains to allow for the individual lights to be moved and adjusted as needed. The lights swivel and can give light to the other end of the room if necessary, they are very easy to move with your hands but because of the chains you need a second hand to brace it so it doesn’t swing wildly. I absolutely love that I am able to have a big bright light above my work station and when needed I can re-direct the light to the floor when working on larger pieces without needing to add more large lights to the space.
            Adjustable light perfect for any space
            [This review was collected as part of a promotion.] Thank you Metalux and Influenster for sending me this 400-watt equivalent LED Highbay with Adjustable Optics in exchange for my review! This is a really great light that works anywhere, the kitchen, the garage, the workshop, any place that needs lighting. It has two panels that has adjustable setting, there are 3 levels of power from low to high, and the color temperature can also be changed, a warm light at 3500k, cool white at 4000K, and daylight at 5000k. Each panel can move within 135 degrees so the light can be directed sideways, outside, centered or focused in the middle. It is a very customizable light that works any place.
              Cool light
              [This review was collected as part of a promotion.] This shop like is soooo cool I love that it can turn and be adjusted. I love that it’s led and I would 100% recommend this to my friends. It’s great quality
                Perfect Adjustable Lighting
                [This review was collected as part of a promotion.] This looks like a simple high boy light,however it has several extra features that I really like. Created to illuminate small to large rooms,this light is a great option for sheds,barns,storage areas or wherever you want a light. The extra features that stand out and really make this light a great choice are that it has been created with amiable optics that allow you to rotate the lighting direction any way you want up to 135degreesu,which I love. The light is very easy to install and even comes with a Vhanger and chain set to make hanging easy.
                  its bright
                  [This review was collected as part of a promotion.] this LED luminous light lights up the room like if it was daytime. My garage is now able to be used during the night if we need to go get something because the lights are so bright. I like that it is adjustable in the back with the buttons, he can make it brighter, or, you can have the bulb slider. I love that it has adjustable. This is a really good light for any anywhere in the house recommended
                    FAN-tastic Lighting
                    [This review was collected as part of a promotion.] This was an amazing light that was put underneath the gazebo and now we can eat dinner outside knowing it is bright. Very simple to wire up with existing wiring and was able to hang it with no issues. I also love that you are able to angle the lights to the direction needed. To top it off you can change the brightness and color of the light. Amazing product!!!!
                      [This review was collected as part of a promotion.] This light is smaller and lighter than I expected. I like that optic panels are adjustable and rotate in both directions. I prefer it pointing down. I also like that there are 3 different brightness options. It's compatible with any space size. The switch is on the side that faces the ceiling. They have sensor accessory for the front of the fixture and a remote, but it's not included and sold separately. It comes with a chain set and a v-hanger for installation. The chain is adjustable, so you can raise or lower this light fixture depending on your ceiling height. It was easy to install. It's made for multi function spaces like garage or shed with higher ceiling. But it would look and work well in a house as well.
                        Yes! I love it!!
                        [This review was collected as part of a promotion.] The Metalux LED light is really nice. It is great for shed or garage. You can select 3 lumen modes, 10000, 12000 or 16000 lumens. It is very bright. The light is exactly what I need for my garage!!
                          Amazing light
                          [This review was collected as part of a promotion.] This light is incredible. So bright, even on the lowest setting. Love the face that you can point the light where you need it. It was so easy to wire up and hang. Couldn't be more happy with this thing.
