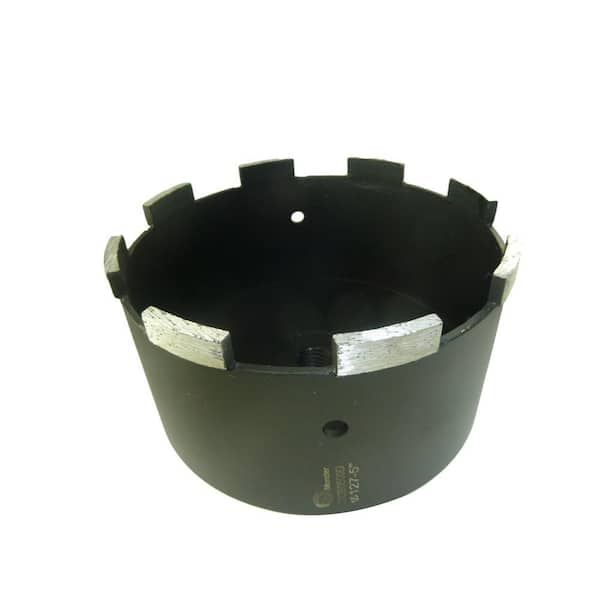

5 in. Diamond Core Bit with 5/8-11 Thread - Dry/Wet

$102.31
/piece
Apply Now
Pay $77.31 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

DRY Diamond Core Bits - Monster Brand are designed to meet the demands of more and more core drilling applications right on the job sites. These high-quality diamond core bits can be used both dry and wet on granite and concrete countertops. They can be used to drill porcelain tile very effectively if edge chipping is not a big concern.

Highlights

  • Sintered diamond technology for aggressive drilling of granite, marble and concrete
  • 5/8-11 arbor fits standard polishers and grinders
  • Maximum speed for the bits are 4500 RPM
  • Use water to cool down the bit is highly recommend to extend their lives
  • 3.5 in. in total length and 2.5 in. drilling depth
  • Both coring bits and smaller size non-coring bits have holes for center water cooling
  • Laser welded segments for diamond bits above 1 in.
  • Return Policy

Product Information

Internet # 314592175

Model # SCB0500D

Store SKU # 1005746872

Additional Resources

Shop All Monster

Specifications

Dimensions

Bit Diameter

5 in

Bit Length (in.)

3.5 in

Drilling Depth (in)

2.5

Shank Diameter

5/8 in

Details

Bit Material

Diamond

Connection End Type

5/8 in. - 11 in.

Drill Bit Type

Coring Bit

Drill Bit Type(s) Included

Coring Bit

Features

No Additional Features

Individual/Set

Individual

Material Application

Ceramic Tile, Concrete, Glass, Porcelain

Number of Pieces

1 Piece

Number of Pieces

1

Returnable

90-Day

Shank Style

Straight

Tools Product Type

Power Tool

Questions & Answers

9Questions
caret
Q:I purchased a 13 in. Carbide SDS-PLUS Masonry Core Bit Adapter and the 5" diamond core bit with 5/8-11 thread but the threads are not the same what size adapter do I need?
by|Oct 22, 2022
1 Answer
Answer This Question

A:  You will need an adapter with 5/8-11 male thread to SDS-Plus to use this core bit.

by|Oct 24, 2022
    caret
    Q:what type of arbor do you need
    by|Jun 29, 2021
    1 Answer
    Answer This Question

    A:  The bit has 5/8-11 threaded arbor and will work on a polisher or variable speed grinder. You can also get an adapter (5/8-11 to 3/8" or 1/2" shank) to use with conventional drill.

    by|Jun 30, 2021
      caret
      Q:Can this be used to drill stone?
      by|Aug 16, 2020
      1 Answer
      Answer This Question

      A:  Yes this diamond bit is designed for drilling granite and other types of hard stones as well as concrete. Drilling marble is not recommended since it may chip marble.

      by|Aug 17, 2020
        caret
        Q:Planning on tiling from top of bath vanity to the ceiling. It's a glass tile. Would this work to cut through the tile to create an opening for wiring the vanity light?
        by|Jun 15, 2020
        1 Answer
        Answer This Question

        A:  No this diamond bit won't work for drilling through glass tile. Use vacuum brazed diamond core drill bit instead.

        by|Jun 17, 2020
          Showing 1-4 of 9

          Customer Reviews

          4.3 out of 5

          • 4.3 out of 11 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-10 of 11 reviews
          It worked great, did the trick in a few minutes....
          It worked great, did the trick in a few minutes. HOWEVER, I was an idiot and didn’t read the description properly. Just looking at the picture, I assumed the skinny shaft went into my drill chuck and the larger end was the cutting head (like a hole saw). No, the skinny shaft is the cutting head and the larger end, lucky for me, is threaded and fit on my grinder. So, enough said :-)
          by
          • Verified Purchase
          Drilled well but one tang broke off on third hole It's...
          Drilled well but one tang broke off on third hole It's good that there is a lot of diamond material but it makes the difference ants too long and I think that's why it broke. Not a big hang up or anything.
          by
          Response from ToolocityApr 12, 2021
          Edward, sorry to hear that. Please contact us to replace the bit. Also please make sure that you do not drill with high speed (10000 rpm) in dry condition. This bit is designed to drill at lower speed (2000 - 4000 rpm) with a variable speed grinder or a polisher. Wet drilling is even better. Toolocity
          • Verified Purchase
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Drilled 42 holes at 2" deep per hole and it...
          Drilled 42 holes at 2" deep per hole and it still cuts like the day i got it.
          by
          • Verified Purchase
          1 found this review helpful
          5 Star Review
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          It’s OK - just be aware that it’s not 3/8”...
          It’s OK - just be aware that it’s not 3/8” as advertised, but 10mm. Immaterial for most applications, but if you need an actual 3/8” bit...look further.
          by
          Response from ToolocityMar 9, 2020
          Thanks for your comment. Yes the actual hole will be a little bigger than 3/8". Toolocity
          • Verified Purchase
          Worked well.
          Worked well.
          by
          • Verified Purchase
          • Recommended
          Held up to the heavy drilling in concrete that I needed it for. Has replaced the bit that we wer...
          Held up to the heavy drilling in concrete that I needed it for. Has replaced the bit that we were buying
          by
          • Verified Purchase
          • Recommended
          1 found this review helpful
          Perfect ...
          Perfect
          by
          • Verified Purchase
          Didn’t do the job I needed done ...
          Didn’t do the job I needed done
          by
          Response from ToolocityOct 29, 2019
          Sorry to hear that. Please let us know what you tried to drill through and we can definitely help. Our customer service number is 800-980-7808. Toolocity
          • Verified Purchase
          Showing 1-10 of 11 reviews
