Internet #100377423

Model # 1200BKIT

Store SKU #889570

0052063112107

12 in. x 12 in. Drainage Catch Basin, 2 Opening Kit

  • Drain heavy flows from lawn, landscaped areas, under downspouts
  • Connects to 3 in. and 4 in. drain pipes for a soil-tight fit
  • Includes 2-opening basin, grate, 2 outlet adapters, 1 plug
$ 51 36

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Drain heavy flows from lawn, landscaped areas, under downspouts
  • Connects to 3 in. and 4 in. drain pipes for a soil-tight fit
  • Includes 2-opening basin, grate, 2 outlet adapters, 1 plug
Trouble with stormwater flooding your lawn, patio, or landscaping? You’re not alone. For many homeowners, that means excess water isn’t able to properly drain. If the problem isn’t fixed, it can lead to a bigger problem—and costly damage to your property. Here’s how to fix it. Drain water where it doesn’t need to be with a stormwater catch basin. The 12 in. Square Catch Basin is ideal for handling heavy flows from lawns, landscaped areas, under downspouts, patios, and walkways. The catch basin, or catch drain, does more than “catch” water—as part of a complete drainage system, it works stealthily underground to direct water to connected drain pipes which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Kit includes a 2-opening basin made of polypropylene, 2 outlet adapters, and 1 plug which fits in either outlet adapter, and polyethylene grate to block leaves and debris from entering the drainage system. The storm drain with grate is rated for NDS Class B loads when properly installed. Built-in basin sump is easy to access and clean. Start now and find the drainage solution for your needs with the free NDS Home Drainage Center tool at ndspro.com/home-drainage. NDS, founded in 1972, is the preferred choice of professionals with proven products, tools, and expert support to help you get the job done right. Make your DIY project a success with NDS, the leader in stormwater management.
  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Manage heavy flows of water from lawns, landscaped areas, under downspouts, patios, and walkways
  • Connect to 3 in. & 4 in. Sewer and Drain, Single-Wall Corrugated & Triple-Wall Pipes & 4 in. Sch. 40 Pipe using included outlet adapters; additional outlet adapters sold separately for connections to 6 in. and 8 in. Pipes
  • 12 in. square grate has an open surface area of 53.1 sq. in. . 162 GPM flow rate for 12 in. square plastic grate
  • Rated for NDS Class B loads (up to 175 psi) when properly installed with grate—recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph

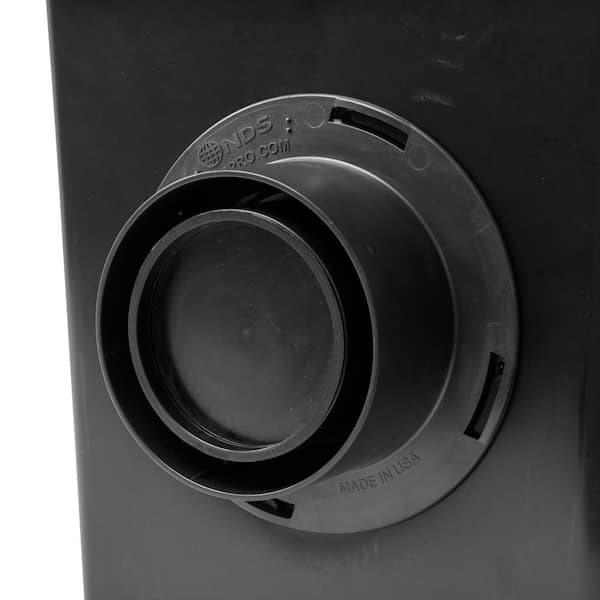

  • Outlet adapters provide a secure, soil-tight fit to pipe—no tape or glue required
  • Included plug fits inside outlet adapter and seals catch basin opening to direct flow of water

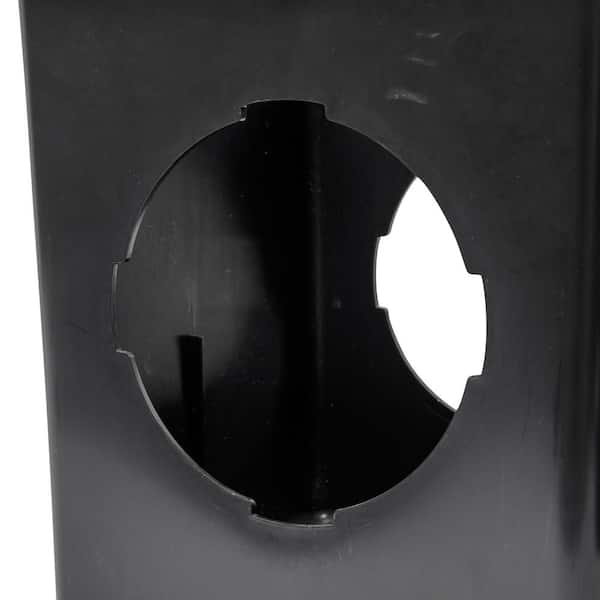

  • Keyed openings on basin lock outlet adapters in place
  • Kit includes 2-Opening 12 in. Catch Basin, 2 Outlet Adapters, 1 Plug, Plastic Drain Grate
  • The catch basin with grate, as part of a complete drainage system, connects to drain pipes to capture surface water and direct it away for proper release downstream
  • Lightweight and easy to install
  • Built-in sump area collects particles before they can enter the pipeline; easy to access for cleaning
  • Catch basin made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Grate made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream
  • Use with a Flo-Well® Dry Well System and EZ Drain™ Gravel-Free French Drain System to detain excess water and slowly release it into the ground
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
  • California residents see Prop 65 WARNINGS

Product Overview

  • Drain heavy flows from lawn, landscaped areas, under downspouts
  • Connects to 3 in. and 4 in. drain pipes for a soil-tight fit
  • Includes 2-opening basin, grate, 2 outlet adapters, 1 plug
Model #: 1200BKIT
Sku #: 889570
Internet #: 100377423

Trouble with stormwater flooding your lawn, patio, or landscaping? You’re not alone. For many homeowners, that means excess water isn’t able to properly drain. If the problem isn’t fixed, it can lead to a bigger problem—and costly damage to your property. Here’s how to fix it. Drain water where it doesn’t need to be with a stormwater catch basin. The 12 in. Square Catch Basin is ideal for handling heavy flows from lawns, landscaped areas, under downspouts, patios, and walkways. The catch basin, or catch drain, does more than “catch” water—as part of a complete drainage system, it works stealthily underground to direct water to connected drain pipes which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Kit includes a 2-opening basin made of polypropylene, 2 outlet adapters, and 1 plug which fits in either outlet adapter, and polyethylene grate to block leaves and debris from entering the drainage system. The storm drain with grate is rated for NDS Class B loads when properly installed. Built-in basin sump is easy to access and clean. Start now and find the drainage solution for your needs with the free NDS Home Drainage Center tool at ndspro.com/home-drainage. NDS, founded in 1972, is the preferred choice of professionals with proven products, tools, and expert support to help you get the job done right. Make your DIY project a success with NDS, the leader in stormwater management.

  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Manage heavy flows of water from lawns, landscaped areas, under downspouts, patios, and walkways
  • Connect to 3 in. & 4 in. Sewer and Drain, Single-Wall Corrugated & Triple-Wall Pipes & 4 in. Sch. 40 Pipe using included outlet adapters; additional outlet adapters sold separately for connections to 6 in. and 8 in. Pipes
  • 12 in. square grate has an open surface area of 53.1 sq. in. . 162 GPM flow rate for 12 in. square plastic grate
  • Rated for NDS Class B loads (up to 175 psi) when properly installed with grate—recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph
  • Outlet adapters provide a secure, soil-tight fit to pipe—no tape or glue required
  • Included plug fits inside outlet adapter and seals catch basin opening to direct flow of water
  • Keyed openings on basin lock outlet adapters in place
  • Kit includes 2-Opening 12 in. Catch Basin, 2 Outlet Adapters, 1 Plug, Plastic Drain Grate
  • The catch basin with grate, as part of a complete drainage system, connects to drain pipes to capture surface water and direct it away for proper release downstream
  • Lightweight and easy to install
  • Built-in sump area collects particles before they can enter the pipeline; easy to access for cleaning
  • Catch basin made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Grate made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream
  • Use with a Flo-Well® Dry Well System and EZ Drain™ Gravel-Free French Drain System to detain excess water and slowly release it into the ground
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Best Seller
Brand NDS NDS U.S. TRENCH DRAIN NDS
Name 6 in. x 4 in. Flo Well Surface Drain Inlet 12 in. x 12 in. Drainage Catch Basin, 2 Opening Kit 14 in. x 14 in. Storm Water Pit and Catch Basin for Modular Trench and Channel Drain Systems with Aluminum Grate 40-Gallon Flo Well Storm Drainage Dry Well
Price
$31.10
$51.36
$55.78
$75.66
Ratings (22) (93) (28) (130)
View Product View Product View Product View Product

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
6"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
12.38
Product Height (in.)
12
Product Width (in.)
12

Details

Color Family
Black
Color/Finish
Black/Matte
Grate Shape
Square
Material
Plastic
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
6.75lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
6"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
12.38
Product Height (in.)
12
Product Width (in.)
12

Details

Color Family
Black
Color/Finish
Black/Matte
Grate Shape
Square
Material
Plastic
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
6.75lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime

Questions & Answers

How do you take the top grill off to inspect and clean it?

Asked by: JMB
The box come sometimes with screws in it take the screws out and remove the grate
Answered by: customrain
Date published: 2019-04-24

Can you connect 4" sch 40 pvc without adapter?

Can you connect 4" sch 40 pvc without adapter?
Asked by: Walter
yes you can. I just installed one of these basins and in fact you can use a flexible rubber coupling to do what you are describing. I used a 4 in. x 4 in. Clay to Cast Iron PVC Flexible Coupling with Stainless Steel Clamps (also sold in HD's plumbing section). The only difference between a normal rubber coupling for pvc to pvc is the flared end on one side which fits perfectly over the flange on the basin and the other side on your sch. 40 pipe. Once tightened those clamps will never let go or rust (stainless steel). That coupling is meant for sewer so it works perfectly.
Answered by: Chris
Date published: 2020-02-19

Can I connect 4" SDR piping to this drain? Or do I need adaptors?

Can I connect 4" SDR piping to this drain? Or do I need adaptors?
Asked by: Northy
You can connect it but you need to use some kind of sealant to seal it up for example grey tape or something there of
Answered by: customrain
Date published: 2020-01-09

How many gpm of water can each unit handle? 9x9, 12x12, 18x18

How many gpm of water can each unit handle? 9x9, 12x12, 18x18
Asked by: twintwin79
depends on pipe size used and fall in the drain line. For a better answer, contact the manufacturer they have Great online support!!
Answered by: Jerry
Date published: 2019-04-17
