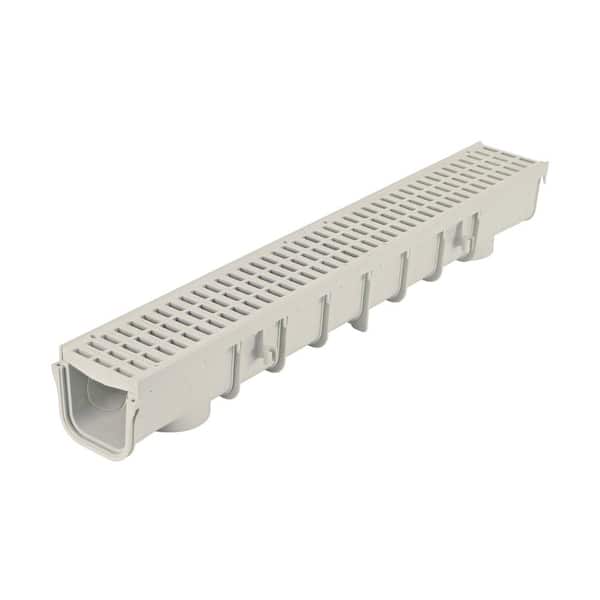

5 in. pro series channel drain Kit 5-1/2 in. x 39-3/8 in. Deep Channel, Gray Grates, End Caps/Outlet (6-Pack=19.7 ft.)
- Drain moderate flows from driveways, patios and walkways
- Built-in interlocking channel design
- Six kits with channel, grates, end cap/outlet and end cap
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
Keep your home clear of stormwater runoff and standing water with this 5-in. Pro Series channel drain kit. For an easy set-up, it offers a built-in interlocking channel design. A deep profile channel allows you to drain moderate flows.
Highlights
- Prevent mildew growth, concrete staining and costly structural damage by capturing and conveying excess surface water to drain pipe for release downstream
- 5-in. Pro Series channel drain kit with deep profile channel ideal for draining moderate flows from hardscape surfaces such as driveways, concrete and paver patios, courtyards, walkways and sports facilities
- Channel sections snap together with interlocking joints
- 23.5 sq. in. per feet 72 GPM per feet
- Rated for NDS class B loads (up to 175 psi) when properly installed with grate
- 5-in. Pro Series channel drain is 4-3/4 in. D and features a modular design with interlocking joints for a secure channel-to-channel connection
- Included end cap/outlet combined with integrated bottom outlet and side-outlet knockouts provide eight outlet options per channel section
- Channel-to-channel clips reduce motion during installation
- Multi-pack comes with six 5-in. pro series channel drain kits; each kit includes a polypropylene channel drain, polyethylene channel grates, end cap/outlet and end cap
- 5-in. Pro Series channel drain collects and conveys water to drain pipes for proper release downstream
- Modular design snaps together for longer runs
- Removable grates make it easy to clean debris from channel for maintenance
- 5-in. Pro Series channel made of polypropylene (PP), using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking; grates made of galvanized steel
- Create longer runs by connecting additional 5-in. Pro Series channel drains and channel drain grates (sold separately)
- Use with 5-in. Pro Series channel drain Qwik-Turn deep radius couplings to install drainage around areas with curved edges such as patios, fountains, pools and spas
- Onsite stormwater management protects the watershed downstream and limits excess runoff which can lead to negative impacts such as erosion, pollution and flooding
- NDS is the preferred choice of professionals, the largest supplier of channel drains in North America and the leader in stormwater management with proven products, tools and support to help you get the job done right
- Hardscapes Compatibility Chart
- Return Policy
Product Information
Specifications
Dimensions
Max. Compatible Pipe Size (In.) | 4" |
|---|---|
Min. Compatible Pipe Size (In.) | 3" |
Product Depth (in.) | 5.45 in |
Product Length (in.) | 39.375 in |
Product Width (in.) | 7 in |
Details
Color/Finish | Gray/Matte |
|---|---|
Compatible Area of Use | Driveway, Patio, Walkways, Yard |
Material | Plastic |
Maximum Working Temperature (F) | 140 |
Minimum working temperature (F) | 33 |
Pack Size | 6 |
Pipe or Fitting Product Type | Accessory |
Product Weight (lb.) | 5.61 lb |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it |
|---|
Questions & Answers
Can I set this in concrete and drive across it?
Yes, with the correct Load rating this can be achieved by the collar of concrete surround during install.
What are the outside dimensions
5 1/2" width x 39 3/8" long x 4 3/4" in height for the 5" channel drain
What glue holds sections together Im making a 200 ft run in a arena
for the 5" pro-series this would be 100% waterproof silicone to create more of a seal.
The specifications don't seem to include the depth of these channels. What is the depth?
This is the 5" Deep series channel drain system with the height of 4 3/4" we also have a shallow profile at 2 5/8" deep as well.
Is the channel drain pre-sloped?
This is a Neutral run system in that it is not a sloping channel drain system
Replacing 2" channel drain resting on sand with 5". It's tight to the house with pavers on sand on other side. I've read all you wrote about 4" concrete on both sides. Can I just fill with sand instead of concrete? Rebar req'd? No freezing in SW FL.
For the correct installation of the 5" Po-Series this would be installed into concrete, if you place as you have requested in sand around the Channel the water will not make it into the Channel drain system and up heave the channel over time with heavy rans
What hold the corrugated pipe to the drain?
Hi Julie - to connect the 4" single wall corrugated pipe to the 5" Pro Series channel, you'll need part number H1241 - adapter, connects to 3" & 4" single-wall corrugated pipe, you'll connect the corrugated pipe, creating a smooth connection and transition between the two.
can you drive over without damaging product
Hi larry, to drive over the 5" Pro Series channel drain system, it must be incased in concrete with at least 4" of concrete on either sid
Viewing 1-8 of 95
Customer Reviews
4.2 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |
|---|---|
Ideal for moderate flow drainage from driveways, patios, and walkways, ensuring efficient water removal with its deep profile channel. | Built for long-lasting durability and high performance in driveways, garages, and parking lots. |
Flow Capacity | |
72 GPM per feet | |
Channel Width | |
5 in. | 5.5 in. |
Load Class | |
NDS Class B (up to 175 psi) | 6600 pounds |
Grate Material | |
Galvanized steel | HDPE |
UV Resistance | |
Related Products
5 in. pro series channel drain Kit: 5-1/2 in. x 39-3/8 in. Deep Channel Gal Steel Grates End Caps/Outlet (6-Pk=19.7 ft.)
Keep your home clear of stormwater runoff and standing water with this 5-in. Pro Series channel drain kit. For an easy set-up, it offers a built-in interlocking channel design. A deep profile channel allows you to drain moderate flows.
3 in. Pro Series Channel Drain Kit 4-1/16 in. x 39-3/8 in. Channel, Gray Grate, End Caps/Outlet (10-Pack=32.8 ft.)
Eliminate standing water on hardscapes before it damages your property. The 3 in. Pro Series Channel Drain is ideal for draining moderate water flows flooding surfaces such as driveways, concrete and paver patios, courtyards and walkways. Multi-pack comes with ten 3 in. Pro Series Channel Drain Kits and each kit includes a 4-1/8 in. D polypropylene channel with bottom outlet, gray polyethylene grate, end cap/outlet and end cap. Modular design with interlocking joints for easy connections. Channels connect together for longer runs and can be cut to lengths as short as 4 in. using the saw guide found between the rib and stabilizing rib. Channel drains, also called trench drains, are long, narrow drains that collect and convey surface water to drain pipes, which carry the water downstream to discharge with a pop-up emitter or to percolate into the ground with a dry well or infiltration trench. NDS channel and trench drains are designed for durability, drainage and performance and are a proven alternative to traditional concrete drains. Find the best channel drain or trench drain system for your needs with the NDS Channel Drain Selector tool at website. Founded in 1972, NDS is the leader in stormwater management solutions, the preferred choice of professionals and the largest supplier of channel drains in North America. Our commitment is to provide proven products, tools and expert support to help you get the job done right.

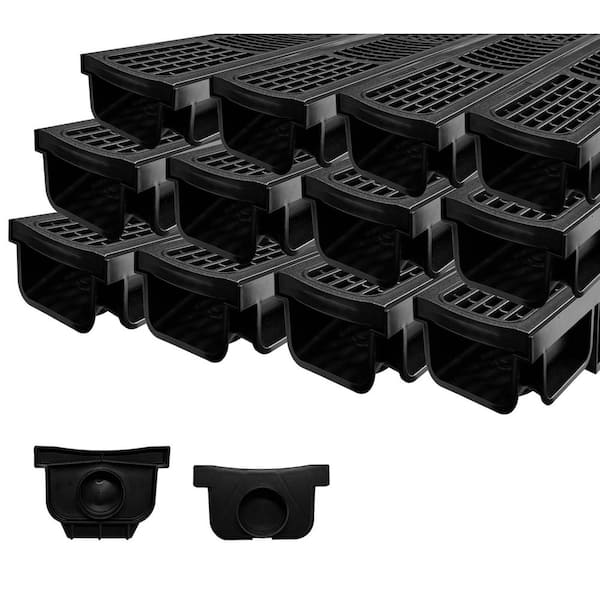

19.7 in. x 5.5 in. x 3.9 in. B Class Driveway Channel Drain with HDPE Grate Profile Trench Drain System (12-Pack)
