Internet #100377395

Model # 201

Store SKU #703338

0052063602011

6 in. Spee-D Double-Outlet Drainage Catch Basin

  • Connects to 3 in. and 4 in. drain pipes for a soil-tight fit
  • Prevents plants, yard, and home from sitting in pools of water
  • Drains light flows and standing water from lawns and downspouts
$ 10 21

Frequently Bought Together

Frequently Bought Together

Product Overview

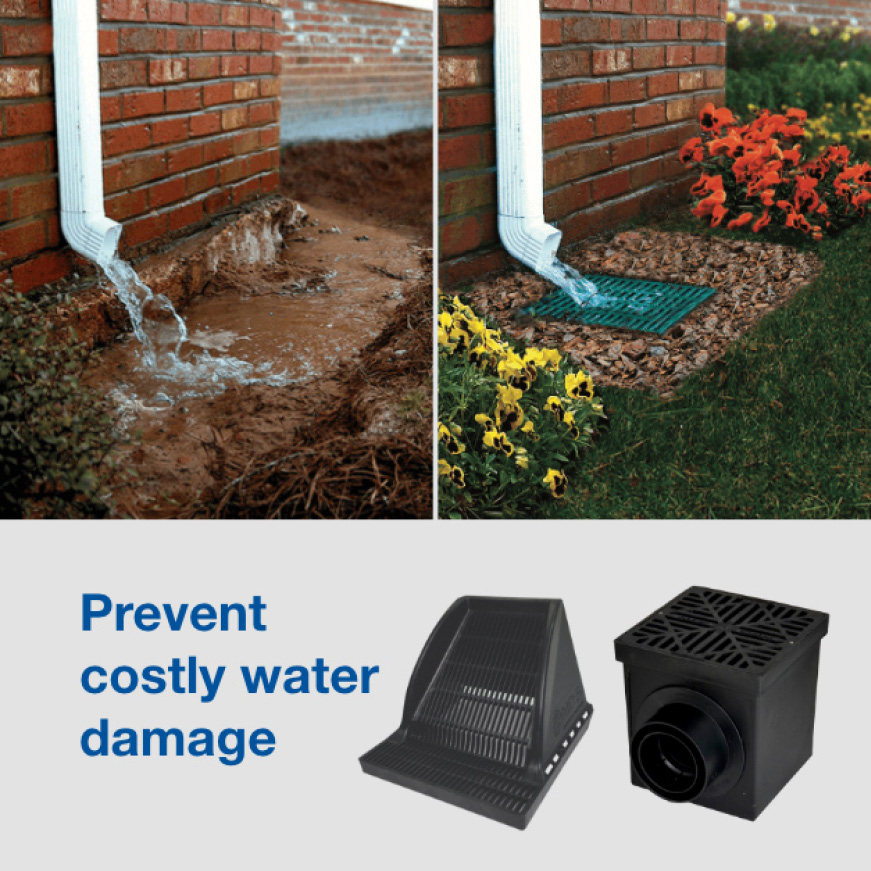

Drainage for Downspouts Problem and Solution

Drainage for downspouts

Use a Catch Basin and Downspout Defender Grate to move water away from your foundation.

Drainage for Driveways Problem and Solution

Drainage for driveways

Install a Channel Drain to eliminate slippery surfaces and wet garages.

Landscape Drainage Problem and Solution

Landscape drainage

An Atrium Grate will drain excess water that can kill plants.

Example Downspout Runoff Solution

Downspout Runoff Solutions

Catch basins connect to drain pipe and Pop-Up Emitters to discharge water. Use Flo-Well and EZ Drain to increase capacity.

Example Driveway Drainage Solution

Driveway Drainage Solutions

Channel drains connect to drain pipe and Pop-Up Emitters to discharge water. Use Flo-Well and EZ Drain to increase capacity.

Example Landscape Drainage Solutions

Landscape Drainage Solutions

Atrium Grates connect to drain pipe and Pop-Up Emitters to discharge water. Use Flo-Well and EZ Drain to increase capacity.

Example Drainage Solutions for Yard

Drainage Solutions for Yard

Capture water with Flo-Well and move it away with pipe. A Pop-Up Emitter discharges the water to a safe area.

Catch Basin

Catch Basin

Catch Basins capture water from under downspouts, in planter areas and lawns

Channel Drain

Channel Drain

Channel Drains capture water from driveways, patios and pool and spa areas

Flo-Well Engineered Dry Well

Flo-Well Engineered Dry Well

Captures and temporarily stores water slowly releasing it into the ground to eliminate flooding

EZ Drain

EZ Drain

A pre-engineered French drain solution with integrated pipe that captures and redirects water

Pop-Up Emitter

Pop-Up Emitter

Installed downstream, it allows for the release of water to safe areas

America’s #1 Channel Drain and Catch Basin

America’s #1 Channel Drain and Catch Basin

Trust NDS for proven, durable solutions that work, and support every step of the way

  • Connects to 3 in. and 4 in. drain pipes for a soil-tight fit
  • Prevents plants, yard, and home from sitting in pools of water
  • Drains light flows and standing water from lawns and downspouts
Got trouble with rainfall making a flooded, mucky mess of your yard? Stormwater that can’t properly drain can lead to soil erosion, seep into your home’s foundation, and cause other costly damage to property. Here’s how to prevent you can prevent it. Collect excess stormwater from your lawn, landscaped areas, patios, walkways, and other flood-prone areas with the two-outlet Spee-D® Catch Basin. The two-outlet catch basin can be used as part of a series of connected catch basins positioned along the drainage line. The catch basin directs water to drain pipes which then carry the water to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Two basin outlets each connect to 3 in. & 4 in. single-wall corrugated, sewer and drain, triple-wall pipe & 4 in. Sch. 40 pipe for a secure, soil-tight fit. Made of polystyrene treated with UV inhibitors. Easy access to the sump area makes it a breeze to clean out. Each NDS catch basin outlet has a 68 GPM flow capacity. Load rating based on type of grate installed (grate sold separately). Find the right catch basin product for your project with the free NDS Home Drainage Center tool at ndspro.com/home-drainage. NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.
  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Ideal for collecting excess water from lawns, downspouts, and landscaping
  • Connects to 3 in. & 4 in. Sewer and Drain Pipes, 3 in. & 4 in. Single-Wall Corrugated Pipes, 3 in. & 4 in. Triple-Wall Pipes, & 4 in. Sch. 40 Pipe
  • 68 GPM flow rate per outlet
  • Load rating based on type of grate installed
  • Two-outlet design with outlets at 180° can be used as part of a series of connected catch basins
  • Each outlet provides a soil-tight, secure pipe fit—no tape or glue required
  • Comes with one 2-Outlet 6 in. Round Spee-D Catch Basin Drain
  • As part of a complete drainage system, the catch basin with grate captures surface water and directs it to connected drain pipes for proper release downstream
  • Lightweight and easy to install
  • Built-in sump area collects particles before they can enter the pipeline; easy to access for cleaning
  • Catch basin made of high-impact polystyrene (HIPS) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Use with a round, square, or atrium grate to stop debris from clogging your drainage system
  • Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream. Use with a Flo-Well® Dry Well System and EZ Drain™ Gravel-Free French Drain System to detain excess water and slowly release it into the ground
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
  • California residents see Prop 65 WARNINGS

Product Overview

  • Connects to 3 in. and 4 in. drain pipes for a soil-tight fit
  • Prevents plants, yard, and home from sitting in pools of water
  • Drains light flows and standing water from lawns and downspouts
Model #: 201
Sku #: 703338
Internet #: 100377395

Got trouble with rainfall making a flooded, mucky mess of your yard? Stormwater that can’t properly drain can lead to soil erosion, seep into your home’s foundation, and cause other costly damage to property. Here’s how to prevent you can prevent it. Collect excess stormwater from your lawn, landscaped areas, patios, walkways, and other flood-prone areas with the two-outlet Spee-D® Catch Basin. The two-outlet catch basin can be used as part of a series of connected catch basins positioned along the drainage line. The catch basin directs water to drain pipes which then carry the water to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Two basin outlets each connect to 3 in. & 4 in. single-wall corrugated, sewer and drain, triple-wall pipe & 4 in. Sch. 40 pipe for a secure, soil-tight fit. Made of polystyrene treated with UV inhibitors. Easy access to the sump area makes it a breeze to clean out. Each NDS catch basin outlet has a 68 GPM flow capacity. Load rating based on type of grate installed (grate sold separately). Find the right catch basin product for your project with the free NDS Home Drainage Center tool at ndspro.com/home-drainage. NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.

  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Ideal for collecting excess water from lawns, downspouts, and landscaping
  • Connects to 3 in. & 4 in. Sewer and Drain Pipes, 3 in. & 4 in. Single-Wall Corrugated Pipes, 3 in. & 4 in. Triple-Wall Pipes, & 4 in. Sch. 40 Pipe
  • 68 GPM flow rate per outlet
  • Load rating based on type of grate installed
  • Two-outlet design with outlets at 180° can be used as part of a series of connected catch basins
  • Each outlet provides a soil-tight, secure pipe fit—no tape or glue required
  • Comes with one 2-Outlet 6 in. Round Spee-D Catch Basin Drain
  • As part of a complete drainage system, the catch basin with grate captures surface water and directs it to connected drain pipes for proper release downstream
  • Lightweight and easy to install
  • Built-in sump area collects particles before they can enter the pipeline; easy to access for cleaning
  • Catch basin made of high-impact polystyrene (HIPS) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Use with a round, square, or atrium grate to stop debris from clogging your drainage system
  • Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream. Use with a Flo-Well® Dry Well System and EZ Drain™ Gravel-Free French Drain System to detain excess water and slowly release it into the ground
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand NDS NDS NDS NDS
Name 6 in. Spee-D Double-Outlet Drainage Catch Basin 9 in. Plastic Square Drainage Catch Basin Grate in Black 7 ft. x 2 ft. Flo Well Filter Fabric Wrap 9 in. Plastic Square Low Profile Drainage Catch Basin with Grate in Green
Price
$10.21
$14.57
$14.68
$19.97
Ratings (45) (12) (40) (10)
Grate Shape Round Square Rectangle Square
View Product View Product View Product View Product

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
9
Product Height (in.)
8.38
Product Width (in.)
6.25

Details

Color Family
Black
Color/Finish
Black/Matte
Compatible Area of Use
Downspout Runoff,Planter Areas,Planter Beds,Yard
Grate Shape
Round
Material
Plastic
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
1.6lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
9
Product Height (in.)
8.38
Product Width (in.)
6.25

Details

Color Family
Black
Color/Finish
Black/Matte
Compatible Area of Use
Downspout Runoff,Planter Areas,Planter Beds,Yard
Grate Shape
Round
Material
Plastic
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
1.6lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime

Questions & Answers

Can i connect this to a perforated type drain pipe or does it connect only to a solid pvc pipe?

Asked by: Rish
This will connect to both 3" and 4" pipe. Ideally SDR 35 PVC Pipe. It doesn't differentiate between perforated pipe and solid pipe. The fittings are press fitted, not glued.
Answered by: HomeDepotCustomer
Date published: 2020-02-11

can you drive on it?

can you drive on it?
Asked by: Gee
I would not recommend allowing vehicles to drive directly on the catch basin. See a civil engineer for exact allowance, but SDR 35 pipe buried with 12" of appropriate cover should be strong enough for typical vehicular traffic, just not sizable delivery trucks or dump trucks. If you are engineering something, you'll need to contact NDS for Load Allowances.
Answered by: HomeDepotCustomer
Date published: 2020-02-11

Is the bottom of the basin closed off?

Is the bottom of the basin closed off?
Asked by: Al
Yes, the bottom is closed off.
Answered by: Taenler
Date published: 2019-08-27

Can this be connected to 1.5" PVC pipe?

Hi - Are there connectors to enable this to be connected to 1.5" PVC pipe?
Asked by: jules
The receptacles in the horizontal plane can accept both 3" and 4" pipes. The top receptacle is for 6" pipe. To get a 1.5" pipe into this catch basin you'll need to make special adaptations/alterations. I do not know if NDS makes such an adaptor, but you might call them.
Answered by: HomeDepotCustomer
Date published: 2020-02-11
