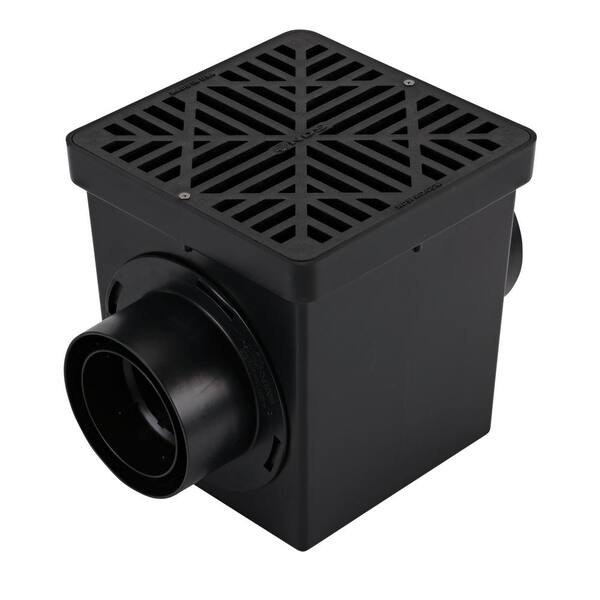

9 in. Square Catch Basin Drain Kit 2-Opening Basin, Black Plastic Grate, 2 Outlet Adapters and 1 Outlet Plug (4-Pack)

(196)Questions & Answers (40)
Includes 4 units ($38.75 /unit)
$155.00 /case
Apply Now
Save up to $100 on your qualifying purchase info
Apply for a Home Depot Consumer Card
  • Drain stormwater away before it causes property damage
  • Connects to 3 in. and 4 in. drain pipes for a soil-tight fit
  • Four kits with catch basin, grate, outlet adapters and plug
  • View More Details
caret

Product Details

Protect your property from stormwater runoff and standing water with this 9-in. square catch basin drain kit. When you add this catch basin drain to your drainage system, you can manage heavy waterflow from your lawn, landscaped area, downspout, patio or walkway. It includes four catch basin kits with a grate, outlet adapters and a plug. For convenient access and cleaning, it features a built-in basin sump.
  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Manage moderate flows of water from lawns, landscaped areas, under downspouts, patios and walkways
  • Connects to 3 in. and 4-in. sewer and drain, single-wall corrugated and triple-wall pipes and 4-in. Sch. 40 pipe with included outlet adapters
  • 39.5 sq. in. 121 GPM flow rate
  • Rated for NDS class B loads (up to 175 psi) when properly installed with grate
  • Keyed side openings lock outlet adapters in place
  • Four weep hole knockouts on bottom to eliminate stagnant water
  • Outlet adapters provide a secure, soil-tight fit to pipe
  • Multi-pack comes with four catch basin kits; each kit includes a 9-in. catch basin with two side openings and cutout guide for bottom opening, two outlet adapters, one plug and drain grate in black plastic
  • Catch basin and grate connect to drain pipes to capture surface water and direct it away for proper release downstream
  • Lightweight and easy to install
  • Built-in sump area collects particles before they can enter the pipeline
  • Catch basin made of polypropylene (PP); using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking; grate made of high-density polyethylene (HDPE); using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
  • Use with pop-up drainage emitter to discharge collected water downstream
  • Use with flo-well dry well system and EZ drain gravel-free French drain system to detain excess water and slowly release it into the ground
  • Onsite stormwater management protects the watershed downstream and limits excess runoff which can lead to negative impacts such as erosion, pollution and flooding
  • NDS is the preferred choice of professionals, the largest supplier of channel drains in North America and the leader in stormwater management with proven products, tools and support to help you get the job done right
  • Hardscapes Compatibility Chart
  • Return Policy
  • California residents
caret

Specifications

caret

Questions & Answers

40Questions
caret
Q:I am running 4 in schedule 40 pvc pipe what do I need to connect this basin to the pipe
by|Mar 27, 2023
1 Answer
Answer This Question

A:  Hi Irvin, you won't need additional fittings to make the connection.

by|Mar 28, 2023
    caret
    Q:Should I put rock or sand or a combination of both under the catch basin
    by|Sep 4, 2022
    1 Answer
    Answer This Question

    A:  Hi Samf, NDS recommends to use gravel not sad. Dig a hole deep enough for overall height of basin plus 4”-6” for the a bed of ½” to ¾” compacted gravel.

    by|Sep 6, 2022
      caret
      Q:Why does this have 2 openings for pipes?
      by|Jul 21, 2022
      2 Answers
      Answer This Question

      A:  Kell - Good afternoon. This #900BKIT catch basin has two openings to allow for an inlet connection and an outlet connection.

      by|Jul 22, 2022

        A:  This can either be a terminal sump, box, using one hole, or an in- line box, one of several , thus requiring connection pipe to the next box in the line.

        by|Jul 25, 2022
          caret
          Q:First time putting in a French drain I want to use corrugated perforated pipe. Are these drain catches compatible with corrugated perforated 4 inch pipe or do I need an adapter? Thank you
          by|Jul 16, 2022
          2 Answers
          Answer This Question

          A:  No adapter needed. It will connect.

          by|Jul 18, 2022

            A:  Hello Jam, Yes, these are able to be connected to 4"Corrugated pipe with the correct NDS part#1243 outlet adapter on the 9" Catch Basin

            by|Aug 15, 2022
              Showing 1-4 of 40
              caret

              Customer Reviews

              4.5 out of 5
              (196)
              • 4.5
                out of 196 reviews
              • 85%recommend this product
              Filter by:
              Showing 1-10 of 196 reviews
              Dec 8, 2021
              Just Right!
              Bought a couple of these to use in a yard drainage project and they worked out perfectly. I used them in areas where I didn't want a larger drainage catch. They're easy to install.
              by
                • Recommended
                Jul 1, 2019
                I've installed these catch basins for years. These 9x9 catch basins are easy to install and they ...
                I've installed these catch basins for years. These 9x9 catch basins are easy to install and they include almost everything you need except the pipe. This basin comes with the cap in case you only want water to flow out of one side. The grate comes with this catch basin, unlike the 6 inch round version. The grate on this unit is secured to by 2 small phillips head screws. This drain box is really sturdy and appears to be made from a plastic that is similar in weight to the NDS grate covers.
                by
                  • Recommended
                  May 7, 2019
                  Did it myself works good.
                  Did it myself works good.
                  by
                  • Verified Purchase
                  • Recommended
                  Jul 10, 2018
                  I don't have anything to compare it to so I'll just say that the install of this was great. I rea...
                  I don't have anything to compare it to so I'll just say that the install of this was great. I read the instructions (recommended) and installed it with one end plugged and the other open. The 4" pipe is a looser sort of fit but it only a drain line. I guess the key to having a basin work properly is to prepare your job correctly, have the right pitch for the drain line, set it at the right height, use gravel under the basin so it doesn't settle and clean it out every so often.
                  by
                  • Verified Purchase
                  • Recommended
                  Dec 19, 2017
                  Installed 4 of this catch basins for a customer in the grass area due to flooding during heavy ra...
                  Installed 4 of this catch basins for a customer in the grass area due to flooding during heavy rains, They worked great customer is very satisfied with the catch basins. heavy duty plastic with screwed on grate cover. Yes I would recommend.
                  by
                  • Verified Purchase
                  Oct 31, 2015
                  A very durable and good catch basin for drainage.
                  This is a very durable and good catch basin for drainage. You can connect 4" PVC pipes to this basin. It comes with 2 each snap on connectors, with the option of keeping one as a 4" plug, if you are using only one side. It also has a very durable grate with 2 stainless steel screws for easy removal for cleaning.
                  by
                  • DIY
                  • Recommended
                  9 found this review helpful
                  Mar 29, 2023
                  by
                  • Verified Purchase
                  Mar 15, 2023
                  by
                  • Verified Purchase
                  Mar 15, 2023
                  by
                  • Verified Purchase
                  Feb 11, 2023
                  THESE NEW ONES LEAK
                  THESE NDS LEAKED LIKE A SIEVE AND I HAD TO RETURN ONE AND THE OTHER TAPE UP
                  by
                  Response from THD_CSOFeb 20, 2023
                  Dear Valued Home Depot Customer, We have reached out to the manufacturer and their reply is,Thank you for sharing your experience with our product. Can you provide more information as to where you're experiencing the leak? Please contact our technical support team at (888) 825-4716 so we can resolve your issue as well as help us figure out what is happening with this part. Thank you!
                  • Verified Purchase
