Internet #100342868

Model #C4885HD2

Store SKU #605122

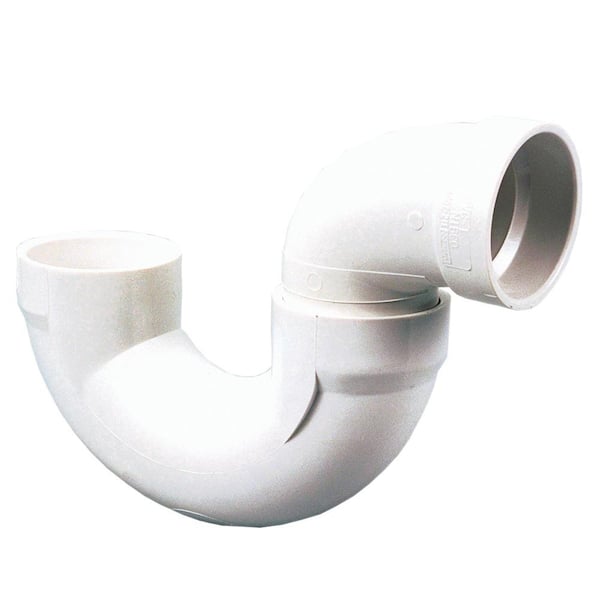

2 in. PVC DWV Hub x Hub P-Trap Fitting

  • Helps prevent sewer gas from escaping
  • Can be used under the discharge of a drain or plumbing fixture
  • Features a durable PVC construction for a lasting use
  • See More Details

Frequently Bought Together

+
+
Price:
$410

Product Overview

The NIBCO 2 in. PVC DWV Hub x Hub P-Trap requires a primer before cementing. The PVC DWV P-Trap features a hub x hub connection and provides a water seal so that wastewater will automatically be trapped in the arc of the configuration, thereby preventing unwanted gases from entering the household environment. Polyvinyl chloride (PVC) is the most frequently specified of all thermoplastic materials because of its light weight, durability, and cost-effectiveness.
  • PVC requires a primer before cementing
  • Use under the discharge of a plumbing fixture or drain to help prevent sewer gas from escaping
  • For non-pressurized sanitary systems
  • Hub x hub solvent-welded connections
  • Maximum working pressure of 5 psi
  • Includes union
  • NSF/ANSI standard 14
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

2 in. x 2 in. DWV Flexible PVC Coupling
current product
2 in. PVC DWV Hub x Hub P-Trap Fitting
3 in. x 3 in. x 2 in. PVC DWV All Hub Wye Fitting3 in. x 3 in. x 2 in. PVC DWV All Hub Sanitary Tee Fitting
BrandFerncoNIBCONIBCONIBCO
Name2 in. x 2 in. DWV Flexible PVC Coupling2 in. PVC DWV Hub x Hub P-Trap Fitting3 in. x 3 in. x 2 in. PVC DWV All Hub Wye Fitting3 in. x 3 in. x 2 in. PVC DWV All Hub Sanitary Tee Fitting
Price
$329
$410
$417
$597
Ratings
(372)
(12)
(8)
(134)
Fitting 1 size2"2"3"3"
Fitting or Connector TypeCouplingTrapTeeTee
Schedule TypeSchedule 40Schedule DWVSchedule DWVSchedule DWV
ConnectivityCompressionSolvent CementedSolvent CementedSolvent Cemented
Pack Size1111
FeaturesCorrosion Resistant,Flexible,Lead Free,Removable,UV Resistant,Underground Rated,Underground UseLead FreeLead Free,Side InletLead Free
Application SewageNon-Potable Water,SewageNon-Potable Water,Sewage
DWV DWVDWVDWV
View ProductView ProductView ProductView Product

Specifications

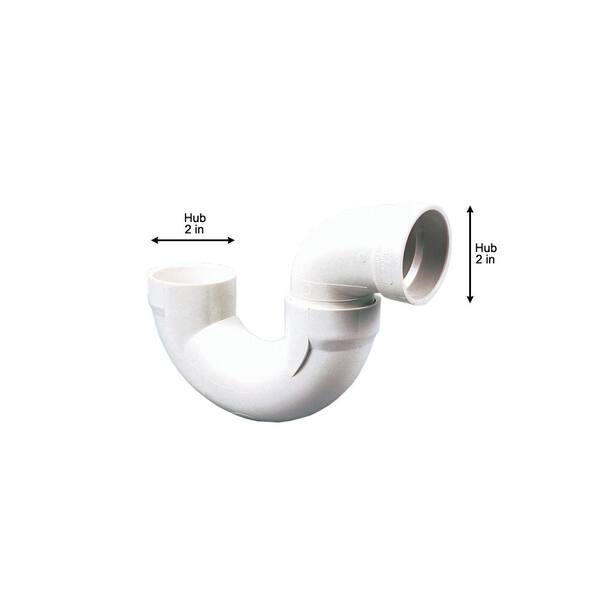

Dimensions

Double Fitting Size
2" x 2"
Fitting 1 size
2"
Fitting 2 size
2"
Product Depth (in.)
9.31
Product Height (in.)
7.06
Product Width (in.)
2.73 in

Details

Application
Sewage
Color Family
White
Color/Finish
White
Compatible Pipe Material
PVC
Connection 1
Hub
Connection 2
Hub
Connectivity
Solvent Cemented
DWV
DWV
Features
Lead Free
Fitting or Connector Type
Trap
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
5
Maximum Working Temperature (F)
140
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.949
Reducing Fitting
No
Returnable
180-Day
Schedule Type
Schedule DWV
Trap style
P-trap

Warranty / Certifications

Manufacturer Warranty
NIBCO INC. warrants each NIBCO plumbing plastic fitting (including plumbing valves) to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase.

Questions & Answers

6Questions10Answers

is teflon tape recommended? is a nylon washer recommended?

Asked by tom August 20, 2019
3
Answers

When assembling the swivel joint of this trap it is advantageous to use some type of sealant on the threads of that connection. Teflon tape would work, if applied properly, but I prefer a liquid thread sealant (RectorSeal #5) when making the final connection between the U=bend and ell.

Will this fit in 2 x 8 joist

Asked by Jay April 10, 2016
2
Answers

it will very tight. I'm in the same situation. I have been trying to find a 2 inch p trap that will fit better. 2x8s are 7.25 and this is 7.03 inches. it will fit but very close. anyone else find one that will work?

Is there a slip joint washer this size?

Asked by JH April 4, 2018
2
Answers

Part # C4895HD2 which is the item pictured but not the part number referenced does not require a slip ring.

Will a 11/4” to 2” indirect gap vent drain through the trap without backing up?

Asked by Scott March 20, 2018
1
Answer

Thank you for your inquiry on the 2 in. PVC DWV Hub x Hub P-Trap. In response, it would depend on any backpressure and the media of the system. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

description

Asked by tjk March 30, 2016
1
Answer

Thank you for your inquiry on the 2 in. PVC DWV Hub x Hub P-Trap. Yes that will have the two parts shown in the picture and they will need to be glued during installation. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

Do you have 4" PVC DWV Hub x Hub P-Trap

Asked by VincePW1 December 21, 2017
1
Answer

Hello VincePW1, 4 in. PVC DWV H x H Solvent Weld P-Trap Internet #205799574- The PVC DWV P-Trap features a hub x hub connection. Charlotte of the Home Depot Community.
