Internet #305599428

Model # DCR41061203KNK

0767706137040

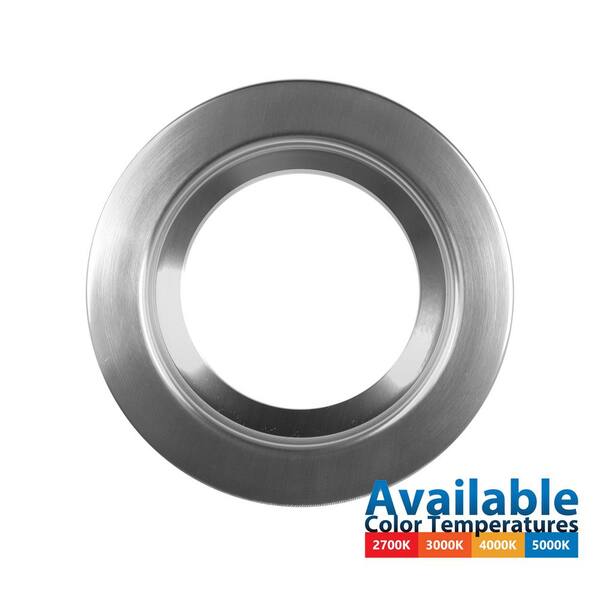

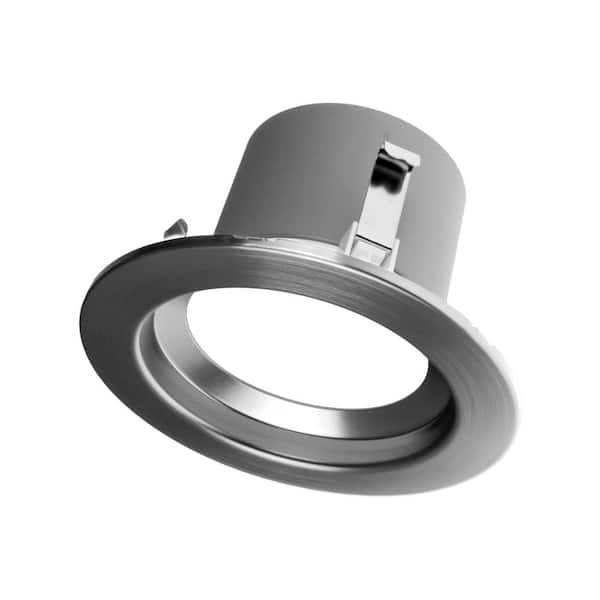

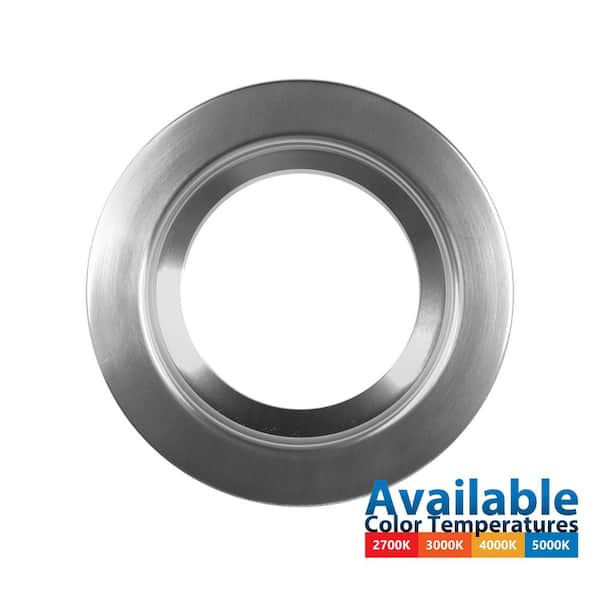

4 in. Downlight Nickel Integrated LED Recessed Trim Retrofit Light

$ 28 91
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The NICOR DCR4 is the latest dimmable 4 in. recessed LED retrofit downlight constructed with a polymer housing and trim that's ideal for standard 4 in. remodel and new construction housings. This ENERGY STAR rated LED retrofit light features a nickel finish and is the perfect solution for replacing existing recessed trims and light bulbs with the latest energy efficient LED fixture. This fully dimmable recessed downlight is designed for easy plug and play installation. It's as easy as screwing in a light bulb, literally. The DCR4 also comes with an quick connect adapter to work with newer LED housings. There's no special wiring required for the dimmer and installation can be done right out of the box. There are no other parts or pieces to buy. It's that simple. In terms of quality, the DCR4 was designed to be energy efficient without sacrificing the quality of construction or LED lighting. The DCR4 produces over 640-Lumens of light while using only 8.4-Watt of energy. The product lifespan is rated for at least 54,000-hours, which comes out to 18.5-years if used every day for 8-hours. On the Color Rendering Index (CRI) scale, the DCR4 scores a 91 with an astonishing R9 value of over 53. This means that under this light, your reds will be redder and your blues will be bluer regardless of the color temperature. The DCR4 is also available in 4 color finishes: Aged Copper, Black, Nickel and White. The DCR4 is backed by an industry leading 5-Year limited warranty.
  • Brightness: 663-Lumens (105° beam angle)
  • Color temperature: 3000K emits soft white light for a relaxing atmosphere
  • ENERGY STAR rated: uses only 8.4-Watt (equivalent to a 75-Watt bulb)
  • Dimmable to 10% with standard LED dimmers (see specification sheet for recommended dimmers)
  • Designed to be compatible with any 4 in. recessed housing, but works best with NICOR's 19000A-LED-ID or 19001AR-LED-ID
  • Utilizes a friction clip mounting system to stay securely mounted
  • Low-profile construction with integrated driver allows for use in shallow housings
  • Quick and easy installation with quick connect or Edison base adapter, both included
  • Lifespan: 18.5-years (based on 8-hours of use per day, everyday)
  • Wet location rated: for use in showers or outdoors
  • Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
  • Title 24 compliant: high performance LED lighting with CRI rating over 91 CRI and R9 over 54
  • Polymer trim to prevent dents and scratches
  • Polystyrene diffuser creates uniform light distribution that reduces glare and spotting
  • Available in four trim finishes: aged copper, black, nickel and white
  • Uses standard 120-Volt household voltage
  • ETL Classified, Title 24 compliant, FCC compliant, CEC compliant and wet location rated
  • Protected by NICOR's 5-year limited warranty
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs

Product Overview

Model #: DCR41061203KNK
Internet #: 305599428

The NICOR DCR4 is the latest dimmable 4 in. recessed LED retrofit downlight constructed with a polymer housing and trim that's ideal for standard 4 in. remodel and new construction housings. This ENERGY STAR rated LED retrofit light features a nickel finish and is the perfect solution for replacing existing recessed trims and light bulbs with the latest energy efficient LED fixture. This fully dimmable recessed downlight is designed for easy plug and play installation. It's as easy as screwing in a light bulb, literally. The DCR4 also comes with an quick connect adapter to work with newer LED housings. There's no special wiring required for the dimmer and installation can be done right out of the box. There are no other parts or pieces to buy. It's that simple. In terms of quality, the DCR4 was designed to be energy efficient without sacrificing the quality of construction or LED lighting. The DCR4 produces over 640-Lumens of light while using only 8.4-Watt of energy. The product lifespan is rated for at least 54,000-hours, which comes out to 18.5-years if used every day for 8-hours. On the Color Rendering Index (CRI) scale, the DCR4 scores a 91 with an astonishing R9 value of over 53. This means that under this light, your reds will be redder and your blues will be bluer regardless of the color temperature. The DCR4 is also available in 4 color finishes: Aged Copper, Black, Nickel and White. The DCR4 is backed by an industry leading 5-Year limited warranty.

  • Brightness: 663-Lumens (105° beam angle)
  • Color temperature: 3000K emits soft white light for a relaxing atmosphere
  • ENERGY STAR rated: uses only 8.4-Watt (equivalent to a 75-Watt bulb)
  • Dimmable to 10% with standard LED dimmers (see specification sheet for recommended dimmers)
  • Designed to be compatible with any 4 in. recessed housing, but works best with NICOR's 19000A-LED-ID or 19001AR-LED-ID
  • Utilizes a friction clip mounting system to stay securely mounted
  • Low-profile construction with integrated driver allows for use in shallow housings
  • Quick and easy installation with quick connect or Edison base adapter, both included
  • Lifespan: 18.5-years (based on 8-hours of use per day, everyday)
  • Wet location rated: for use in showers or outdoors
  • Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
  • Title 24 compliant: high performance LED lighting with CRI rating over 91 CRI and R9 over 54
  • Polymer trim to prevent dents and scratches
  • Polystyrene diffuser creates uniform light distribution that reduces glare and spotting
  • Available in four trim finishes: aged copper, black, nickel and white
  • Uses standard 120-Volt household voltage
  • ETL Classified, Title 24 compliant, FCC compliant, CEC compliant and wet location rated
  • Protected by NICOR's 5-year limited warranty
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual Aperture Width (in.)
4
Assembled Depth (in.)
5 in
Assembled Height (in.)
3.13 in
Assembled Width (in.)
5 in
Housing Height (in.)
3
Maximum Cutout Size (in.)
4.25
Nominal Lens Aperture Size
4 in.
Size
4 in.
Trim Size (Width)
4 in.

Details

Actual Color Temperature (K)
3000
Actual Color Temperature (K) - Color Temperature
3000K - Soft White
Adjustable Lamp Head
No
Color Family
Nickel
Color Rendering Index (CRI)
91
Color Temperature
Soft White
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Damp Rated,Wet Rated
Features
Dimmable,Retrofit,Shallow
Fixture Color/Finish
Nickel
Fixture Material
Polymer
Fixture finish family
Silver metallic
IC Rating
Non-IC Rated
Included
Light Bulb(s),Remodel Clips,Wiring Connectors
Indoor/Outdoor
Indoor,Outdoor
Integrated LED Type
Standard
Light Bulb Type Included
Integrated LED
Lumens
663
Maximum Bulb Wattage
8.4
New Construction or Remodel
New Construction,Remodel
Package Quantity
1
Power Options
Plug-in
Product Weight (lb.)
0.45lb
Replaceable LED Module
No
Returnable
90-Day
Style
Classic,Cottage
Trim Type
Decorative
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
ETL Classified,FCC Listed
Manufacturer Warranty
5 Year Limited Warranty

Specifications

Dimensions

Actual Aperture Width (in.)
4
Assembled Depth (in.)
5 in
Assembled Height (in.)
3.13 in
Assembled Width (in.)
5 in
Housing Height (in.)
3
Maximum Cutout Size (in.)
4.25
Nominal Lens Aperture Size
4 in.
Size
4 in.
Trim Size (Width)
4 in.

Details

Actual Color Temperature (K)
3000
Actual Color Temperature (K) - Color Temperature
3000K - Soft White
Adjustable Lamp Head
No
Color Family
Nickel
Color Rendering Index (CRI)
91
Color Temperature
Soft White
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Damp Rated,Wet Rated
Features
Dimmable,Retrofit,Shallow
Fixture Color/Finish
Nickel
Fixture Material
Polymer
Fixture finish family
Silver metallic
IC Rating
Non-IC Rated
Included
Light Bulb(s),Remodel Clips,Wiring Connectors
Indoor/Outdoor
Indoor,Outdoor
Integrated LED Type
Standard
Light Bulb Type Included
Integrated LED
Lumens
663
Maximum Bulb Wattage
8.4
New Construction or Remodel
New Construction,Remodel
Package Quantity
1
Power Options
Plug-in
Product Weight (lb.)
0.45lb
Replaceable LED Module
No
Returnable
90-Day
Style
Classic,Cottage
Trim Type
Decorative
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
ETL Classified,FCC Listed
Manufacturer Warranty
5 Year Limited Warranty
