Internet #308635358

Model # DLE421205KRDWH

0767706136845

NICOR

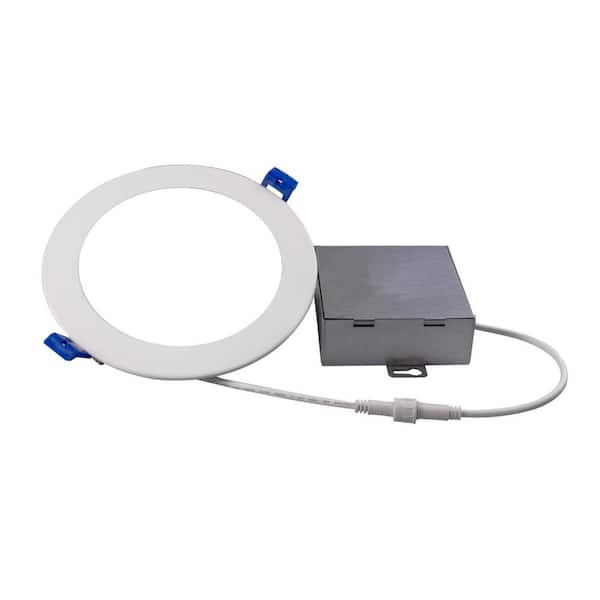

4 in. Round 5000K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit

$ 21 67
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The DLE4 Edge Lit 4 in. Round LED Downlight creates an attractive visual aesthetic with a low profile that's incredibly easy to install. The edge-lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it a practical, economical and energy efficient solution with high performance. This high-performance downlight features 96 CRI, with an R9 value exceeding 50, making the DLE4 among the highest rated light fixtures in terms of light quality. Installation does not require a recessed housing, only a simple 4.25 in. in diameter cut-out in the ceiling using the provided template. The ultra-thin fixture depth (less than 1 in.) and off-board driver (included) allows for a more flexible installation and increased lifetime with superior heat management. The DLE4 features adjustable spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding light in tight spaces such as living rooms, hallways, bathrooms, basements, entryways, porches and utility closets just got easier. The DLE4 is Title 24 Compliant (except 5000K version), ENERGY STAR rated, Insulation Contact rated (IC-rated), Airtight, Damp-location rated and is protected by NICOR's 5-Year Limited Warranty.
  • Includes LED downlight module and off-board driver
  • Includes 4.25 in. cut-out template
  • Installs directly into the ceiling, no housing or junction box needed
  • 5000K color temperature
  • 764 Lumens
  • 8.3-Watt
  • 120-Volt AC
  • Dimmable down to 5% using standard LED dimmers
  • Lifetime rated for over 54,000 hours
  • Insulation contact rated (IC-rated)
  • Aged copper, black and nickel faceplates sold separately
  • ENERGY STAR rated, airtight and damp-location rated
  • 5-year limited warranty
  • Click here for more information on Electronic Recycling Programs

Product Overview

Model #: DLE421205KRDWH
Internet #: 308635358

The DLE4 Edge Lit 4 in. Round LED Downlight creates an attractive visual aesthetic with a low profile that's incredibly easy to install. The edge-lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it a practical, economical and energy efficient solution with high performance. This high-performance downlight features 96 CRI, with an R9 value exceeding 50, making the DLE4 among the highest rated light fixtures in terms of light quality. Installation does not require a recessed housing, only a simple 4.25 in. in diameter cut-out in the ceiling using the provided template. The ultra-thin fixture depth (less than 1 in.) and off-board driver (included) allows for a more flexible installation and increased lifetime with superior heat management. The DLE4 features adjustable spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding light in tight spaces such as living rooms, hallways, bathrooms, basements, entryways, porches and utility closets just got easier. The DLE4 is Title 24 Compliant (except 5000K version), ENERGY STAR rated, Insulation Contact rated (IC-rated), Airtight, Damp-location rated and is protected by NICOR's 5-Year Limited Warranty.

  • Includes LED downlight module and off-board driver
  • Includes 4.25 in. cut-out template
  • Installs directly into the ceiling, no housing or junction box needed
  • 5000K color temperature
  • 764 Lumens
  • 8.3-Watt
  • 120-Volt AC
  • Dimmable down to 5% using standard LED dimmers
  • Lifetime rated for over 54,000 hours
  • Insulation contact rated (IC-rated)
  • Aged copper, black and nickel faceplates sold separately
  • ENERGY STAR rated, airtight and damp-location rated
  • 5-year limited warranty
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand NICOR NICOR NICOR NICOR
Name 4 in. Round 5000K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit 4 in. Round 3000K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit 4 in. Round 4000K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit 4 in. Round 2700K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit
Price
$21.67
$21.67
$21.67
$21.67
Ratings (5) (5) (5) (5)
Reflector Finish Family White White White White
View Product View Product View Product View Product

Specifications

Dimensions

Actual Aperture Width (in.)
3.2
Housing Height (in.)
1
Maximum Cutout Size (in.)
4.25
Nominal Lens Aperture Size
3 in.
Product Depth (in.)
1
Product Height (in.)
5
Product Width (in.)
5
Trim Size (Width)
5 in.

Details

Actual Color Temperature (K)
5000
Color Family
White
Color Rendering Index (CRI)
96
Color Temperature
Daylight
Commercial/Residential
Residential
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Damp Rated
Features
Air Tight,Canless,Dimmable,Junction Box Compatible,Low Glare,Retrofit,Shallow,Slope Ceiling
Fixture Color/Finish
White
Fixture Material
Cast Aluminum
IC Rating
IC Rated
Included
Gasket(s),Light Bulb(s),Low Glare,Remodel Clips,Stencil,Wiring Connectors
Indoor/Outdoor
Indoor
Kit Type
Integrated LED
Lumens
764
Maximum Bulb Wattage
8.3
New Construction or Remodel
New Construction,Remodel
Package Quantity
1
Power Options
Hardwired
Product Weight (lb.)
0.65lb
Reflector Finish Family
White
Returnable
90-Day
Trim Type
Decorative,Ultra-Thin
Voltage
Line Voltage
Watt Equivalence
45

Warranty / Certifications

Certifications and Listings
ETL Listed,IC Rated
Manufacturer Warranty
5-Year Limited Warranty

Specifications

Dimensions

Actual Aperture Width (in.)
3.2
Housing Height (in.)
1
Maximum Cutout Size (in.)
4.25
Nominal Lens Aperture Size
3 in.
Product Depth (in.)
1
Product Height (in.)
5
Product Width (in.)
5
Trim Size (Width)
5 in.

Details

Actual Color Temperature (K)
5000
Color Family
White
Color Rendering Index (CRI)
96
Color Temperature
Daylight
Commercial/Residential
Residential
Compatible Bulb Type
Integrated LED
Damp/Wet Rating
Damp Rated
Features
Air Tight,Canless,Dimmable,Junction Box Compatible,Low Glare,Retrofit,Shallow,Slope Ceiling
Fixture Color/Finish
White
Fixture Material
Cast Aluminum
IC Rating
IC Rated
Included
Gasket(s),Light Bulb(s),Low Glare,Remodel Clips,Stencil,Wiring Connectors
Indoor/Outdoor
Indoor
Kit Type
Integrated LED
Lumens
764
Maximum Bulb Wattage
8.3
New Construction or Remodel
New Construction,Remodel
Package Quantity
1
Power Options
Hardwired
Product Weight (lb.)
0.65lb
Reflector Finish Family
White
Returnable
90-Day
Trim Type
Decorative,Ultra-Thin
Voltage
Line Voltage
Watt Equivalence
45

Warranty / Certifications

Certifications and Listings
ETL Listed,IC Rated
Manufacturer Warranty
5-Year Limited Warranty

Questions & Answers

  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 74ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Customer Reviews

4 in. Round 5000K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit is rated 4.8 out of 5 by 5.
Rated 5 out of 5 by from This is a great development for DIY, This product make adding high hats easy as pie. Made especia... This is a great development for DIY, This product make adding high hats easy as pie. Made especially for small spaces a recessed can or tall fixture wont fit, this compact and ultra-slim down-light is designed to reduce energy costs and maintenance worries. High hats look better then most ceiling light fixtures. With spring action clips and a separate junction box, this 4 in. down-light eliminates housing and makes for the the easiest installation ever. Energy used: 9-Watt (equivalent to a 60-Watt standard incandescent light bulb). 5-year warranty manufacturer guaranteed performance. Dimmable compatible with most Lutron or Leviton dimmers. Soft white (3000K) color temperature,Brightness: 600 Lumens, Lifespan: 30,000 hours.
Date published: 2019-03-29
Rated 5 out of 5 by from We used 12 of these in our basement finishing project. Our local handy-man recommended this style... We used 12 of these in our basement finishing project. Our local handy-man recommended this style, and I whole-heartedly agree with him. Installation is a breeze, and they even work in tighter spaces due to the separate junction box design. They include pre-installed push-in wire connectors, making installation even faster. The light itself uses spring-clips to clip to the drywall, and with the separate junction box you have more options for light placement. The sealed light and very low profile eliminate the dust accumulation that normal can light fixtures allow through air movement and convection between the ceiling space and living space.
Date published: 2019-04-03
Rated 4 out of 5 by from Very interesting setup. It's new way of installing makes it fairly easy and it looks very modern.... Very interesting setup. It's new way of installing makes it fairly easy and it looks very modern. It puts out quite a bit of light for being led and I like the fact it has a decent warranty for life long use. I'd recommend this to anyone wanting to update some hallway lighting or even in A restroom. Living room I myself prefer a less bright light more yellow not so white and bright but all in all a great setup.
Date published: 2019-06-04
Rated 5 out of 5 by from The NICOR 4 in. Round 3000K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit, is a... The NICOR 4 in. Round 3000K Remodel IC-Rated Recessed Integrated LED Edge Lit Downlight Kit, is as most all of NICOR's products. Nice clean designs, very easy installations, with a smooth modern look to them. This is a very reasonably priced product, that can be installed in a wide variety of applications. Just follow the directions and you can't go wrong.
Date published: 2019-04-20
Rated 5 out of 5 by from Nice little light. I didn't measure it, but it seems to be like 3/4 inch thick is all. Puts out s... Nice little light. I didn't measure it, but it seems to be like 3/4 inch thick is all. Puts out so good light too! These like would work beautifully in like a book case, built in shelving, even a curio cabinet or similar. Could also be used as under cabinet, counter lights. The wafer thin design allows for a multitude of installation options. Nice light.
Date published: 2019-03-29
