Internet #301574403

Model # 15014A

0767706072211

NICOR

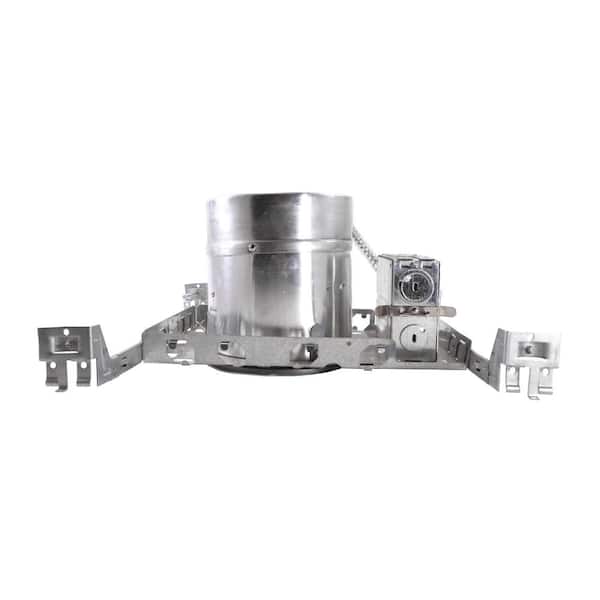

5 in. IC-Rated Airtight Shallow New Construction Recessed Housing

$ 27 63

Overview

This NICOR 15014A is an Airtight Aluminum 5-inch New Construction IC-Rated Housing designed for 5 inch LED Recessed Downlights, LED Retrofits, and Traditional Trims of all sorts. The Airtight and Insulation-Contact Rated Housing (IC allows for direct contact with insulation) helps keep your home insulated and Energy Efficient. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against Overheating (usually due to using an incorrect wattage or bulb). The 15014A is also Damp Location Rated when used with Damp Location Rated Downlights and Trims. The shallow housing is perfect for areas where space is an issue, and perfect for multi-level dwellings between floors. Comes protected with NICORs 1-year limited warranty.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

This NICOR 15014A is an Airtight Aluminum 5-inch New Construction IC-Rated Housing designed for 5 inch LED Recessed Downlights, LED Retrofits, and Traditional Trims of all sorts. The Airtight and Insulation-Contact Rated Housing (IC allows for direct contact with insulation) helps keep your home insulated and Energy Efficient. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against Overheating (usually due to using an incorrect wattage or bulb). The 15014A is also Damp Location Rated when used with Damp Location Rated Downlights and Trims. The shallow housing is perfect for areas where space is an issue, and perfect for multi-level dwellings between floors. Comes protected with NICORs 1-year limited warranty.
  • Fits 5 in. trims, retrofits, and downlights
  • Remodel housing with cut-out template
  • Maximum bulb wattage = 75-Watt
  • Aluminum construction for increased heat dissipation
  • Airtight Rated to provide for superior home insulation
  • IC-Rated; suitable for direct contact with insulation
  • Built-in thermal protection sensors guard against overheating
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Supplied with 3 push-in IDEAL connectors for easy hard-wire installation
  • Listed for through branch circuit wiring and includes several 3/4 knockouts
  • Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at multiple points
  • Protected by NICOR's 1-year limited warranty
  • Click here for more information on Electronic Recycling Programs

Product Overview

Model #: 15014A
Internet #: 301574403

This NICOR 15014A is an Airtight Aluminum 5-inch New Construction IC-Rated Housing designed for 5 inch LED Recessed Downlights, LED Retrofits, and Traditional Trims of all sorts. The Airtight and Insulation-Contact Rated Housing (IC allows for direct contact with insulation) helps keep your home insulated and Energy Efficient. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against Overheating (usually due to using an incorrect wattage or bulb). The 15014A is also Damp Location Rated when used with Damp Location Rated Downlights and Trims. The shallow housing is perfect for areas where space is an issue, and perfect for multi-level dwellings between floors. Comes protected with NICORs 1-year limited warranty.

  • Fits 5 in. trims, retrofits, and downlights
  • Remodel housing with cut-out template
  • Maximum bulb wattage = 75-Watt
  • Aluminum construction for increased heat dissipation
  • Airtight Rated to provide for superior home insulation
  • IC-Rated; suitable for direct contact with insulation
  • Built-in thermal protection sensors guard against overheating
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Supplied with 3 push-in IDEAL connectors for easy hard-wire installation
  • Listed for through branch circuit wiring and includes several 3/4 knockouts
  • Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at multiple points
  • Protected by NICOR's 1-year limited warranty
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
This NICOR 15014A is an Airtight Aluminum 5-inch New Construction IC-Rated Housing designed for 5 inch LED Recessed Downlights, LED Retrofits, and Traditional Trims of all sorts. The Airtight and Insulation-Contact Rated Housing (IC allows for direct contact with insulation) helps keep your home insulated and Energy Efficient. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against Overheating (usually due to using an incorrect wattage or bulb). The 15014A is also Damp Location Rated when used with Damp Location Rated Downlights and Trims. The shallow housing is perfect for areas where space is an issue, and perfect for multi-level dwellings between floors. Comes protected with NICORs 1-year limited warranty.
  • Fits 5 in. trims, retrofits, and downlights
  • Remodel housing with cut-out template
  • Maximum bulb wattage = 75-Watt
  • Aluminum construction for increased heat dissipation
  • Airtight Rated to provide for superior home insulation
  • IC-Rated; suitable for direct contact with insulation
  • Built-in thermal protection sensors guard against overheating
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Supplied with 3 push-in IDEAL connectors for easy hard-wire installation
  • Listed for through branch circuit wiring and includes several 3/4 knockouts
  • Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at multiple points
  • Protected by NICOR's 1-year limited warranty
  • Click here for more information on Electronic Recycling Programs

Product Overview

Model #: 15014A
Internet #: 301574403

This NICOR 15014A is an Airtight Aluminum 5-inch New Construction IC-Rated Housing designed for 5 inch LED Recessed Downlights, LED Retrofits, and Traditional Trims of all sorts. The Airtight and Insulation-Contact Rated Housing (IC allows for direct contact with insulation) helps keep your home insulated and Energy Efficient. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against Overheating (usually due to using an incorrect wattage or bulb). The 15014A is also Damp Location Rated when used with Damp Location Rated Downlights and Trims. The shallow housing is perfect for areas where space is an issue, and perfect for multi-level dwellings between floors. Comes protected with NICORs 1-year limited warranty.

  • Fits 5 in. trims, retrofits, and downlights
  • Remodel housing with cut-out template
  • Maximum bulb wattage = 75-Watt
  • Aluminum construction for increased heat dissipation
  • Airtight Rated to provide for superior home insulation
  • IC-Rated; suitable for direct contact with insulation
  • Built-in thermal protection sensors guard against overheating
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Supplied with 3 push-in IDEAL connectors for easy hard-wire installation
  • Listed for through branch circuit wiring and includes several 3/4 knockouts
  • Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at multiple points
  • Protected by NICOR's 1-year limited warranty
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

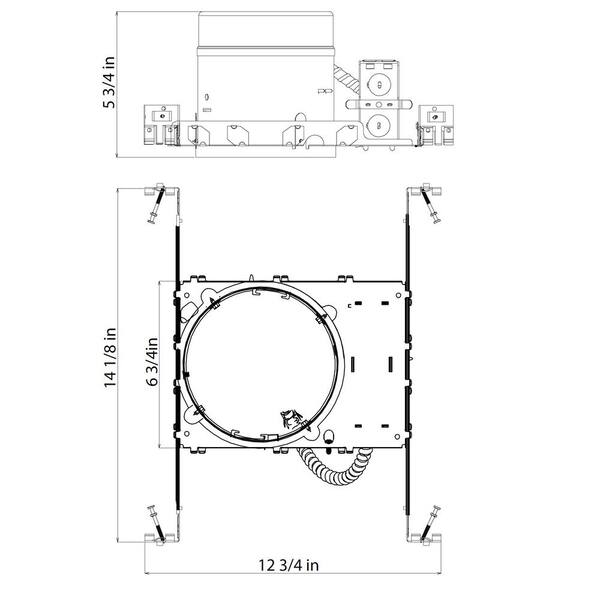

Dimensions

Actual Aperture Width (in.)
5.5
Housing Height (in.)
5.75
Housing Width (in.)
12.75
Maximum Cutout Size (in.)
5.75
Product Depth (in.)
10.75
Product Height (in.)
5.75
Product Width (in.)
14.25

Details

Compatible Bulb Type
CFL,Incandescent,LED
Damp/Wet Rating
Damp Rated
Features
Air Tight,Dimmable,Shallow,Trimless
IC Rating
IC Rated
Included
Gasket(s),Mounting Brackets,Stencil,Wiring Connectors
Indoor/Outdoor
Indoor
Light Bulb Base Code
E26
Maximum Bulb Wattage
75
New Construction or Remodel
New Construction
Number of Housings Included
1
Power Options
Hardwired
Product Weight (lb.)
2.15lb
Reflector Finish Family
Metallic
Remote Access
No Remote Access
Returnable
90-Day
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
1-UL Listed,IC Rated,cUL Listed
Manufacturer Warranty
Protected by NICOR's 1 Year Limited Warranty

Specifications

Dimensions

Actual Aperture Width (in.)
5.5
Housing Height (in.)
5.75
Housing Width (in.)
12.75
Maximum Cutout Size (in.)
5.75
Product Depth (in.)
10.75
Product Height (in.)
5.75
Product Width (in.)
14.25

Details

Compatible Bulb Type
CFL,Incandescent,LED
Damp/Wet Rating
Damp Rated
Features
Air Tight,Dimmable,Shallow,Trimless
IC Rating
IC Rated
Included
Gasket(s),Mounting Brackets,Stencil,Wiring Connectors
Indoor/Outdoor
Indoor
Light Bulb Base Code
E26
Maximum Bulb Wattage
75
New Construction or Remodel
New Construction
Number of Housings Included
1
Power Options
Hardwired
Product Weight (lb.)
2.15lb
Reflector Finish Family
Metallic
Remote Access
No Remote Access
Returnable
90-Day
Voltage
Line Voltage

Warranty / Certifications

Certifications and Listings
1-UL Listed,IC Rated,cUL Listed
Manufacturer Warranty
Protected by NICOR's 1 Year Limited Warranty
