Model # 17001R

Internet #205511724

null NICOR 6 in. Recessed Non-IC Rated Housing
0767706002027

NICOR 6 in. Recessed Non-IC Rated Housing

$1303 /each

Product Overview

This 6 in. line-Voltage aluminum housing is rated for non-insulation contact. This housing is suitable for both new construction and remodel in both residential and commercial applications. Features thermal protector guards, adjustable socket bracket and ideal push-in wire connectors for easy installation.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

This 6 in. line-Voltage aluminum housing is rated for non-insulation contact. This housing is suitable for both new construction and remodel in both residential and commercial applications. Features thermal protector guards, adjustable socket bracket and ideal push-in wire connectors for easy installation.
  • Shallow housing is perfect for ceilings between floor levels
  • Suitable for existing construction and remodel applications
  • Integral thermal protector guards against improper lamping and misuse of insulation materials
  • 7 in. height allows use in 2 in. x 8 in. joist construction
  • Aluminum construction provides greater heat dissipation
  • Non-IC, insulation must be kept a minimum of 3” from housing
  • Supplied with 3 ideal push-in wire connectors
  • Listed for through branch circuit wiring and includes several 3/4” knockouts
  • Protected by NICOR's 1 year limited warranty

Product Overview

Model #: 17001R
Internet #: 205511724

This 6 in. line-Voltage aluminum housing is rated for non-insulation contact. This housing is suitable for both new construction and remodel in both residential and commercial applications. Features thermal protector guards, adjustable socket bracket and ideal push-in wire connectors for easy installation.

  • Shallow housing is perfect for ceilings between floor levels
  • Suitable for existing construction and remodel applications
  • Integral thermal protector guards against improper lamping and misuse of insulation materials
  • 7 in. height allows use in 2 in. x 8 in. joist construction
  • Aluminum construction provides greater heat dissipation
  • Non-IC, insulation must be kept a minimum of 3” from housing
  • Supplied with 3 ideal push-in wire connectors
  • Listed for through branch circuit wiring and includes several 3/4” knockouts
  • Protected by NICOR's 1 year limited warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

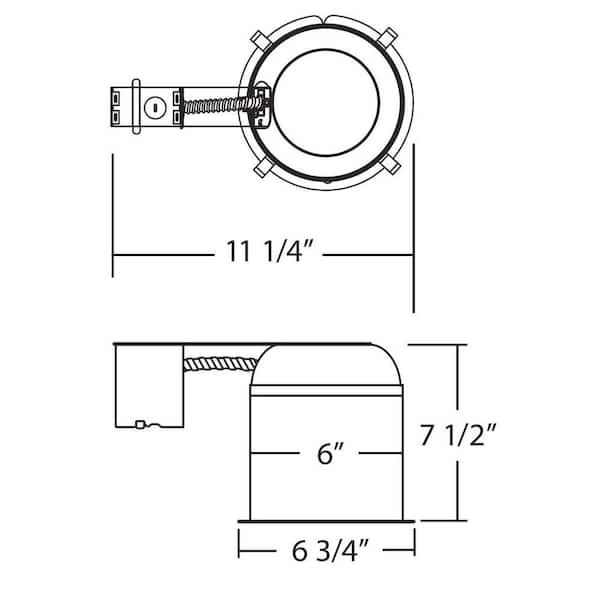

Dimensions

Aperture width (in.)
6
Housing depth (in.)
7.5
Product Depth (in.)
11.25
Product Height (in.)
7.5
Product Width (in.)
6.75
Size
6 in.

Details

Airtight
No
Insulation contact
Non-insulation contact
Light Bulb Base Code
Medium
Light Bulb Type Included
Incandescent
New Construction or Remodel
Remodel
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
2.3lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
1 Year Limited Warranty

Specifications

Dimensions

Aperture width (in.)
6
Housing depth (in.)
7.5
Product Depth (in.)
11.25
Product Height (in.)
7.5
Product Width (in.)
6.75
Size
6 in.

Details

Airtight
No
Insulation contact
Non-insulation contact
Light Bulb Base Code
Medium
Light Bulb Type Included
Incandescent
New Construction or Remodel
Remodel
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
2.3lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
1 Year Limited Warranty

Questions & Answers

Is this rated for a 100w heat lamp? Thank you!

Is this rated for a 100w heat lamp? Thank you!
Asked by: ronsong
This is a hard question to answer without knowing what kind of trim will be used. This housing has built-in thermal protecting safe guards that will shut off power to the light at around 180° F. If you were to use an enclosed trim, like a shower trim, the heat would build up and trigger the thermal protector guards. If you were to use a trim that was not enclosed, such as an open trim, I don't think there would be an issue. You do also want to make sure the trim you use is rated to handle a 100W heat lamp as well.
Answered by: BrandAnswers
Date published: 2017-02-02
