NuTone 70 CFM Wall/Ceiling Mount Exhaust Bath Fan
0784891258367

NuTone

70 CFM Wall/Ceiling Mount Exhaust Bath Fan

  • Quietly operates to reduce moisture and help prevent mildew
  • Easy to install with steel mounting flanges and keyhole slots
  • Manage moisture for spaces up to 85 sq. ft.
$2626 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Installation Options

Product Overview

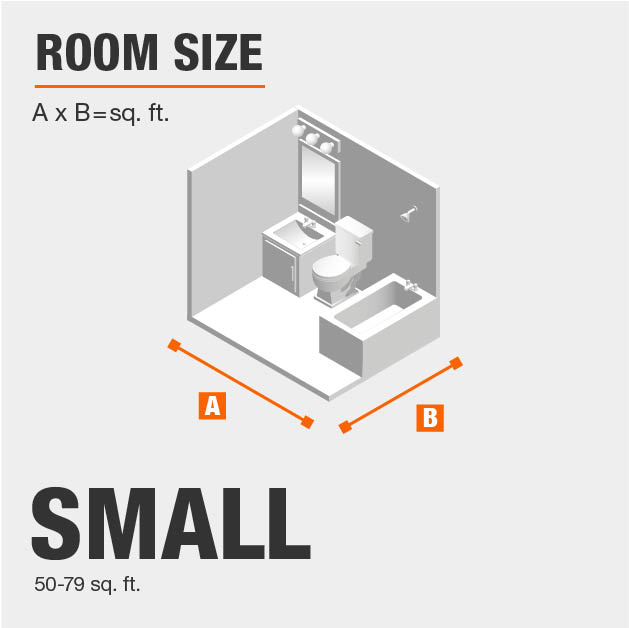

Room Size
Sones Level
CFM
  • Quietly operates to reduce moisture and help prevent mildew
  • Easy to install with steel mounting flanges and keyhole slots
  • Manage moisture for spaces up to 85 sq. ft.
The NuTone Value Test 70 CFM Exhaust Fan can be used in rooms up to 60 sq. ft. with a white polymeric grille to match a variety of home interiors. The 70 CFM fan helps reduce moisture and features a motor that operates at 6 sones for efficiency. The fan can be installed with a GFI branch circuit for use over bathtubs or showers and includes keyhole slots and torsion springs for simple set-up.
  • 70 CFM reduces moisture to help prevent mildew
  • 70 CFM at 6.0 sones
  • Plug-in motor for easy installation
  • Manages moisture in bathrooms up to 65 sq. ft.
  • 3 in. duct connector with damper
  • White polymeric grille
  • UL listed and HVI-2100 certified for safety
  • UL listed for use over tub or shower with a GFCI branch circuit
  • 1-year limited manufacturer warranty
  • Pick the best air filters for your home. Check out our Buying Guide for helpful tips.

Product Overview

  • Quietly operates to reduce moisture and help prevent mildew
  • Easy to install with steel mounting flanges and keyhole slots
  • Manage moisture for spaces up to 85 sq. ft.
Model #: 695
Internet #: 100001378

The NuTone Value Test 70 CFM Exhaust Fan can be used in rooms up to 60 sq. ft. with a white polymeric grille to match a variety of home interiors. The 70 CFM fan helps reduce moisture and features a motor that operates at 6 sones for efficiency. The fan can be installed with a GFI branch circuit for use over bathtubs or showers and includes keyhole slots and torsion springs for simple set-up.

  • 70 CFM reduces moisture to help prevent mildew
  • 70 CFM at 6.0 sones
  • Plug-in motor for easy installation
  • Manages moisture in bathrooms up to 65 sq. ft.
  • 3 in. duct connector with damper
  • White polymeric grille
  • UL listed and HVI-2100 certified for safety
  • UL listed for use over tub or shower with a GFCI branch circuit
  • 1-year limited manufacturer warranty
  • Pick the best air filters for your home. Check out our Buying Guide for helpful tips.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$14.97 /each
$26.26 /each
$28.80 /each
$46.41 /each
Name 50 CFM Wall/Ceiling Mount Exhaust Bath Fan 70 CFM Wall/Ceiling Mount Exhaust Bath Fan 70 CFM Ceiling/Wall Exhaust Fan 70 CFM Through-the-Wall Exhaust Fan Ventilator
Brand NuTone NuTone Broan Broan
Ratings (492) (79) (35) (98)
Housing Length (in.) 7.25 7.5 7.25 8
Maximum Room Size (sq. ft.) 45 60 60 60
Housing Width (in.) 7.5 7.25 7.5 8
Features No Additional Features No Additional Features No Additional Features No Additional Features
View Product View Product View Product View Product

Specifications

Dimensions

Housing Length (in.)
7.5
Housing Width (in.)
7.25
Maximum Room Size (sq. ft.)
60
Product Height (in.)
4.625
Product Length (in.)
8.688
Product Width (in.)
9.5

Details

Air Volume (CFM)
70
Amperage (amps)
1.2
Color/Finish
White
Duct Compatible Sizes
3 in
Fan Sound Level (Sones)
6.0
Features
No Additional Features
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling,Wall
Mount Type
Surface Mount
Product Weight (lb.)
4lb
Returnable
90-Day
Room Size
Small Room Fan
Voltage (volts)
120
Wattage (watts)
0

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 1 year

Specifications

Dimensions

Housing Length (in.)
7.5
Housing Width (in.)
7.25
Maximum Room Size (sq. ft.)
60
Product Height (in.)
4.625
Product Length (in.)
8.688
Product Width (in.)
9.5

Details

Air Volume (CFM)
70
Amperage (amps)
1.2
Color/Finish
White
Duct Compatible Sizes
3 in
Fan Sound Level (Sones)
6.0
Features
No Additional Features
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling,Wall
Mount Type
Surface Mount
Product Weight (lb.)
4lb
Returnable
90-Day
Room Size
Small Room Fan
Voltage (volts)
120
Wattage (watts)
0

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 1 year

Questions & Answers

I have a mercury 690-696 A unit - is this what I will need to replace the fan? The housing measurements are 8.25x7.5

Asked by: Emily
yes, this fan will work for the dimensions you provided. but what's most important is what dimension of pipe you have venting out of the house. is it a 3 inch diameter or 4 inch? you don't want to put a fan with a 4 inch exhaust on a 3 inch pipe because you'll run the risk of overheating the motor and burning it out. so measure before you go to the store and buy. also get ready for the sound close to a jet airliner taking off every time you turn this fan on...
Answered by: RickW
Date published: 2018-04-12

I have a 1999 model Nutone 70 CFM that fit into dimensions 7.25 x 8.25. What unit would replace that today? Tl

The 8.25 side is the one with the exhaust. L or W?
Asked by: Ira
Model #695 fit the existing NuTone housing with those dimensions. I didn’t hook up the exhaust but it works fine in our 1970’s house
Answered by: Jeep
Date published: 2018-04-05

I’m replacing an existing fan in my bathroom. The hole in the wall is 8 1/2” x 8 1/2”. Will the outer cover fully cover this hole?

Asked by: Matt
The cover measures just over 8.5 x 9 inches so it might work
Answered by: Jeep
Date published: 2018-04-05

I bought this to replace my existing bathroom fan. The new fan has the exhaust pointing to the r...

I bought this to replace my existing bathroom fan. The new fan has the exhaust pointing to the right and my existing one is pointing to the left towards the outside of my house. How do I modify this?
Asked by: DP
Doubt you can modify this one, or else, invert it with exhaust on down side (maybe). Fan blades only turn one way to create the fan and suction effect. I used the data plate, model and serial number from the old fan to match up for this one. This is a very common model but you may have something different. Good luck.
Answered by: JonE
Date published: 2018-03-01
  • y_2018, m_6, d_23, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_39
  • loc_, sid_100001378, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 16ms
  • QUESTIONS, PRODUCT

Customer Reviews

70 CFM Wall/Ceiling Mount Exhaust Bath Fan is rated 3.7 out of 5 by 79.
Rated 4 out of 5 by from Does it's job but is noisey... Does it's job but is noisey
Date published: 2018-02-06
Rated 4 out of 5 by from This purchase was made to replace an existing motor bearing failure in the same model in our bath... This purchase was made to replace an existing motor bearing failure in the same model in our bath. It was necessary to purchase the entire unit (normally a motor replacement is available). The new motor and insert panel fit perfectly and there was a quick change out as a result. The new motor operated as expected. I recommend this model. it is moderately quiet and moves a larger volume of air then the original unit which had a smaller turbine.
Date published: 2018-03-13
Rated 1 out of 5 by from There was nothing wrong with the unit but, it was... There was nothing wrong with the unit but, it was the wrong unit. When I went back to return it, I found the correct one by going to the department and opening up a box for just the motor. Turns out the number on the box for the correct unit was mis labeled. Anyway, I got the job done.
Date published: 2017-12-26
Rated 4 out of 5 by from Works great, a little loud like a plane taking off,... Works great, a little loud like a plane taking off, but it works better than the 50cfm I had, easy to install, since I only transferred the motor and fan out, it was even easier though a little customization was needed for fit of both motor and fan blades.
Date published: 2017-12-26
Rated 4 out of 5 by from Pretty easy to install good thing I’m smart enough to... Pretty easy to install good thing I’m smart enough to figure it out since it didn’t come with an instruction manual.
Date published: 2018-06-06
Rated 4 out of 5 by from 4 Star Review Rating provided by a verified purchaser
Date published: 2018-01-10
Rated 5 out of 5 by from Cost vs ? Bought this to replace an old unit... Old unit worked, just looked like hellO, this is a tad quieter than the old, but still you can hear it.... I bought this for several reasons - 1 it looked to be the same as my previous (sizing) - it was fit PERFECTLY install was a breeze... For the sound level, sure its up their, but face it it runs when your in the shower and on the can.... I wont be using as a "ceiling" fan.... If you want ultra quiet go spend $100+ not $30..... My plugged nickle... For the Price - its a good item....
Date published: 2012-04-17
Rated 5 out of 5 by from Excellent I have this in my 5x5 bathroom and it works great! The only downfall is that is pretty loud. But in all honesty it's better for your guests. This way you won't hear what their doing in there
Date published: 2015-04-21
