Internet #300659122

Model #39217

Store SKU #448566

4 in. Disc Floor Drain Plunger

  • Plunger made of rubber to offer resistance to water and chemical
  • Rubber disc cleans small blockage from 4 in. drain trap
  • Includes a rubber disc, two washers, bolt and receiver
  • See More Details

Frequently Bought Together

+
+
Price:
$1249

Product Overview

The Oatey 4 in. Curb/Disc Plunger Kit is used for clearing small blockages from all 4 in. floor drains or combination sewer master traps. The versatility of the Curb/Disc Plunger allows for use at any depth by cutting Sch. 80 black or galvanized TBE pipe and threading it into the 3/4 in. brass receiver. For residential and commercial plumbing applications. Using all components inside the bag, assemble your new Curb/Disc Plunger. Remove strainer or cleanout cap and measure the depth of trap below grade. Cut a 3/4 in. x 10 ft. Sch. 80 black or galvanized pipe (sold separately) to desired length. Pipe should be cut to a length that is 2 ft. greater than the depth of trap being serviced. Insert disc below water level and with vigorous motion, move plunger up and down. Continue until small blockage is relieved and water flow returns. Note: Only for use on small blockages. If tree roots or solid blockages exist, drain clearing equipment or products may be necessary.
  • California residents

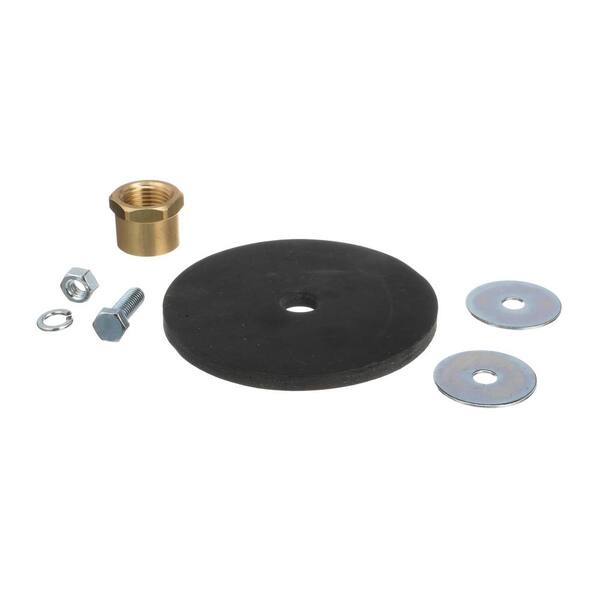

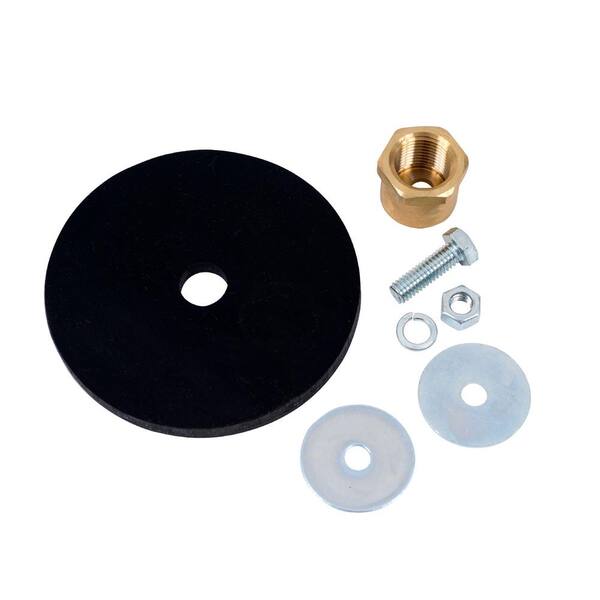

  • Includes: 4 in. rubber disc, 1/4 in. x 1-1/4 in. washers (2), 1/4 in. nut, 1/4 in. x 1-1/4 in. bolt, 1/4 in. locking washer, 3/4 in. female brass receiver
  • Fits all 4 in. floor drains or combination sewer master traps
  • For removal of small blockages
  • Kit includes rubber disc, washers, bolt and receiver
  • Residential and commercial applications

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
4
Product Height (in.)
4
Product Width (in.)
.25

Details

Material
Rubber
Pack Size
1
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
1 year limited warranty

Questions & Answers

3Questions4Answers

Does HD sell the pipe to attach?

Asked by Matt October 24, 2020
1
Answer

Contact your local Home Depot for available pipe.

Is description correct?... Descriptions says 3/4 inch pipe needed, however I'm quite sure the ite...

Asked by Jonathan May 16, 2020
1
Answer

I think it is 1/2 inch pipe. I've used them before.

What tubing is polyvinyl chloride?

Asked by Joe November 13, 2016
2
Answers

Pvc

Customer Reviews

  • 15 Customer Reviews
  • 4.4 out of 5 stars overall
75% of customers recommended.
Overall Ratings
5star-icon(11)
4star-icon(2)
3star-icon(0)
2star-icon(0)
1star-icon(2)
Sort By:
Worked perfectly to unclog my sewer line. Attached to 1/2...
Worked perfectly to unclog my sewer line. Attached to 1/2 inch 10ft black steel pipe.
Was this helpful?
0
0
Very good store always recommended to my costumers buy on...
Very good store always recommended to my costumers buy on Home Depot is my preference store
Was this helpful?
0
0
The brass fitting was drilled incorrectly and unusable. After returning...
The brass fitting was drilled incorrectly and unusable. After returning the product to the store for a refund, I tried to find one in stock that was drilled properly but all of the approximately 15 that were on display were unusable/drilled incorrectly. I later purchased the item at a local plumbing supply house for 2/3 the price fully assembled and usable.
Was this helpful?
0
0
Easily screwed onto a 10 ft section of 1/2 in steel pipe. Snug fit in 4 in. vent stack which act...
Ease of installation :
5
Quality :
5
Value :
5
Easily screwed onto a 10 ft section of 1/2 in steel pipe. Snug fit in 4 in. vent stack which actually created suction after plunging so that it pulled waste water up the pipe as I was removing it from the stack. Worked like a charm and saved me hundreds on a call to a plumber.
Was this helpful?
1
0
Performed as expected. Oatey makes good products.
Performed as expected. Oatey makes good products.
Was this helpful?
1
0
5 Star Review
Rating provided by a verified purchaser
Was this helpful?
0
0
Works perfectly.
Works perfectly.
Was this helpful?
1
0
Very pleased!...
Very pleased!
Was this helpful?
0
0
This product was ordered and returned twice. On both occasions the hole in the brass piece was ...
This product was ordered and returned twice. On both occasions the hole in the brass piece was drilled significantly off center. Poor quality control made in Taiwan.
Was this helpful?
0
0
5 Star Review
Rating provided by a verified purchaser
Was this helpful?
0
0
