1/2 Pattern Plastic Shrub with Plastic Nozzle

$1.74
  • Half-circular spray pattern covers a large range
  • Mesh filter prevents debris and dirt causing clogs
  • High-quality plastic construction ensures long term use
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

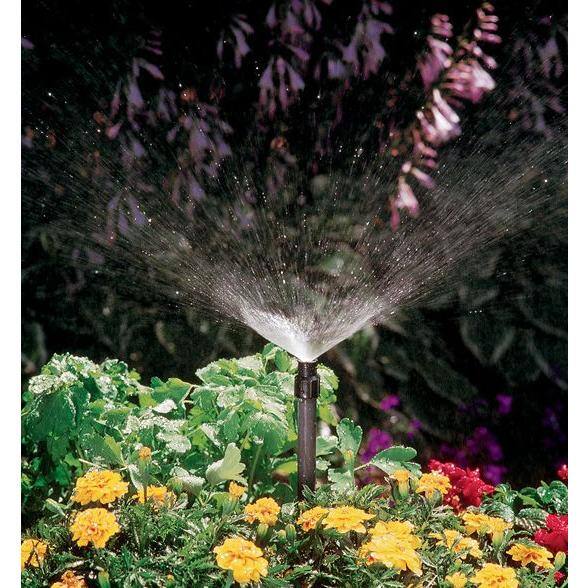

The Orbit Plastic 1/2-Pattern Shrub Sprinkler Head features a 1/2 inch FNPT inlet and a durable plastic insert nozzle with a 1/2-circle spray pattern. This shrub head incorporates a filter that helps prevent clogging. Flow-adjustment screw to adjust spray distance and water flow.

Highlights

  • Works with or replaces a shrub sprinkler
  • 1/2 in. FNPT connection
  • Provides 15 sq. ft. of coverage
  • Plastic insert nozzle with 1/2-circle spray pattern
  • Filter helps prevent debris clogs
  • Durable plastic construction
  • Half-circle spray pattern
  • For outdoor use only
  • For cold water use only
  • For irrigation applications only
  • Return Policy

Product Information

Internet # 100161550

Model # 54010

Store SKU # 438952

Additional Resources

Shop All Orbit
From the Manufacturer

Specifications

Dimensions: H 1.5 in, W 1.5 in, D 1.5000 in

Dimensions

Inlet Size (in.)

0.5

Product Depth (in.)

1.5000 in

Product Height (in.)

1.5 in

Product Width (in.)

1.5 in

Details

Color Family

Blacks

Features

No Additional Features

Head Material

Plastic

Inlet Type

Female

Irrigation System Component

Sprinkler

Material

Plastic

Maximum Coverage Area (sq ft.)

15

Maximum Gallons Per Minute

2.6

Maximum Rotation (Degrees)

180

Maximum Spray Distance (ft.)

15

Minimum Spray Distance (ft.)

10

Mounting

In-Ground Install

Nozzle Material

Plastic

Pack Size

1

Package Quantity

1

Pressure Rating

120

Returnable

90-Day

Riser

Riser Not Required

Sprinkler Angle Maximum (Degrees)

25

Sprinkler Angle Minimum (Degrees)

5

Sprinkler Head Material

Plastic

Sprinkler Head Spray Pattern

Half Radius

Sprinkler Head Type

Spray

Sprinkler Location

Above ground, Below ground

Sprinkler Type

Fixed

Thread Type

Female

Warranty / Certifications

Manufacturer Warranty

None

Questions & Answers

24Questions
caret
Q:I need sprinkler heads that can spray a full circle but only in areas less than 2 feet with low volume.
by|Apr 13, 2023
1 Answer
Answer This Question

A:  This sprinkler head would be suitable for your watering needs. The flow rate can be increased or decreased by turning the center screw at the top of the nozzle head. Clockwise rotation will restrict water flow, while counterclockwise rotation will increase water flow.

by|Apr 17, 2023
    caret
    Q:Why are these not available in California according to HD website? Is there a like-in-kind that is available in CA? What's the difference?
    by|Mar 30, 2023
    2 Answers
    Answer This Question

    A:  They are "illegal" in Cali and AZ (couple other states also)

    by|May 25, 2024

      A:  Probably due to not meeting minimum water flow requirements and/or cancer causing ingredients.  Not sure, just speculation.  I’d go down to your local store and see what they have.  If no options are available, there’s always the competition “A” or “L”

      by|Mar 31, 2023
        caret
        Q:how is direction determinated?
        by|Jun 7, 2022
        1 Answer
        Answer This Question

        A:  You can adjust the pattern by rotating the top of the sprinkler head.

        by|Jun 13, 2022
          caret
          Q:How far apart should these be spaced?
          by|Aug 10, 2020
          1 Answer
          Answer This Question

          A:  That depends on the set up and the PSI that each sprinkler is receiving. Typically you want to space them close enough to wear there is a slight overlap in the water to make sure there is water coverage throughout the setup.

          by|Dec 16, 2021
            Showing 1-4 of 24

            Customer Reviews

            4.4 out of 5

            • 4.4 out of 182 reviews
            • 70% recommend this product
            Filter by:
            Showing 1-10 of 182 reviews
            Works good.No problems.
            Works good.No problems.
            by
            • Verified Purchase
            • Recommended
            Non-Adjustable but has adjustment screw
            I purchased a number of these after seeing the adjustment screw on the top center of the head at the store. They will not adjust water flow. One would think they would say non-adjustable on the label etc. They sure fooled me! This is crazy and should be rectified.
            by
            • DIY
            3 found this review helpful
            On time delivery and successful installation.
            by
            • Verified Purchase
            simple and easy to install
            by
            • Verified Purchase
            by
            • Verified Purchase
            Difficult to adjust and set screw breaks and strips
            by
            Response from OrbitIrrigationJun 26, 2024
            Hey there, our Orbit support team is happy to help when you run into issues with the durability of our nozzles. We can be reached by phone at (800) 488-6156 or online at support.orbitonline.com. Have a great rest of your day. OrbitIrrigation
            • Verified Purchase
            CHEAP. Don't buy. Blew apart in 3 days
            by
            Response from OrbitIrrigationJun 26, 2024
            Hey there, our Orbit support team is happy to help when you encounter issues with the durability of our sprinklers. We can be reached by phone at (800) 488-6156 or online at support.orbitonline.com. Have a great rest of your day. OrbitIrrigation
            • Verified Purchase
            Was not able to adjust the spray distance and area. Very disappointed
            by
            Response from OrbitIrrigationJun 20, 2024
            Hey there, our Orbit support team is happy to help with the adjustment of our sprinklers. We can be reached by phone at (800) 488-6156 or online at support.orbitonline.com. Have a great rest of your day. OrbitIrrigation
            • Verified Purchase
            by
            • Verified Purchase
            The part is exactly what I wanted and is of good quality. The delivery time was a bit longer than I would have expected.
            by
            • Verified Purchase
            Showing 1-10 of 182 reviews
