Internet #203193237

Model #37770

Store SKU #857303

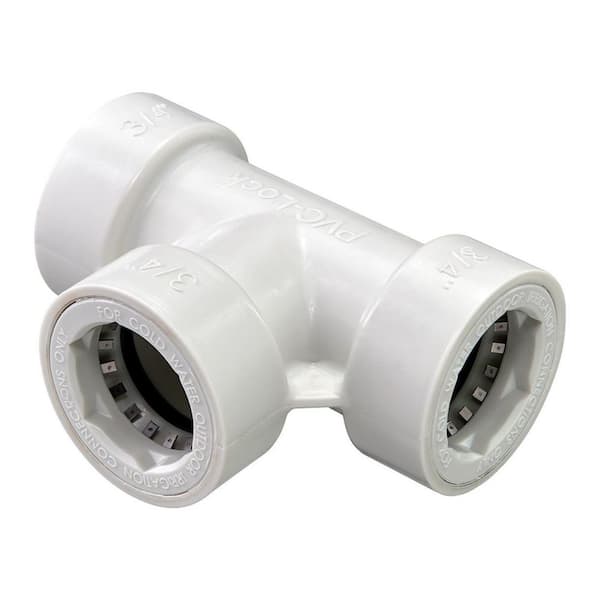

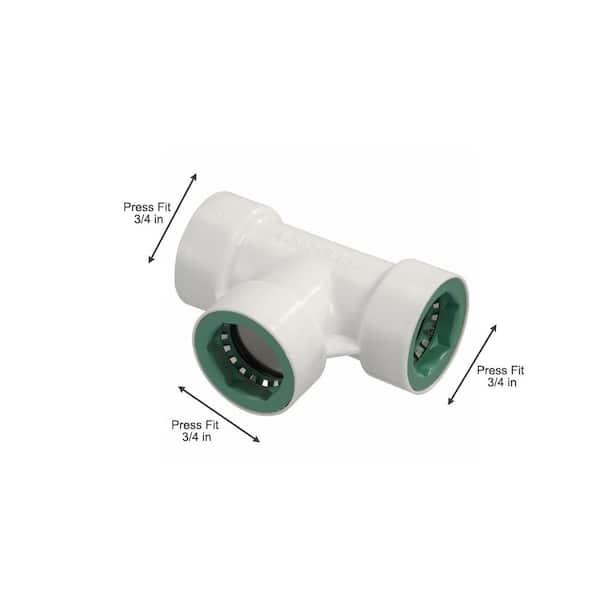

3/4 in. PVC-Lock Tee

  • PVC-Lock fitting easily pushes on standard PVC sprinkler pipe
  • Easy to install, push-on fitting for PVC sprinkler systems
  • Saves time, no glue, primer, clamps or drying time required
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

PVC-Lock is an easy-to-use fitting. It will save you time and eliminates messy (and toxic) primer and glue. The PVC-Lock fitting easily pushes onto PVC pipe and locks into place.
  • Used to install PVC sprinkler systems
  • Easy-to -Install push-on-fitting
  • Saves installation time
  • No, glue, primer, clamps, or drying time required
  • For outdoor use and cold water only
  • For irrigation applications only

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

3/4 in. x 3/4 in. PVC-Lock MPT Adapter
current product
3/4 in. PVC-Lock Tee
1 in. PVC-Lock Tee3/4 in. PVC Compression Tee with 1/2 in. FIP Branch
BrandOrbitOrbitOrbitHomewerks Worldwide
Name3/4 in. x 3/4 in. PVC-Lock MPT Adapter3/4 in. PVC-Lock Tee1 in. PVC-Lock Tee3/4 in. PVC Compression Tee with 1/2 in. FIP Branch
Price
Ratings
(7)
(6)
(4)
(41)
Fitting 1 size3/4"3/4"1"3/4"
Fitting or Connector TypeAdapterTeeTeeTee
Schedule TypeSchedule 40Schedule 40Schedule 40Schedule 40
Pack Size1111
ConnectivityPush FitPush FitPush FitCompression
DWVOtherPressurePressurePressure
FeaturesRemovable,Underground UseRemovable,Underground Rated,Underground UseRemovable,Underground UseCorrosion Resistant
ApplicationWater SupplyWater SupplyWater SupplyWater Supply
MaterialPVCPVCPVCPVC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Fitting 1 size
3/4"
Fitting 2 size
3/4"
Fitting 3 size
3/4"
Product Height (in.)
1.688
Product Width (in.)
3.625
Triple Fitting Size
3/4" x 3/4" x 3/4"

Details

Application
Water Supply
Color Family
White
Color/Finish
White
Compatible Pipe Material
PVC
Connection 1
Press Fit
Connection 2
Press Fit
Connection 3
Press Fit
Connectivity
Push Fit
DWV
Pressure
Features
Removable,Underground Rated,Underground Use
Fitting or Connector Type
Tee
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
150
Maximum Working Temperature (F)
105
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
.158
Reducing Fitting
No
Returnable
90-Day
Schedule Type
Schedule 40

Warranty / Certifications

Manufacturer Warranty
1 Year

Questions & Answers

11Questions12Answers

Once this tee is installed, can the connected pipe be rotated from time to time without causing t...

Asked by CuriousGeorge March 6, 2020
1
Answer

Yes, the fitting can be rotated as needed. This is one of the main benefits of a push-fit fitting like PVC-Lock instead of using primer and glue with typical PVC fittings.

Is there any difference other than branding between the Orbit PVC-Lock fittings and the Hydro-Rai...

Asked by DLB September 5, 2019
1
Answer

They perform the same functions, and you can expect the same level of quality and performance from both.

can this fitting be used on cpvc pipe

Asked by george December 24, 2018
1
Answer

No, it is designed only for use with regular PVC pipe. CPVC pipe has a different sizing convention than PVC pipe does. CPVC pipe's outer diameter is sized the same as copper tubing or PEX pipe, if that helps.

Does the PVC pipe (Schedule 40) have to be cut precisely and smoothly to use the PVC-lock success...

Asked by rptgarden September 19, 2018
1
Answer

As long as the end is smooth/straight enough so that the barbs on the inside of the PVC-Lock fitting catch the entire 360-degree end of your pipe (rather than only, say, 2/3 of the end), then the connection will be secure. Please feel free to contact our Support team at 1-800-488-6156, or via social media, if you have any questions at all, and we'd be happy to help.

Can you undo the connection?

Asked by Bramscho February 4, 2017
2
Answers

Yes, You Can. You will need to purchase separately Hydro-Rain PVCL-RTL-100 No Glue Needed PVC-Lock Release Tool.

Can this fitting be use on a pvc pipe that is under constant pressure if the pressure is less than 150psi?

Asked by Tc June 15, 2016
1
Answer

Yes, these are rated for mainline (constant pressure) use.

Can this fitting be used on poly pipe?

Asked by BL June 7, 2016
2
Answers

BI, PVC-Lock is designed specifically for use with PVC pipe. Different types of pipe have different diameters, and as a result, PVC-Lock fittings are incompatible with poly pipe.

Is this connection sturdy if you bury it. I have some elbow connections needed that will end up under dirt

Asked by TK May 3, 2016
1
Answer

TK, yes your PVC-Lock fittings and connections will stay sturdy after being buried. They are designed for use with underground irrigation systems, so you won't have problems there.

I am looking for a way to drain 1 inch pvc pipe which connects to the well feed which is a black flexible pipe

Asked by April 15, 2015
1
Answer

Not sure we understand your question, but this part is not a drain. This is a fitting for schedule 40 PVC pipe (usually white in color). This will not work with flexible pipe.

Can it be used on a threaded connection?

Asked by DocDave April 9, 2015
1
Answer

No, this should be used with regular, unthreaded PVC only.

3/4 in. PVC-Lock Tee - page 2

Customer Reviews

  • 3.7
    out of 6 reviews
  • 0% recommend this product
Filter by:
Showing 1-6 of 6 reviews
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by BRIAN
Super easy and very forgiving...
Super easy and very forgiving
by Cooki
i tried it and u fortunately it’s leaking ...
i tried it and u fortunately it’s leaking
by TIFANNY
Response from OrbitIrrigationJul 31, 2019
Thank you for the review. Please feel free to visit https://www.orbitonline.com/help_center or contact our Support team at 1-800-488-6156, and we’d be more than happy to help in any way we can. OrbitIrrigation
The Orbit 3/4” Tee worked as advertised no problems....
The Orbit 3/4” Tee worked as advertised no problems.
by ADP
1 person found this helpful
5 Star Review
Rating provided by a verified purchaser
by Taylor
I have used a few of these devices in above...
I have used a few of these devices in above ground projects. Easy to install. Found out South FL water has a form of ammonia that will breakdown the gasket over time causing leaks. Do your research before installing.
by BigMF
2 people found this helpful
