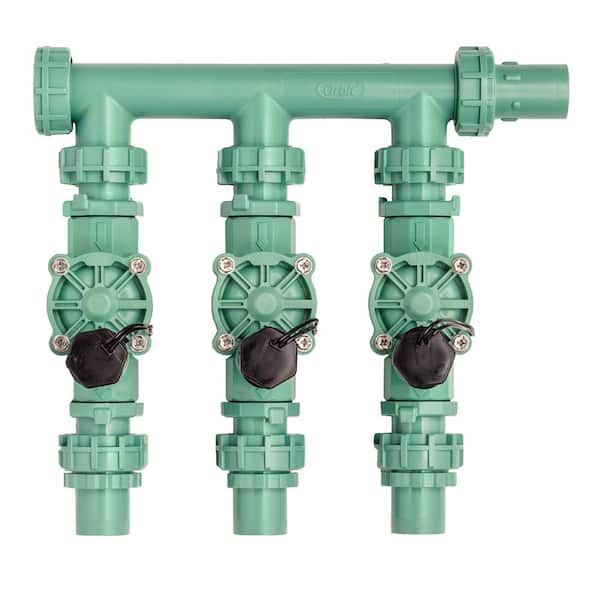

3-Valve Inline Manifold Assembly

  • Makes it easy to install multi-valve sprinkler systems
  • Works with both 3/4-in. and 1-in. systems
  • No tools required
  • See More Details

Frequently Bought Together


Product Overview

Orbit's 3-Valve Inline Manifold Assembly provides the most complete, reliable and easy method to install multi-valve systems. This system works with both 3/4 in. and 1 in. systems. Included are manifold, jar-top valves and all other components required for a 3 valve system. Makes installation and servicing a snap.
