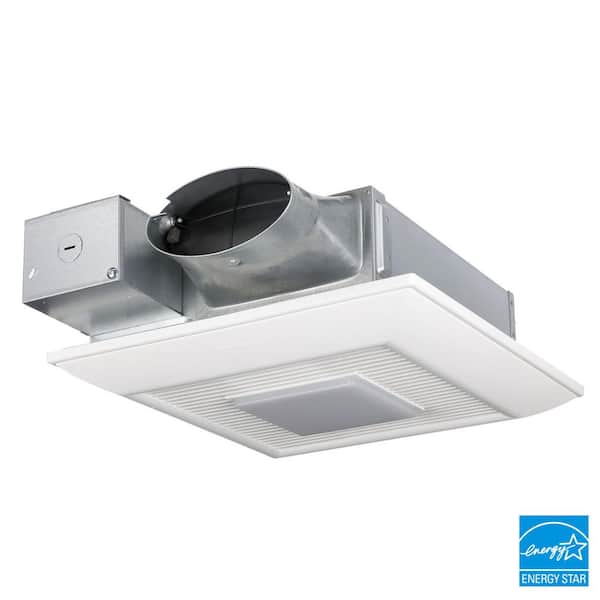

WhisperValue DC Exhaust Fan/LED Light and Night Light

  • ECM motor with SmartFlow technology provides efficient CFM output
  • Low-profile housing depth enables hassle-free installation
  • Equipped with a damper to reduce back drafting

Frequently Bought Together

Frequently Bought Together

Product Overview

  • ECM motor with SmartFlow technology provides efficient CFM output
  • Low-profile housing depth enables hassle-free installation
  • Equipped with a damper to reduce back drafting
WhisperValue DC Exhaust Fan with light and night light offers Pick-A Flow Speed Selector - 50, 80 or 100 CFM airflow. Quiet with less than 0.3 sones at 50 CFM, 0.4 sones at 80 CFM and 0.9 sones at 100 CFM. The enclosed brushless ECM Motor is rated for continuous run and offers SmartFlow Technology designed to perform as rated. This LED lighted fan includes one 10-Watt dimmable LED chip panel and one less than 1-Watt LED night light for energy efficient illumination. (Night light must be wired separately).
  • Pick-a-flow speed selector - 1 fan with 3 CFM options - 50, 80 and 100 CFM offering flexibility to adjust the speed as needed
  • LED light model features contemporary flush mount grille with the LED light and night light built-in
  • LED 10-Watt chip panel is specified at 3000 Kelvin, 90 CRI, and 700-Lumens, is Energy Star 2.0 certified with a 50,000-hours rated average life
  • Lowest profile available - 3 3/8 in. housing depth - it fits in 2 in. x 4 in. construction
  • 4 in. oval duct collar and back draft damper are built-in
  • L-shaped mounting bracket simplifies installation and provides strong support
  • UL approved for ceiling or wall mount and fits in 2 in. x 4 in. construction
  • UL Listed for tub, shower enclosure when GFCI protected
  • 6-year warranty on ECM motor and 3-year warranty on all parts
  • Energy Star Rated and Certified by the Home Ventilation Institute (HVI)
  • Can be used to comply with ASHRAE 62.2, LEED, IAP, California Title 24, CALGreen and Washington Ventilation Code
  • Click here to learn more about Eco Options and Energy Efficiency

Product Overview

  • ECM motor with SmartFlow technology provides efficient CFM output
  • Low-profile housing depth enables hassle-free installation
  • Equipped with a damper to reduce back drafting
Model #: FV-0510VSL1
Internet #: 303611825

WhisperValue DC Exhaust Fan with light and night light offers Pick-A Flow Speed Selector - 50, 80 or 100 CFM airflow. Quiet with less than 0.3 sones at 50 CFM, 0.4 sones at 80 CFM and 0.9 sones at 100 CFM. The enclosed brushless ECM Motor is rated for continuous run and offers SmartFlow Technology designed to perform as rated. This LED lighted fan includes one 10-Watt dimmable LED chip panel and one less than 1-Watt LED night light for energy efficient illumination. (Night light must be wired separately).

  • Pick-a-flow speed selector - 1 fan with 3 CFM options - 50, 80 and 100 CFM offering flexibility to adjust the speed as needed
  • LED light model features contemporary flush mount grille with the LED light and night light built-in
  • LED 10-Watt chip panel is specified at 3000 Kelvin, 90 CRI, and 700-Lumens, is Energy Star 2.0 certified with a 50,000-hours rated average life
  • Lowest profile available - 3 3/8 in. housing depth - it fits in 2 in. x 4 in. construction
  • 4 in. oval duct collar and back draft damper are built-in
  • L-shaped mounting bracket simplifies installation and provides strong support
  • UL approved for ceiling or wall mount and fits in 2 in. x 4 in. construction
  • UL Listed for tub, shower enclosure when GFCI protected
  • 6-year warranty on ECM motor and 3-year warranty on all parts
  • Energy Star Rated and Certified by the Home Ventilation Institute (HVI)
  • Can be used to comply with ASHRAE 62.2, LEED, IAP, California Title 24, CALGreen and Washington Ventilation Code
  • Click here to learn more about Eco Options and Energy Efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Panasonic Panasonic Panasonic Panasonic
Name Whisper Recessed Architectural Grade 80CFM Ceiling Flush Mount Dimmable Ventilation Exhaust Fan with LED Light WhisperValue DC Exhaust Fan/LED Light and Night Light WhisperGreen Select Pick-A-Flow 50/80/110CFM Exhaust Fan-LED Light-multispeed- Flex-Z Fast bracket-4/6 in. duct adapter WhisperSense DC fan-LED Lights Motion and Humidity Sensors Delay Timer Pick-A-Flow Speed Selector 50, 80 or 110 CFM
Price
$149.99
See Lower Price in Cart
$269.99
$298.69
Ratings (23) (32) (15) (19)
Installation Type Ceiling Ceiling,Wall Ceiling Ceiling
Mount Type Recessed Flush Mount Flush Mount Flush Mount
Housing Length (in.) 12.75 10.25 10.25 10.25
Maximum Room Size (sq. ft.) 80 100 110 110
Features Decorative,Light Adjustable Fan Speed,Light,Nightlight Adjustable Fan Speed,Light,Nightlight,Roomside Installation,Timer Adjustable Fan Speed,Humidity Sensing,Light,Motion Sensing,Nightlight,Timer
Housing Width (in.) 8.25 10.25 10.25 10.25
Fan Sound Level (Sones) 1.0 0.3,0.4,0.9 0.3,0.4 0.3,0.4
Air Volume (CFM) 80 110,50,80 110,50,80 110,50,80
Grill Shape No Grill Square Square Square
View Product View Product View Product View Product

Specifications

Dimensions

Housing Length (in.)
10.25
Housing Width (in.)
10.25
Product Height (in.)
4.80 in
Product Length (in.)
13.00 in
Product Width (in.)
13.00 in

Details

Air Volume (CFM)
110,50,80
Amperage (amps)
0.082,0.13,0.18
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
0.3,0.4,0.9
Features
Adjustable Fan Speed,Light,Nightlight
Grill Shape
Square
Housing Material
Galvanized Steel
Included
Hardware,Light Bulb,Nightlight Bulb
Installation Type
Ceiling,Wall
Light Bulb Base Code
No Base
Light Bulb Type Allowed
LED,LED
Light Bulb Type Included
LED
Maximum Light Bulb Wattage (watts)
10
Maximum Room Size (sq. ft.)
100
Mount Type
Flush Mount
Number of Bulbs Required
0
Product Weight (lb.)
7.94 lb
Returnable
180-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
10

Warranty / Certifications

Manufacturer Warranty
6 years on ECM Motor and 3 years on all parts

Specifications

Dimensions

Housing Length (in.)
10.25
Housing Width (in.)
10.25
Product Height (in.)
4.80 in
Product Length (in.)
13.00 in
Product Width (in.)
13.00 in

Details

Air Volume (CFM)
110,50,80
Amperage (amps)
0.082,0.13,0.18
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
0.3,0.4,0.9
Features
Adjustable Fan Speed,Light,Nightlight
Grill Shape
Square
Housing Material
Galvanized Steel
Included
Hardware,Light Bulb,Nightlight Bulb
Installation Type
Ceiling,Wall
Light Bulb Base Code
No Base
Light Bulb Type Allowed
LED,LED
Light Bulb Type Included
LED
Maximum Light Bulb Wattage (watts)
10
Maximum Room Size (sq. ft.)
100
Mount Type
Flush Mount
Number of Bulbs Required
0
Product Weight (lb.)
7.94 lb
Returnable
180-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
10

Warranty / Certifications

Manufacturer Warranty
6 years on ECM Motor and 3 years on all parts

Questions & Answers

Can this be used in a shower?

Can this be used in a shower?
Asked by: dang
Yes, the circuit must be protected by a GFCI and installed according to code.
Answered by: cscprez
Date published: 2020-02-11

I'm curious about the oval duct. Won't it go round when you tighten the clamp?

I'm curious about the oval duct. Won't it go round when you tighten the clamp?
Asked by: Otiemon
Duct is heavy gauge. You can't tighten a clamp enough to distort it. I used two 3/8" self drilling sheet metal screws to secure a galvanized elbow to get the ducting above the insulation. Make sure you don't block the damper, and seal everything with stainless steel duct tape. Make sure your vent ducting is pitched downward slightly toward the exit from the attic, just in case there's any condensation.
Answered by: cscprez
Date published: 2020-02-11

What type of wall switch does this require? Is it included?

Asked by: Michelle
Switches are not included.
Answered by: cscprez
Date published: 2020-02-11

Can you put the led light and fan on one switch?

Can you put the led light and fan on one switch?
Asked by: canejo
Yes!
Answered by: Annettejll
Date published: 2020-07-21
