WhisperWarm DC 50-80-110 CFM Ceiling Exhaust Fan with LED Light/Night Light and Heater
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The WhisperWarm DC FV-0511VHL1 Ceiling Mount Fan/Heater/Light is a versatile solution designed to enhance indoor comfort in bathrooms with efficient heating, effective ventilation, and modern lighting. Featuring a powerful 1600W PTC heater for instant warmth and a high-performance ECM motor with SmartFlow Technology, this unit provides optimal airflow and reliable operation. Its Pick-A-Flow Airflow Selector allows you to choose from 50, 80, or 110 CFM settings to meet various ventilation needs. The fan also includes a sleek 10W dimmable LED chip panel and a <1W night light for energy-efficient lighting. Easy to install with the Flex-Z Fast bracket, this model fits in 2x8 construction and meets the latest building codes, making it ideal for bathroom remodels, assisted living facilities, or any project requiring superior comfort and performance.
Highlights
- Bathroom Vent Fan with Light and Heater: Equipped with a powerful 1600W PTC heater for instant warmth plus an energy efficient 3000K LED light panel with adjustable brightness and low power less than 1W night light
- Customizable: This ultra-slim, whisper quiet, Energy Star-certified fan features a DC/ECM motor and Pick-A-Flow technology that allows you to select your desired airflow from 50, 80 or 110 CFM at the flip of a switch for your room size and usage needs
- Easy Installation: Flex-Z Fast Bracket simplifies installation with a single-hinge bracket for easy positioning and includes options for 4" or 6" ducting
- 10W Dimmable LED Light & <1W Night Light: Features a contemporary LED light panel with adjustable brightness and a low-power night light, compliant with JA-8 and CA Title 24 standards
- Explore Our Selection: We offer a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with our high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Additional Resources
Shop All PanasonicSpecifications

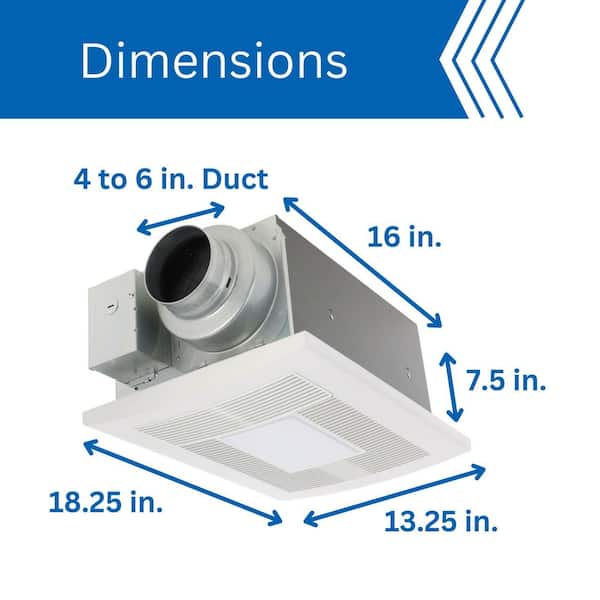

Dimensions
Housing Length (in.) | 16 |
|---|---|
Housing Width (in.) | 12 |
Product Height (in.) | 7.5 in |
Product Width (in.) | 13.25 in |
Details
Air Volume (CFM) | 110, 50, 80 |
|---|---|
Amperage (amps) | 0.1, 0.15, 0.25 |
Area Heated (sq. ft.) | 110 sq ft |
Color/Finish | White |
Duct Compatible Sizes | 4 or 6 in |
Features | Adjustable Fan Speed, Heater, Light, Nightlight, Roomside Installation |
Grill Shape | Rectangle |
Housing Material | Metal |
Included | Hardware, Light Bulb, Nightlight Bulb |
Installation Type | Ceiling |
Light Bulb Type Included | Integrated LED |
Maximum Light Bulb Wattage (watts) | 10 |
Maximum Room Size (sq. ft.) | 110 |
Mount Type | Flush Mount |
Number of Bulbs Required | 0 |
Pack Size | 1 |
Product Weight (lb.) | 15.1 lb |
Returnable | 90-Day |
Room Size | Large Room Fan |
Voltage (V) | 120 V |
Wattage (watts) | 12, 4.5, 7.4 |
Warranty / Certifications
Manufacturer Warranty | 6 years/ECM Motor & 3 years all other parts |
|---|
Questions & Answers
I have a 1985 era heat light vent fan controled by a wall switch with 4 controls, the 4 controls the separate main room light. Will the other 3 controls on the switch that control the vent, heater and fan light functions work on this WhisperWarm fan?
Yes, you can use a four‑function wall switch to control the WhisperWarm DC fan as long as each function has its own switched hot wire. The WhisperWarm DC has separate wiring leads for the fan, heater, main LED light, and night‑light, and the night‑light must be wired to its own switch. Your 1985 four‑control switch will work if it provides four independent switched outputs and you have enough conductors running to the fan. If you’re unsure whether your wiring supports this, Panasonic Ventilation Support can confirm the setup: 1‑866‑292‑7299 or ventfans@us.panasonic.com.
I installed a new Panasonic WhisperWarm for my mom's bathroom this week. The light is not bright as the same one I bought for my bathroom a few years ago. It is just a little brighter than my WhisperWarm's night light. What could be wrong?
A new WhisperWarm DC light shouldn’t be that dim. When it is, it’s usually because the LED panel isn’t fully plugged in or the LED module is defective. This model uses a 10W LED chip panel, and a bad connection or faulty panel will make it look only slightly brighter than the night‑light. Your older unit likely has a different LED assembly, but if the new one is unusually dim, the light module probably needs replacement, which Panasonic supports since the LED has a 5‑year warranty.
Does this need two separate circuits - one for heat and one for light/fan? Or will a single 20amp supply (though separately switched) suffice?
As long as you’re using the required dedicated 20‑amp circuit, all features (fan, light, night‑light, heater) can be wired to come on together from one switch. Just keep in mind that doing this means the heater, fan, and lights will all turn on at the same time. If you want to control features separately, then they will need to be on their own switch with the heater requiring its own 20amp circuit.
Is there independent control of each feature or does everything turn on at once?
Yes, each feature (fan, heater, LED light, and night light) can be controlled independently when wired to a multi‑function switch, and the heater must be on its own 20‑amp dedicated switch, while the fan and lights can be wired to standard switches
I can’t seem to get just the fan running. When I turn the fan switch the heat comes on also. The heat only switch works and the light switch works.
There is only 1 motor in this unit for both venting and heat distribution. If the motor runs in heat than it should run for venting. Please verify that the wiring from the switch is correctly connected to the venting circuit in the units electrical j-box.
what switch is there for the panasonic FV-0511VHL1
The FV‑0511VHL1 can be controlled with separate switches for the fan, heater, and light. Panasonic makes a dedicated multi‑function switch (FV‑WCSW41‑W), but it isn’t sold at Home Depot. If you're shopping at Home Depot, you can use a multi‑function/stacked switch such as a triple‑rocker, or install three individual switches—one for each function. Just note that the heater requires its own 20‑amp circuit as specified in the installation manual.
Which switch is recommended for the Panasonic WhisperWarm DC FV-0511VHL1?
We recommend the Panasonic FV‑WCSW41-W EcoSwitch. It’s a four-function wall switch that gives you separate controls for the fan, heater, light, and night-light. If you choose a different switch, make sure it’s rated for 20 amps. For the best experience and full functionality of your WhisperWarm fan, a 4-function switch is highly recommended.
how bright is the light
This fan is 750 lumens which is a warm white color.
