18,000 BTU 1.5 Ton 19 SEER2 Ductless Mini Split Air Conditioner Heat Pump Variable Speed DC Inverter+ System 208/230V

$1088.00
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Offers 18,000 BTUs of year-round heating and cooling output
  • Designed with variable speed inverter technology to save energy
  • Features very quiet performance and an all-in-one 16' install kit
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Offers 18,000 BTUs of year-round heating and cooling output
  • Designed with variable speed inverter technology to save energy
  • Features very quiet performance and an all-in-one 16' install kit
About This Product

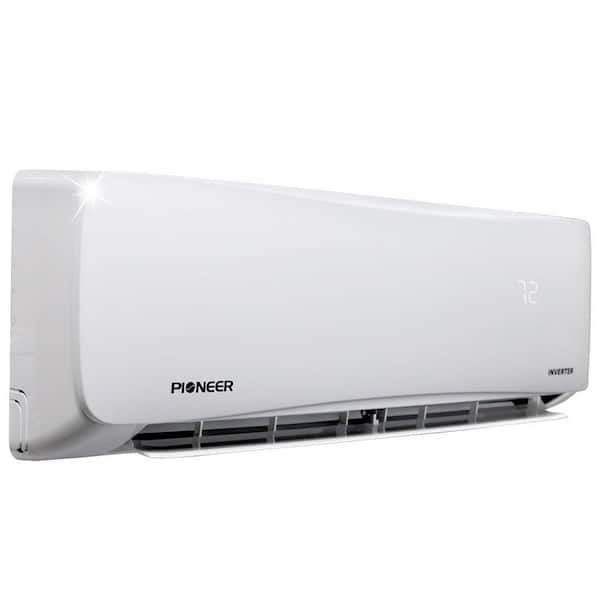

For full technical specs and other Information, please refer to the pdhvac website. Pioneer's newest WYS series wall mount mini split ductless Inverter+ air conditioning and heat pump system allows heating or cooling any contiguous area, quietly, effectively and efficiently. Pioneer brand WYS series ductless split heat pump. WYS is a DC Inverter driven system with variable speed compressor, providing very high efficiency levels. Included wireless remote digital controller allows the users easily select among the 4 operating modes; cooling, heating, dehumidification and ventilation. Additionally, an automatic switch-over mode is available for totally automatic operation through it's on board computer. A timer function allows the user to set the system to start or stop running at a certain time. Night mode function automatically adopts the temperature settings to the naturally changing body temperature levels during the night. Auto restart function memorizes all settings in case of a temporary power failure and restarts the system to continue running the same way after the power is reconnected. An optional Cloud programmable wireless Internet remote access function is also available. Smart buyers choose Pioneer brand DC Inverter+ split systems for their top quality, reliability and performance, available at extremely affordable prices.

  • Cooling capacity (range) : 18,000 (3,900 to 20,000) BTU/h, cooling efficiency: 19 SEER2/10.5 EER2
  • Heating capacity (range) : 18,800 (6,300 to 19,400) BTU/h, heating efficiency: 8.7 HSPF2/2.93 C.O.P.
  • Voltage: 208~230V, 60Hz, 1Ph

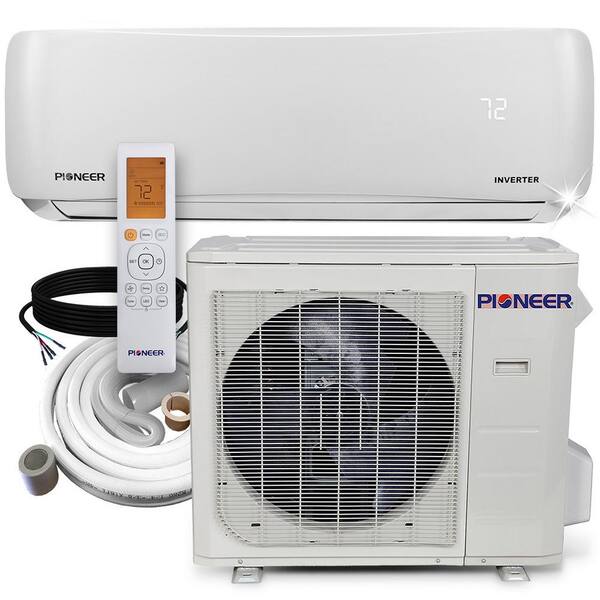

  • Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with optional Wi-Fi, 16 ft. L line set with other installation accessories
  • R410A pre-charged outdoor unit, accommodating line lengths up to 25 ft. long
  • Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by: UL, AHRI, DOE for safety, performance and efficiency
  • WYS product family is available in different capacities from 9,000 BTU/hr to 36,000 BTU/hr for various residential and light commercial applications
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS
Product ID #: 322261063Internet #: 810102180926Model #: WYS018GMFI20RL-16
caret

Specifications

Dimensions

Air handler depth (in.)8.5Air handler height (in.)12.5
Air handler width (in.)38Condenser depth (in.)13
Condenser height (in.)21.8Condenser width (in.)31.6

Details

Air direction/circulation2-wayAir handler weight (lb.)23.8
Amperage (A)7.5 ABTU Cooling Rating18000 BTU
BTU Heat Rating18500 BTUColor FamilyWhite
Color/FinishWhiteCondenser weight (lb.)73.9
Coverage Area (sq. ft.)700Decibel (Sound) Rating30 dBA
Decibel Rating30 dBAFilter TypeWashable
IncludedHeater, Remote Control, Self-diagnostic toolsLine Set Length (Ft.)16 ft
Mini Split FeaturesAuto cool, Defrost, Fan only option, Overload protection, Programmable, Sleep setting, WifiMinimum Outdoor Temperature (F)-13
Mount LocationWall MountNumber of cool settings26
Number of Fan SpeedsVariableNumber of Tons1.5 ton
Pack Size1Returnable90-Day
Voltage (v)208/230vWattage (watts)1730
Zone Capacity1 Zone

Warranty / Certifications

Certifications and ListingsAHRI Certified, ISO Certified, UL ListedManufacturer WarrantyFive year parts warranty covering all components, upon proper registration after installation.
Seasonal Energy Efficiency Ratio (SEER)19
caret

Questions & Answers

469Questions
caret
Q:my garage is 528 Sq.Ft. and based on 27cu per sq/ft I need 14,256 Btu's, does that mean I have to go to 18,000 but unit
by|Feb 26, 2024
2 Answers
Answer This Question

A:  Yes, you want the extra capacity for days with extreme weather conditions. Mike

by|Feb 26, 2024

A:  Thanks

by|Feb 27, 2024
    caret
    Q:What’s the amperage?
    by|Feb 25, 2024
    1 Answer
    Answer This Question

    A:  See the specifications tab above.

    by|Feb 26, 2024
      caret
      Q:It comes with an inverter. Dose that mean it can be hooked up on a solar generator?
      by|Feb 25, 2024
      1 Answer
      Answer This Question

      A:  NO. Inverter signifies the internal variable speed driver system for the components. You need AC power input.

      by|Feb 26, 2024
        caret
        Q:What size room does it work
        by|Feb 15, 2024
        1 Answer
        Answer This Question

        A:  Depends on many different conditions about your location and the type of structure you have. Rough capacity estimate can be calculated based on 27 BTUs per square foot.

        by|Feb 25, 2024
          Showing 1-4 of 469
          caret

          Customer Reviews

          4.5 out of 5
          • 4.5 out of 654 reviews
          • 78% recommend this product
          Filter by:
          Showing 1-10 of 654 reviews
          It has only been 3 weeks since I had the unit installed and we love it. Even on the hottest days (96 degrees) it has kept the shed cool and comfortable, while we continue to prep the shed as an added recreational space.
          by
          • Verified Purchase
          1 found this review helpful
          works great!
          Very happy with this unit. High 20.5 SEER makes it efficient. Both indoor and outdoor units are very quiet. Hardest part of the installation was putting in the UVC strip accessory. I also used the Pioneer linset cover set. Finished the job nicely
          by
            • Recommended
            Unit comes well packaged. The instructions are a little sketchy, but doable. I had to add a condensate pump due to my install location. Wi-Fi should be standard, but the Wi-Fi modules are out of stock everywhere. Cools wonderfully. Wish there was a service port on the high side. Wish they used 1/4 flare for the low service port like the rest of the world. Had to buy a 5/16 to 1/4 flare adapter to add some 410 since I used a 25’ line set. Makes our bedroom super cold:)
            by
            • Verified Purchase
            1 found this review helpful
            Very good quality , I installed it myself with just a few YouTube videos and the purchase of a vacuum pump and gauges
            by
            • Verified Purchase
            1 found this review helpful
            Super Quiet
            I bought this unit to cool our master bedroom. I am a light sleeper and this is super quiet on standard low fan mode, it has a quiet mode that is almost silent. Instructions were straight forward and easy to follow. I am very happy with this 9,000 BTU mini split and will be installing an 18,000 BTU in the dining/living room as well. It will be another Pioneer.
            by
              • Recommended
              3 found this review helpful
              Relatively easy install for DIYer.
              I'm a DIYer and this install didn't seem overly difficult and was not. The installation instructions are thorough and easily followed. Hanging the inside unit requires planning and forethought as you can hide the hole or have it extend beyond the inside unit. I hid the hole for the lines so attaching the lines and making the necessary bend took a little extra time. I hung the outside unit and shortened the lines for a clean professional look. The unit has been in operation a few weeks and has worked great.
              by
                • Recommended
                Tiny remote letters.
                Love the unit but can't read the tiny remote selections. How about a better remote.
                by
                  • Recommended
                  7 found this review helpful
                  Good system for the money
                  Easy install, works very well and very quiet, only issue is the line set is cheap. High side line leaked at both ends, had to cut and re flair and line cracked after flailing. Once shortened a second time on 1 end the system vacuumed down and held vacuum.
                  by
                  • Verified Purchase
                  • Recommended
                  4 found this review helpful
                  P1 and E1 error codes after 2 years.
                  Operated perfectly up until this past Monday. Unit no longer cools to desired setting. A tech from A.B. May came out and found that the unit had a singed system board. $800 just for the board. May also need freon.
                  by
                    15 found this review helpful
                    Great performing and quiet unit. Temp control could be a little less lazy.
                    I DIY installed this one. It was overall pretty straightforward but it definitely is a more advanced skill level. I have a background in automotive a/c so I own a vacuum pump and understood what to do. I also had to reflare the lines because on the indoor unit side, the lengths are uneven so you don't have both connections at the same place, which makes sense because it would make it hard to stuff into a lineset cover if they were both at the same spot. The problem is that the lineset was backwards from the lines coming from the air handler. For example, the air handler had a short suction line and a long discharge line. The lineset should have a long suction line and a short discharge line so everything meets up. Well the lineset had the long discharge line so the suction line wouldn't meet. That was dumb, but fortunately I have the correct flaring tool so I was able to correct it. Also took a few feet off the other side for the condenser unit since I didn't need quite 16 ft and didn't want to do something like coil the line behind the unit. As far as performance. It's fantastic. I installed it in early spring and we had some chilly days so I actually got to use the heating function first. It heats well but we're talking about days in the high 30's/ low 40's. One word of note is that for the heating function. you kinda have to use the follow-me function on the remote because without it, it senses indoor temp from the air intake at the top of the unit. Hot air rises. See the problem? The heat it's producing rises to the top of the room and makes it think the room is warmer than it is, ending the heating cycle before the actual room is heated. For cooling we've had a few days in the 90's already and it has absolutely no issue cooling my entire 800sqft first floor without breaking a sweat. There is one issue that is somewhat annoying, in that it either overcools or undercools depending on what it feels like. Usually by 2 degrees. If I have it set to 77F, it will allow cooling to as low as 75F (even with follow me enabled). Or sometimes if it's satisfied and it turns the compressor off it will sometimes let the temp get as high as 79F before it starts cooling again. This 4F swing may not seem like a lot but I can definitely feel it. The unit knows what the temp is because this is what its reporting via it's own app. I have a Midea (yes this Pioneer unit is manufactured by Midea. Everything is) inverter window-ac which is very similar in operation to this mini split and it does the exact same thing. This is just how they have their temperature controlled strategy programmed. A few more notes for the nerdy or anyone deep into home automation. There is an optional wifi dongle available for it for control through the Midea app. I actually already had two of these dongles because 2 other window a/c's I have came with them (also both manufactured by Midea). They're OSK103 dongles. I plugged it into the Pioneer and it works. Here's where it gets interesting. Despite what it looks like it's not a USB stick rather it's a serial UART connection. There's an open source project that allows you to use a software package called ESPHome on ESP8266/32 wifi microcontrollers that allow you to bypass the Midea app altogether and use it in Home Assistant. I tried it and it actually works great. Through some automation programming I should be able to work around the above mentioned temp control issues by shutting the unit off if it starts acting dumb and overcooling the room.
                    by
                      • Recommended
                      36 found this review helpful
