#1 Home Improvement Retailer

Internet # 311647587

Model # WYS009AMFI22RL-16

Store SKU # 1004835494

9,000 BTU 3/4 Ton 22.7 SEER2 Ductless Mini Split ENERGY STAR Inverter++ Wall-Mounted Air Conditioner Heat Pump 110/120V

$968.00
/set
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Ductless AC system with a heat pump ensures energy-efficient use
  • Variable fan speed delivers enhanced performance
  • Remote control allows for convenient operation
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

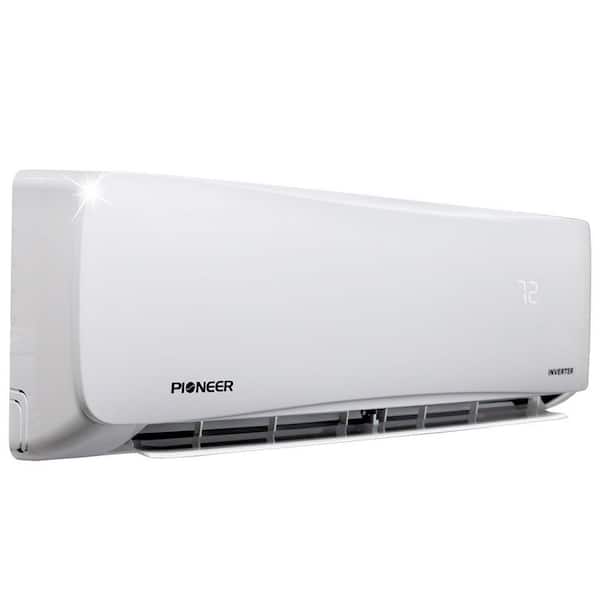

Pioneer's ENERGY STAR WYS series wall-mounted mini split ductless Inverter++ air conditioning and heat pump system allows heating or cooling any contiguous area, quietly, effectively, and efficiently. Pioneer brand WYS series ductless split heat pump is a DC Inverter driven system with a variable speed compressor, providing very high efficiency levels. The Inverter++ series ranges from SEER efficiencies of 20 to 23 and the system can HEAT down to minus 13° Fahrenheit. Included wireless remote digital controller allows the users easily select among the 4 operating modes; cooling, heating, dehumidification and ventilation. The system is also pre-charged with refrigerant inside the outdoor unit. Additionally, an automatic switch-over mode is available for totally automatic operation through the onboard computer. A timer function allows the user to set the system to start or stop running at a certain time. Night mode function automatically adopts the temperature settings to the naturally changing body temperature levels during the night. Auto restart function memorizes all settings in case of a temporary power failure and restarts the system to continue running the same way after the power is reconnected. An optional Cloud programmable wireless Internet remote access function is also available. Smart buyers choose Pioneer brand DC Inverter++ split systems for their top quality, reliability and performance, available at extremely affordable prices.

Highlights

  • Cooling capacity (range): 9,000 (3,500 to 12,150) BTU/h, cooling efficiency: 22.7 SEER2/12.5 EER2
  • Heating capacity (range) : 9,000 (4,600 to 12,904) BTU/h, heating efficiency: 10.0 HSPF2/3.86 C.O.P.
  • Voltage: 110-Volt/120-Volt, 60 Hz, 1 Ph

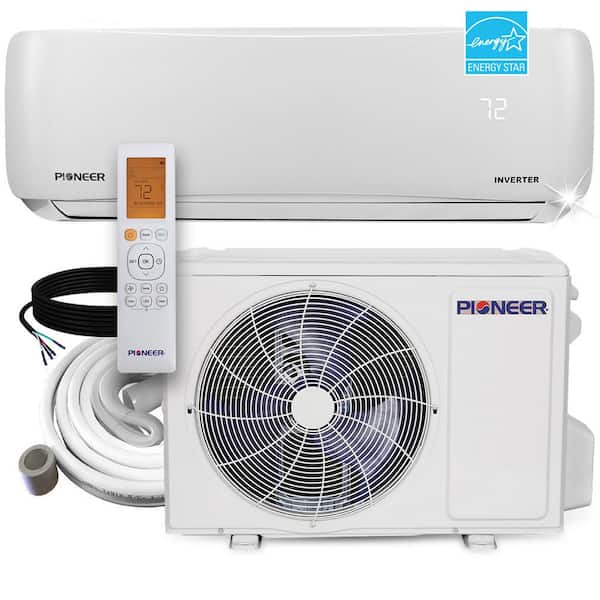

  • Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with optional Wi-Fi, 16 ft. L line set with other installation accessories
  • Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
  • Low-ambient system can heat down to -13°F outdoor ambient temperatures
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by: UL, AHRI, DOE for safety, performance and efficiency
  • WYS inverter++ product family is available in different capacities from 9,000 BTU/h to 24,000 BTU/h for various residential and light commercial applications and are ENERGY STAR rated
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
  • R410A pre-charged outdoor unit, accommodating lineset lengths up to 25 ft. L
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 311647587

Model # WYS009AMFI22RL-16

Store SKU # 1004835494

Specifications

Dimensions

Air handler depth (in.)

7.3

Air handler height (in.)

11.6

Air handler width (in.)

31.5

Condenser depth (in.)

11.8

Condenser height (in.)

21.8

Condenser width (in.)

31.3

Details

Air direction/circulation

1-way

Air handler weight (lb.)

18

Amperage (A)

5.8 A

BTU Cooling Rating

9000 BTU

BTU Heat Rating

9000 BTU

Color Family

White

Color/Finish

White

Condenser weight (lb.)

64

Coverage Area (sq. ft.)

350

Decibel (Sound) Rating

24 dBA

Decibel Rating

24 dBA

Filter Type

Washable

Included

Accessories, Heater, Mounting Hardware, Remote Control, Self-diagnostic tools

Line Set Length (Ft.)

16 ft

Mini Split Features

Auto cool, Defrost, Fan only option, Overload protection, Programmable, Sleep setting, Timer, Wifi

Minimum Outdoor Temperature (F)

-13

Mount Location

Wall Mount

Number of cool settings

26

Number of Fan Speeds

Variable

Number of Tons

.75 ton

Pack Size

1

Returnable

90-Day

Voltage (v)

110/120v

Wattage (watts)

666

Zone Capacity

1 Zone

Warranty / Certifications

Certifications and Listings

AHRI Certified, Energy Star, ISO Certified, UL Listed

Manufacturer Warranty

Five year parts warranty covering all components, upon proper registration after installation.

Seasonal Energy Efficiency Ratio (SEER)

22.7

Questions & Answers

192Questions
caret
Q:For a Pioneer 24,000 btu 2 ton unit what is the wire size and breaker, thanks.
by|Apr 16, 2024
1 Answer
Answer This Question

A:  Hello! This particular system would take a 30A double-pole breaker. The corresponding wire would be 10 AWG, with 2 hots and a ground, no neutral.

by|Apr 17, 2024
    caret
    Q:What should be the circuit breaker size for Model # WYS009AMFI22RL, 3/4 ton, 9000 BTU, 120 volt unit?
    by|Apr 10, 2024
    2 Answers
    Answer This Question

    A:  Hello! This would take a 20 amp single-bole breaker with 12 AWG wire (3 conductor for L/N/G).

    by|Apr 12, 2024

      A:  15A Min or 20A Max.

      by|Apr 12, 2024
        caret
        Q:Where is this product made?
        by|Feb 26, 2024
        0 Answer
        Answer This Question
        caret
        Q:Does it come with a longer line set? I'm afraid I'm going to have to hide this from the HOA. 25 Foot would be perfect. 16 feet and I have to sneak out at 2 AM and move my fence forward three feet without anyone noticing.
        by|Feb 25, 2024
        1 Answer
        Answer This Question

        A:  YES, 25, 33 and 50' sets are available but only at the time of purchasing with special request. Please see pioneerminisplit com for info and details.

        by|Feb 26, 2024
          Showing 1-4 of 192

          Customer Reviews

          4.7 out of 5

          • 4.7 out of 120 reviews
          • 86% recommend this product
          Filter by:
          Showing 1-10 of 120 reviews
          Outstanding Pioneer Mini-Split AC & Heating System
          After we completed the construction of our 117 square foot pottery studio in our Arizona back yard, we needed to install heat and air conditioning. After much research, we chose this unit. Reviews were great on it, we found it manufactured with quality components and looked fantastic when installed. With the AC on, it puts out very cold air and when we switched to heat, the warm air was very nice. Loved it. Appearance after installation was great. Very Quiet! Hire a AC tech to install it !
          by
            • Recommended
            The Best unit ever!!!
            This unit was delivered promptly and was very easy to install ,great directions.I highly recommend the Pioneer 24,000 BTU unit!! We have installed one in our upstairs and downstairs and we are very impressed!!!I would definitely buy again.
            by
              • Recommended
              Pioneer trusted worldwide, best value here!
              I've travelled to many tropical countries in Asia, the mini splits are mostly Pioneer and they always worked well. I am a capable diy'r with strong technical skills, my family member is an electrician. After a $150 vacuum pump and a few youtube vids this thing was a cakewalk to install professionally. The Pioneer website provides extremely good tech support via chat. This is one of my best purchases and has saved me thousands of dollars.
              by
                • Recommended
                3 found this review helpful
                Perfect!!!
                We put this in the smoking loung of our cigar store. The room is 550sq ft and it works awesome!! Easy to program, easy to control. Still need to connect it to WiFi. We purchased it from here but had a local HVAC company instll. Still need to finish the rest of the wall so I will update photos when finished!!
                by
                  • Recommended
                  2 found this review helpful
                  Great system, tricky install
                  So far this mini split is performing well and the build quality is great. My only negative feedback is that the installation guide could use more detail- it seemed to leave some key details out. I'd rather it be twice as long but not leave me guessing. I had hoped to install this completely by myself but had to call in a professional for the final few steps.
                  by
                    • Recommended
                    1 found this review helpful
                    Review of Pioneer Energy-Star 12,000 BTU heat pump
                    I installed this myself, over a period of three days. Everything went very well, installation was a breeze. Installation was in a 39 foot 5th wheel trailer. With an outside temp of 81 degrees and a 72 degree setting on automatic, the unit only pulls 6 amps, so it should prove to be very economical. Cooling RV's with the 15000 BTU roof units is horribly inefficient and this is the answer:-) The 24 DB interior sound level on this is incredible as you can hardly hear it in operation
                    by
                      • Recommended
                      2 found this review helpful
                      Awesome unit for a 20x20 insulated garage!
                      I have a finished (8' ceiling), insulated (Including the 16' garage door small 20x20 garage that I do a lot of work in. I was looking for a unit that would be relatively economical to operate, operate on 110/115 hose currant so I wouldn't have to drop an expensive 220 line and keep me reasonable cool & dry in the Saint Louis summer and warm in the summer. I installed this unit myself, only one hole has to be drilled into the wall on either end of the unit (Actually behind the unit so you don't see it). Very straight forward install. I DID have a HVAC guy come out and sign off on my install for warranty purposes. I installed this 18 months ago, so two summers and now going on my second winter. I love this thing! In the summer I set it at 79-82 and it keeps the garage DRY. I can go cooler if needed. For the winter I wish the temperature would go down to say the middle 40's instead of 62. However, since the temp reads close to the ceiling, 62 is actually about 54-56 at people level. The ONLY issue: When it gets really cold, single numbers and below it's my understanding you need to shut the system down so it doesn't freeze up. I run my portable Buddy propane heater on a 20 pound tank usually on low (4000BTU) that keeps the garage in the middle to low 40's. Overall a GREAT unit for 400 square feet
                      by
                        • Recommended
                        5 found this review helpful
                        This was my first mini split install. Watched several you tube videos, so it went pretty well. H...
                        This was my first mini split install. Watched several you tube videos, so it went pretty well. Had the lines cut and flared, system vacuumed by a friend who is a HVAC guy. Now this system works great. Cools our house to a comfortable temp just on low. Definitely would recommend.
                        by
                        • Verified Purchase
                        • Recommended
                        1 found this review helpful
                        • Verified Purchase
                        • Verified Purchase
                        Showing 1-10 of 120 reviews
