Low-Ambient 18,000 BTU 1.5 Ton 19 SEER2 Ductless Mini Split Wall Mounted Inverter Air Conditioner w/Heat Pump 208/230V

$998.00
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Ductless heat pump brings reliable heating and cooling
  • DC inverter ensures high performance and low power consumption
  • All-in-one accessory kit saves time and simplifies installation
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Experience instant relief the moment you enter your room with Pioneer's latest Diamante series high-wall ductless mini split heat pumps. This all-new product line was designed and developed to bring a truly affordable heating and cooling solution without sacrificing desirable features. The variable-speed inverter technology and high-efficiency 19 SEER2 average rating guarantees substantial savings from your monthly energy bill. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, to perfectly reach all directions of the room. All systems in this series come equipped with an auxiliary strip heater in the condensing unit, to provide hyper-heating even in frigid -13°F temperatures. And with noise measurements as low as 27 dB, you can sleep peacefully with air conditioning quieter than even an empty library. In addition, all systems come pre-packed with a full 16 ft. installation kit, so your ductless mini split heat pump system is ready to be up and running in a single afternoon. Browse our newest selection of wall mounted Diamante split systems today!

Highlights

  • Cooling capacity of 18,000 BTU/hour with 19 SEER2 & 9.4 EER2 efficiency
  • Heating capacity of 19,600 BTU/H with 8.5 HSPF2 & 3.21 COP2 efficiency
  • Voltage of 208V - 230V, 60Hz, 1Ph

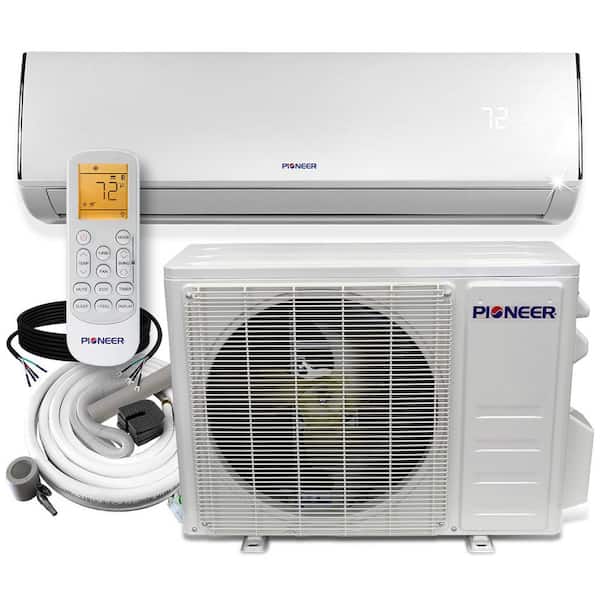

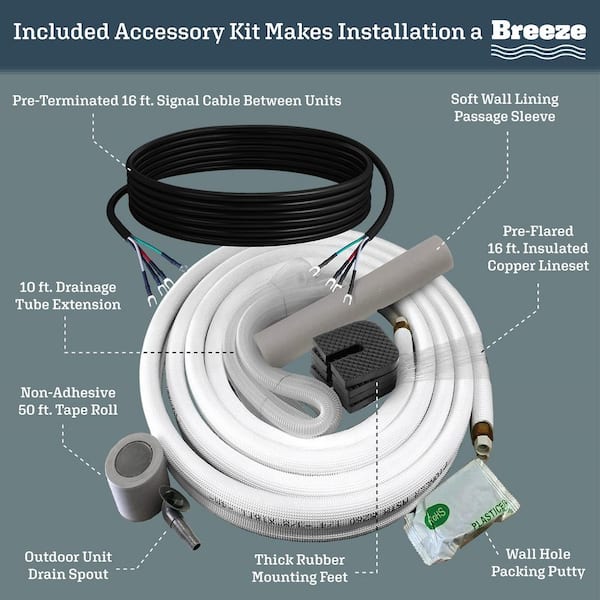

  • Complete system set including indoor fan coil section, outdoor condenser section, wireless remote controller with remote holder, 16 ft. line set with other installation accessories and free vibration absorber feet for the condensing unit
  • Unsurpassed support hotline covers installation, use, troubleshooting, warranty and parts issues
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by ETL, AHRI, DOE for safety, performance and efficiency
  • Diamante Pro series carries a full line of low-ambient wall-mounted mini splits with capacities ranging from 9,000 BTU/hour to 36,000 BTU/hour for various residential and light commercial applications
  • R410A pre-charged outdoor unit, accommodating line lengths up to 25 ft. long
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 326231281

Model # WYT018GLFI19RL

Store SKU # 1009974642

Specifications

Dimensions

Air handler depth (in.)

8.66

Air handler height (in.)

12.40

Air handler width (in.)

39.76

Condenser depth (in.)

13.74

Condenser height (in.)

23.81

Condenser width (in.)

30.70

Details

Air direction/circulation

2-way

Air handler weight (lb.)

35.3

Amperage (A)

8.2 A

BTU Cooling Rating

18000 BTU

BTU Heat Rating

19800 BTU

Color Family

White

Color/Finish

White

Condenser weight (lb.)

70.60

Coverage Area (sq. ft.)

700

Decibel (Sound) Rating

54 dBA

Decibel Rating

54 dBA

Filter Type

Washable

Included

Accessories, Heater, Mounting Hardware, Remote Control, Self-diagnostic tools

Line Set Length (Ft.)

16 ft

Mini Split Features

Auto cool, Automatic shutoff, Defrost, Ductless, Fan only option, Overload protection, Programmable, Sleep setting

Minimum Outdoor Temperature (F)

-13

Mount Location

Wall Mount

Number of cool settings

26

Number of Fan Speeds

Variable

Number of Tons

1.5 ton

Pack Size

1

Returnable

90-Day

Voltage (v)

208/230v

Wattage (watts)

1880

Zone Capacity

1 Zone

Warranty / Certifications

Certifications and Listings

AHRI Certified, ETL Listed, ISO Certified, NRCAN

Manufacturer Warranty

Five year parts warranty covering all components, upon proper registration after installation.

Seasonal Energy Efficiency Ratio (SEER)

19
