Low-Ambient 24,000 BTU 2 Ton 18 SEER Ductless Mini Split Wall Mounted Inverter Air Conditioner with Heat Pump 208/230V

$1748.00
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Ductless heat pump brings reliable heating and cooling
  • DC inverter ensures high performance and low power consumption
  • All-in-one accessory kit saves time and simplifies installation
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

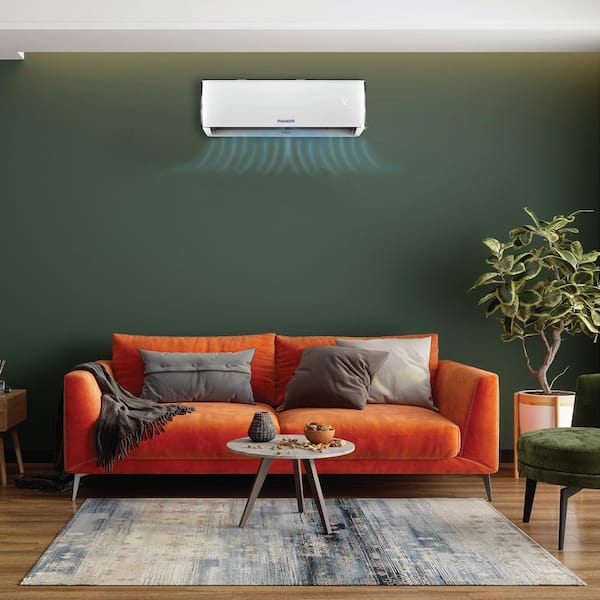

Cool down your space with this Low-Ambient 24,000 BTU 2 Ton 18 SEER Ductless Mini Split Wall Mounted Inverter Air Conditioner with Heat Pump 208/230V. It features a built-in timer, freeze protection and sleep mode. Prepare for an easy installation process.

Highlights

  • Cooling capacity of 24,000 BTU/hour with 18.0 SEER efficiency
  • Heating capacity of 24,500 BTU/H with 10.0 HSPF efficiency
  • Voltage of 208V - 230V, 60Hz, 1Ph

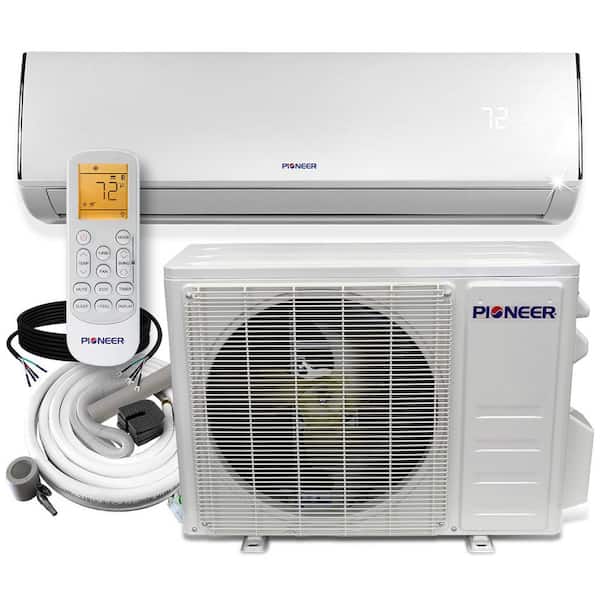

  • Complete system set including indoor fan coil section, outdoor condenser section, wireless remote controller with remote holder, 16 ft. line set with other installation accessories and free vibration absorber feet for the condensing unit
  • Unsurpassed support hotline covers installation, use, troubleshooting, warranty and parts issues
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by ETL, AHRI, DOE for safety, performance and efficiency
  • Diamante series carries a full line of low-ambient wall-mounted mini splits with capacities ranging from 9,000 BTU/hour to 36,000 BTU/hour for various residential and light commercial applications
  • R410A pre-charged outdoor unit, accommodating line lengths up to 25 ft. long
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 314094741

Model # WYT024GLFI19RL

Specifications

Dimensions

Air handler depth (in.)

10.25

Air handler height (in.)

13.37

Air handler width (in.)

46.6

Condenser depth (in.)

15

Condenser height (in.)

27.5

Condenser width (in.)

33.2

Details

Air direction/circulation

2-way

Air handler weight (lb.)

37.5

Amperage (A)

10.5 A

BTU Cooling Rating

24000 BTU

BTU Heat Rating

24500 BTU

Color Family

White

Color/Finish

White

Condenser weight (lb.)

99

Coverage Area (sq. ft.)

1000

Decibel (Sound) Rating

42 dBA

Decibel Rating

42 dBA

Filter Type

Washable

Included

Heater, Remote Control, Self-diagnostic tools

Line Set Length (Ft.)

16 ft

Mini Split Features

Auto cool, Automatic shutoff, Defrost, Fan only option, Overload protection, Programmable, Sleep setting, Wifi

Minimum Outdoor Temperature (F)

-13

Mount Location

Wall Mount

Number of cool settings

26

Number of Fan Speeds

Variable

Number of Tons

2 ton

Pack Size

1

Returnable

90-Day

Voltage (v)

208/230v

Wattage (watts)

961

Zone Capacity

1 Zone

Warranty / Certifications

Certifications and Listings

AHRI Certified, ETL Listed, ISO Certified

Manufacturer Warranty

Five year parts warranty covering all components, upon proper registration after installation.

Seasonal Energy Efficiency Ratio (SEER)

18

Questions & Answers

527Questions
caret
Q:Can this be plugged in to a standard 110 electrical house plug?
by|Apr 16, 2024
1 Answer
Answer This Question

A:  Hello! This is a 230V system and thus cannot use a 110V supply. It should be hard-wired to a dedicated breaker of sufficient voltage and amp rating.

by|Apr 17, 2024
    caret
    Q:Lost some of the terminal screws on outside unit, can you tell me what size they are so I can purchase more? I have a 230v system
    by|Apr 7, 2024
    0 Answer
    Answer This Question
    caret
    Q:HOW MUCH WALL SPACE DO YOU NEED TO MOUNT THE UNIT
    by|Apr 2, 2024
    2 Answers
    Answer This Question

    A:  Below is a link to the installation guide. https://images.thdstatic.com/catalog/pdfImages/bb/bbd545ad-c8d8-429b-8604-f16be6756547.pdf Mike

    by|Apr 2, 2024

    A:  Hello! We would ask for at least 6 inches of clearance above the unit.

    by|Apr 3, 2024
      caret
      Q:Is this unit DIY?
      by|Apr 1, 2024
      2 Answers
      Answer This Question

      A:  Any unit can be DIY if you have the proper tools and some knowledge about installing them (and especially reading all supplied documents word by word). We recommend using our KWIK-E-VAC product for flushing the line sets.

      by|Apr 3, 2024

        A:  Hello! They can be DIY installed with proper preparation. The outside unit is factory pre-charged and the line sets are pre-flared to make it simple. It would be a medium-advanced project. The only part needing any specific knowledge is vacuuming the lines using a pump and pressure gauge prior to releasing the refrigerant into the lines, a step which can be bypassed using our easy to use Kwik-E-Vac line set flushing tool which skips that process. Home Depot item number 314537728

        by|Apr 3, 2024
          Showing 1-4 of 527

          Customer Reviews

          4.5 out of 5

          • 4.5 out of 159 reviews
          • 67% recommend this product
          Filter by:
          Showing 1-10 of 159 reviews
          Good Unit - Internal Rust After 1 Year
          This unit was purchased for a Bedroom Addition January 2022. I perform monthly maintenance check and clean filters regularly. The unit recently began sweating and dripping rusty water down the wall, which will require repainting. Further inspection shows that a metal clip that holds the coils in place has rusted. Why would a piece that is subject to rust be used in the internal components of the indoor unit? This will be an ongoing issue...
          by
            6 found this review helpful
            Arrived Unusable
            I’d love to give it 5 stars, but an electrician went to install it today and discovered that the heat pump front panel plate was damaged. There was a dent that went across the front of the panel plate and the top of the plate had a dent. It was damaged bad enough that the fan would not turn. The box was not damaged and the fan grate/guard was not damaged. So, as far as I’m concerned, the only way it got damaged was in manufacturing. If so, where was their QC and why did they let it out of the factory?
            by
              • Recommended
              9 found this review helpful
              Pioneer Mini Split
              I bought this mini split unit several weeks before getting it installed. There were no issues at all. The unit was installed easily came with all of the parts, and has been operating very well. What I liked the most since it has been placed in my one-bedroom studio is how quiet it is. If you are a light sleeper, you will not be disturbed. If you like cool, not cold air, there are options for that. My electric bill has not been excessive either. I am on a budget-billing plan with Georgia Power.
              by
                • Recommended
                4 found this review helpful
                Great unit for my workshop! If you have a small area HIGHLY recommended.
                An very nice easy-to-install unit. Used the mounting bracket (which I wish had the cross bar at the top) to mount the outside compressor. Mounted the inside unit using the supplied template. Ran the lines, connected power, vacuumed the lines down per the instructions. When all that was done opened the valves and the unit worked perfectly. Extremely quite and effective. Only pulls 7 amps at full power which reduces as the unit reaches the correct temp. Super!
                by
                • Verified Purchase
                4 found this review helpful
                Thermostat is way off
                The good: This mini split system was to install, it is so quiet that it's as quier as a refrigerator, and it looks great. The bad: The Thermostat is way off, but different in different modes. 1. In the "Heat" mode, it holds the temperature 11-12 degrees higher than the setting. The lowest setting is 61, which keeps the room at 72-73 degrees. 2. Using the "Eco" mode, it holds the temperature about 5-6 degrees lower than the setting. 3. Using the "Automatic" mode, it holds the temperature pretty close to the setting, which is great. Because it is winter and i just installed the unit 12 days ago, i do not yet know what will happen when we try the "Cool" mode. I will be contacting Pioneer to find out what they might be able to do about this problem. I hope there will be an easy solution.
                by
                • Verified Purchase
                13 found this review helpful
                Solid choice
                Simple, good directions and works great for heat and cold!
                by
                • Verified Purchase
                3 found this review helpful
                Split unit ductless
                I love this unit, pretty easy to install and it works amazingly well, my house hasn't been this cool in years, going to install a smaller unit in my downstairs addon room
                by
                • Verified Purchase
                • Recommended
                5 found this review helpful
                Absolutely Wonderful Solution for the price
                I purchased this unit (the 36,000 BTU) for our church sanctuary. The coverage of the unit as well as the super quiet operation are incredible. I am completely satisfied with this unit and will most likely look to Pioneer for any and all future needs for mini split units. Even the contactor that installed the unit said it was the nicest and easiest that he has ever hooked up, and is considering offering Pioneer as one of the brands he is willing to install.
                by
                  • Recommended
                  Install was as expected. I had it professionally installed Straight forward instruction and operations. Unit is easy to use and heat/ cools the area with ease. We did go up 0.5 ton for the space (420 sq. ft office/garage full insulated) being in Texas with the searing summers. Outside unit is extremely quite.
                  by
                  • Verified Purchase
                  It stopped working after two weeks, but there's no one anywhere that covers Pioneer systems to fix it.
                  by
                  • Verified Purchase
