Low-Ambient 9,000 BTU 0.75-Ton 22 SEER Wi-Fi Ductless Mini Split Inverter and Air Conditioner w/Heat Pump 110/120-Volt

$989.00
/set
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Ductless inverter heat pump offers year-round heating and cooling
  • WiFi enabled to allow control via device app or smart assistant
  • Premium design offers silent performance with minimal energy draw
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The search for perfect air is finally over with Pioneer's newest Diamante Ultra series mini split heat pump air conditioner. Building upon the best-selling Diamante series, the Ultra improves on those highly-regarded features and brings only the latest innovations to the table. With its breakthrough interior unit design, the high-wall mount air handler is as silent as a whisper, while powerful enough to move tons of air. The Ultra introduces an enhanced aesthetic design, with a frosted matte finish that blends elegantly and seamlessly into any room. This Wi-Fi enabled system also allows full access to settings and programming of functions, all from the comfort of your smartphone, tablet, or virtual assistant. All capacities are super-high 20-23 SEER efficiency and Energy-Star certified, qualifying for all of the best rebates while cutting up your costly electricity bill. The entire installation process was re-imagined and optimized via thoughtful design enhancements, such as a removable bottom base plate to expose a helpful viewing window and provide easy mounting plate detachment. All of the features and functions that you know and love are still here, including a dual-directional indoor airflow louver, extreme ambient outdoor performance, and an all-in-one accessory kit and remote control that makes installation and operation easier than ever before. Don't settle for less, use only the best - let Pioneer's Diamante Ultra series provide you with the perfect air you deserve.

Highlights

  • Ultra efficient cooling: 9,000 BTU/hour capacity with 22 SEER/12.5 SEER efficiency
  • Ultra efficient heating: 9,500 BTU/hour capacity with 10 HSPF efficiency/3.5 COP
  • Ultra silent operation: as quiet as 27 dB on the indoor section and 50 dB on the outdoor unit
  • Ultra capable performance: heating during -13°F weather and cooling during 140°F weather
  • Voltage of 110-Volt - 120-Volt, 60 Hz, 1 ph (20 Amp single-pole breaker recommended)
  • Wi-Fi enabled to program schedules and control functionality via free Pioneer app

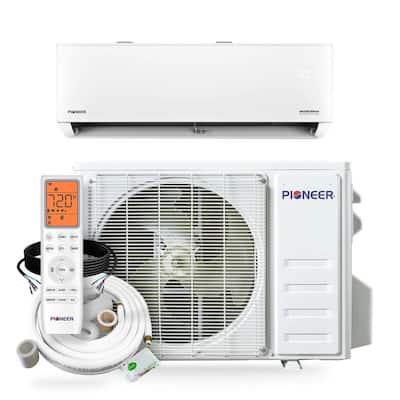

  • Complete system set including indoor fan coil section, outdoor condenser section, wireless remote controller with remote holder, 16 ft. line set with other installation accessories and free vibration absorber feet for the condensing unit
  • Certified by ETL, AHRI, DOE for safety, performance, and efficiency
  • R410A pre-charged outdoor unit, accommodating line lengths up to 25 ft. long
  • Diamante Ultra series carries a full line of low-ambient wall-mounted mini splits with capacities ranging from 9,000 BTU/hour to 24,000 BTU/hour for various residential and light commercial applications
  • Energy Star
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 321357970

Model # WYT009ALFI22RL

Specifications

Dimensions

Air handler depth (in.)

7.68

Air handler height (in.)

12

Details

Amperage (A)

20 A

Line Set Length (Ft.)

16 ft

Mini Split Features

Auto cool, Defrost, Fan only option, Mobile App, Programmable, Sleep setting, Timer, Wifi

Number of Fan Speeds

Variable

Number of Tons

.75 ton

Pack Size

1

Power Options

USB Connector

Remote Access

Remote Access

Requires Hub?

No Hub Required

Returnable

90-Day

Smart Home

Smart Home Enabled

Smart Home Protocol

Wi-Fi

Voice Control Hub Required

No Hub Required for Voice Control

Voltage (v)

110/120v

Wattage (watts)

710

Works With

Alexa, Alexa, Apple HomeKit, Google, Google Assistant, IFTTT, Siri

Zone Capacity

1 Zone

Warranty / Certifications

Certifications and Listings

AHRI Certified, ETL Listed, Energy Star, ISO Certified, NRCAN

Manufacturer Warranty

Five year parts warranty covering all components, upon proper registration after installation.

Seasonal Energy Efficiency Ratio (SEER)

22

Questions & Answers

102Questions
caret
Q:What is warranty period.
by|Apr 6, 2024
1 Answer
Answer This Question

A:  Click on PRODUCT DETAILS tab on the product listing page and see the links to the related documents. Including the warranty.

by|Apr 9, 2024
    caret
    Q:Does DIY install void the warranty?
    by|Mar 22, 2024
    1 Answer
    Answer This Question

    A:  Hello! As long as it is installed carefully, correctly, and the warranty form is filled out and submitted, you will receive full warranty.

    by|Mar 30, 2024
      1 found this answer helpful
      caret
      Q:Do the Pioneer mini splits only operate using the remote control?
      by|Mar 16, 2024
      1 Answer
      Answer This Question

      A:  Optional Wifi modules with an App and wired controllers are also available.

      by|Mar 20, 2024
        caret
        Q:Does the power line go into the inside or outside unit?
        by|Jan 31, 2024
        1 Answer
        Answer This Question

        A:  Hello! When it comes to mini splits only the outside unit requires an electrical power supply. The indoor units are all powered by the outside unit via the included signal cable.

        by|Jan 31, 2024
          Showing 1-4 of 102

          Customer Reviews

          4.5 out of 5

          • 4.5 out of 67 reviews
          • 83% recommend this product
          Filter by:
          Showing 1-10 of 67 reviews
          It actually came damaged and I am awaiting a return
          by
          • Verified Purchase
          awesome unit
          Just installed this unit in my garage 20x24. I’m right at the max being 12k btu. Install took a full day. But that included running 220, drywall repair, cutting vinyl siding for the AC disconnect. The instructions were very detailed. A vacuum pump is a must for installing this unit. It cooled my garage to 75 after 3 hours (in Florida). Both the outside and inside units are super quiet. That’s what surprised me the most how quiet they are. 24 hrs in so far and im very satisfied. I still have some finishing work to do.
          by
            • Recommended
            I love it so far
            I love the unit so far. Installation was simple and straight forward. The unit runs quietly and cools the area off in no time. The condensation drain line seems a bit flimsy and I am concerned on how long it will last. Delivery was fast and there was no damage. I watched a few youtube videos before installing and it was helpful. I would recommend this unit.
            by
              • Recommended
              Love it so far
              I love the unit so far. Installation was simple and straight forward. The unit runs quietly and cools the area off in no time. The condensation drain line seems a bit flimsy and I am concerned on how long it will last. Delivery was fast and there was no damage. I watched a few youtube videos before installing and it was helpful. I would recommend this unit.
              by
                • Recommended
                Solid unit. Everything included for the install!
                I just installed this unit last week and it has been nothing but a dream. My HVAC guy was so impressed because he had never worked with this brand before. He was a bit skeptical about the brand, because he had only worked with the big names like Mitsubishi. I’m disappointed that they just raise the price by over $100 but thankfully my state has a utility rebate program that’s getting me back $500.
                by
                  • Recommended
                  Great product and customer service!
                  Minisplit is working great! Was able to install over a weekend on my own. A few things that I noticed with Pioneer: 1. Great factory flares 2. No damage at all during shipping 3. No runaround about DIY install. Others will not warranty product when installed by a homeowner, Pioneer does! 4. Great customer service who actually talk to you and answers your questions. 5. Innovating the process by even selling products to allow the installation without a vacuum pump. Would and will buy another.
                  by
                    • Recommended
                    3 found this review helpful
                    great and easy diy mini split
                    this is a great unit with one of the highest efficiency in the market. The installation process takes some time but it is simple if you follow the installation guide. in addition, I'd recommend watching couple of YouTube videos as it will help visualizing the installation process. The most intimidating part for me was line vacuum but, it is pretty straightforward. I missed in the manual the torque to be applied when connecting lines, so make sure that are tight to avoid leaks. I compared about 4 mini splits with Mr.Cool diy and buying additional tools needed (such as vacuum pump and flaring tool) is still cheaper by about $500.
                    by
                      • Recommended
                      2 found this review helpful
                      Easy Installation and works great
                      Installed this unit to cool/heat a new room at my house. Installation was easy. Make sure to read the manual and watch videos before you start. Took me about 6 hours. Everything worked great so far. 1 month. The wi-fi is great as I can adjust the unit from upstairs and I have it setup on a schedule. Unit is super quiet operating. My only suggestion would be for the unit to have separate cooling and heating setpoint in auto mode. I am very pleased with the product and the price.
                      by
                        • Recommended
                        1 found this review helpful
                        Quick and easy install.
                        The system was very easy to install. Just watched some of the videos on Youtube for this specific model. I followed the instructions in the manual for vacuuming down the system and charging it. It is super quiet for both the inside unit and the outside unit even when putting the fan in Turbo mode. Also having the app makes it nice to control and set a schedule for when you are away at work and when you're coming home.
                        by
                          • Recommended
                          Ac Home
                          The Anti-Dust Filter did not come with my new mini split and I need them
                          by
                            • Recommended
                            1 found this review helpful
