Product Overview

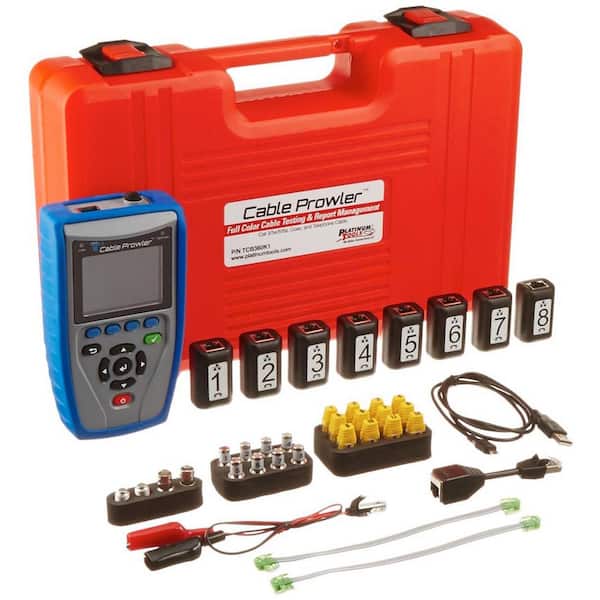

The Platinum TCB360K cable prowler PRO test kit combines the functions of a high-end cable tester and a length measurement tester, the capability to identify link status, link capability and PoE detection. The cable prowler has several applications for Cat 3/5e/6/6A, coax and telephone cables including measuring cable lengths and network testing of link capability, link status and link light. The prowler displays length measurement for each pair in feet or meters using TDR technology and detects the presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop. The internal memory allows you to save, download and output the results in full color and supports up to 8 testing ID remotes and 20 network and coax ID's - only mapping remotes. The ability to define cable names, save cable tests and print all the results (cable testing and network testing) saves you time. The PRO kit includes the following accessories: #1-8 network/tel test and ID remotes, #1-8 push on coax remotes, #1-12 RJ45 data remote set, a micro USB cable, two no-fault cables, an RJ45 port saver, an RJ45 to alligator 12 in., two F Female to F Female adapters, a BNC female to female adapter, a BNC female to F male adapter and a durable, molded plastic case with insert foam.
  • Displays length measurement for each pair in feet or meters using TDR technology
  • Full color graphical wire-mapping
  • Tests Ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, mis-wires, split pairs and reverses
  • Detects and reports current link speed and link capabilities for active Ethernet drops up to 1Gbps
  • Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
  • Ability to define cable name, save cable tests and print all results (cable testing and network testing)
  • View saved cable tests
  • Link light to identify location on a hub/switch/router port
  • Supports up to 20 network and coax ID - only mapping remotes
  • Supports up to 8 testing and ID smart remotes for network and telephone cables
  • Generates selectable tones on selected pins for use with tone tracers
  • Multilingual (English, French, Spanish, German and Italian)
  • Measure cable length and length to faults using TDR technology, network testing of link capability, link status and link light, test PoE to ensure adequate power for powered devices such as VoIP phones
  • Conduct single ended and remote cable tests with display of pass, wire map, ID and faults for network and coax cables, tone and trace cables, locate unlabeled network and coax cables with up to 20 remote identifiers, test multiple (up to 8) network and telephone drops with testing and identifier remotes, define a cable name for your cable test, save every cable test, export to your computer for record keeping and printing

Specifications

Dimensions

Product Depth (in.)
4 in
Product Height (in.)
8 in
Product Width (in.)
4 in

Details

Hand Tool Type
Multi-tool
Joint Type
Adjustable
Returnable
90-Day
Tools Product Type
Test Meter

Warranty / Certifications

Manufacturer Warranty
1 yr
