Internet #203032991

Model # U 9551

0049793195517

Prime-Line

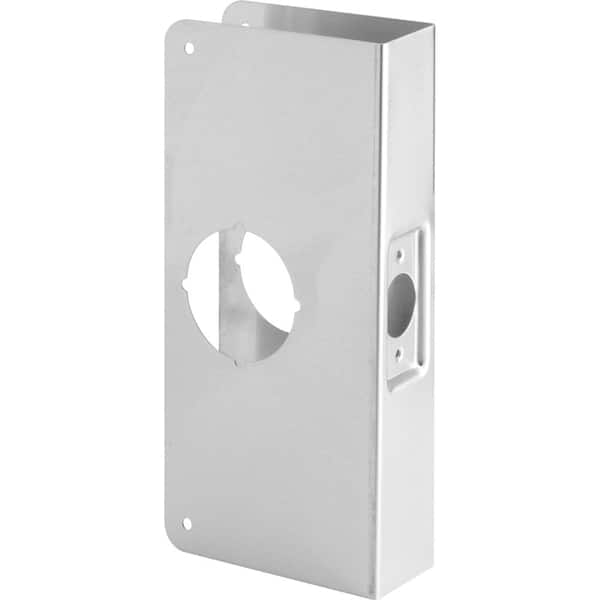

1-3/4 in. x 9 in. Thick Solid Brass Lock and Door Reinforcer 2-1/8 in. Single Bore 2-3/8 in. Backset

$ 12 66

Overview

This is a door lock reiforcer. It helps in preventing a forced entry. Can be used on any wood or metal door that is 1 3/4 in. wide. The reinforcer is made of stamped stainless steel. Over all size is 3 7/8 in. wide and 9 in. tall, has a 2 1/8 in. bore hole size and a 2 3/8 in. backset.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+

Product Overview

This is a door lock reiforcer. It helps in preventing a forced entry. Can be used on any wood or metal door that is 1 3/4 in. wide. The reinforcer is made of stamped stainless steel. Over all size is 3 7/8 in. wide and 9 in. tall, has a 2 1/8 in. bore hole size and a 2 3/8 in. backset.
  • Used on external doors to help reinforce lock
  • Designed to fit doors that are 1-3/4 in. thick doors
  • Features a mortised latch assembly area
  • Stamped stainless steel
  • Easy slip on design
  • Accommodates key-in-knob locksets or deadbolts with a 2-1/8 in. bore
  • All necessary mounting hardware is included

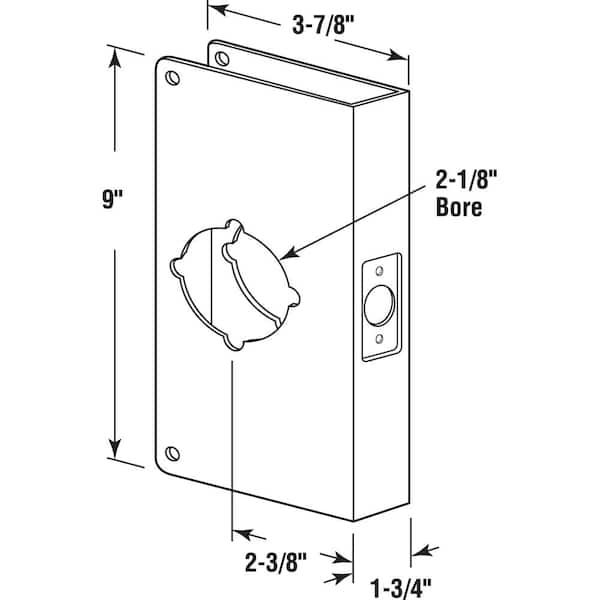

  • For further dimensional information, please see the Line Drawing

Product Overview

Model #: U 9551
Internet #: 203032991

This is a door lock reiforcer. It helps in preventing a forced entry. Can be used on any wood or metal door that is 1 3/4 in. wide. The reinforcer is made of stamped stainless steel. Over all size is 3 7/8 in. wide and 9 in. tall, has a 2 1/8 in. bore hole size and a 2 3/8 in. backset.

  • Used on external doors to help reinforce lock
  • Designed to fit doors that are 1-3/4 in. thick doors
  • Features a mortised latch assembly area
  • Stamped stainless steel
  • Easy slip on design
  • Accommodates key-in-knob locksets or deadbolts with a 2-1/8 in. bore
  • All necessary mounting hardware is included
  • For further dimensional information, please see the Line Drawing

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand First Watch Security Prime-Line Prime-Line Prime-Line
Name 2-3/8 in. x 1-3/4 in. Vintage Bronze Door Reinforcer 1-3/4 in. x 4-1/2 in. Thick Solid Brass Lock and Door Reinforcer 2-1/8 in. Single Bore 2-3/8 in. Backset 1-3/4 in. x 9 in. Thick Solid Brass Lock and Door Reinforcer 2-1/8 in. Single Bore 2-3/8 in. Backset 1-3/8 in. x 9 in. Thick Solid Brass Lock and Door Reinforcer, 2-1/8 in. Single Bore, 2-3/8 in. Backset
Price
$11.84
$12.26
$12.66
$12.76
Ratings (6) (10) (9) (10)
Commercial / Residential Commercial / Residential Commercial / Residential Commercial / Residential
View Product View Product View Product View Product

Specifications

Dimensions

Bore diameter (in.)
2.12
Product Depth (in.)
2.25
Product Height (in.)
10.875
Product Width (in.)
5.5
Required door thickness (in.)
1 3/4

Details

Backset size (in.)
2-3/8
Commercial / Residential
Commercial / Residential
Commercial/Residential
Commercial,Residential
Product Weight (lb.)
0.805lb
Returnable
90-Day
Safety & Security Product Type
Lock & Door Reinforcer

Warranty / Certifications

Manufacturer Warranty
Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Specifications

Dimensions

Bore diameter (in.)
2.12
Product Depth (in.)
2.25
Product Height (in.)
10.875
Product Width (in.)
5.5
Required door thickness (in.)
1 3/4

Details

Backset size (in.)
2-3/8
Commercial / Residential
Commercial / Residential
Commercial/Residential
Commercial,Residential
Product Weight (lb.)
0.805lb
Returnable
90-Day
Safety & Security Product Type
Lock & Door Reinforcer

Warranty / Certifications

Manufacturer Warranty
Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Questions & Answers

What are the measurements for this item?

Asked by: Rowdysrides
The specs say 10.875 but the item we received U-9551 is only 9" tall
Answered by: Rpky
Date published: 2017-07-01

Please tell me the easiest way to obtain your product #2004-SSS. Do I have to order through Home...

Please tell me the easiest way to obtain your product #2004-SSS. Do I have to order through Home Depot? If so, please give me the information (numbers, etc) I need to tell them to get this product.
Asked by: Rick
Thank you for your inquiry regarding this item from Prime-Line Products. The item # 2004-SSS is not a Prime-Line Product. You may wish to reach out to HomeDepot.com Customer Service line at (800) 430-3376.
Answered by: primelineProductExpert
Date published: 2018-05-30

Does this come with hardware to attach to door or does it need to be riveted? I know it can not h...

Does this come with hardware to attach to door or does it need to be riveted? I know it can not have a screw on the outside.
Asked by: Ed
Hello Ed, and thank you for your inquiry regarding this item from Prime-Line Products. Yes; this item includes all installation fasteners necessary for its complete install. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly be connected to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at prodtech@primeline.net
Answered by: primelineProductExpert
Date published: 2017-06-16

will this allow a deadbolt lock or only latch

will this allow a deadbolt lock or only latch
Asked by: chester
Thank you for your inquiry regarding this item from Prime-Line Products. This reinforce is designed for use with one door latch hardware set. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly be connected to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at prodtech@primeline.net
Answered by: primelineProductExpert
Date published: 2017-04-27
  • y_2019, m_6, d_15, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_5
  • loc_, sid_203032991, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 66ms
  • QUESTIONS, PRODUCT

Customer Reviews

1-3/4 in. x 9 in. Thick Solid Brass Lock and Door Reinforcer 2-1/8 in. Single Bore 2-3/8 in. Backset is rated 4.3 out of 5 by 9.
Rated 5 out of 5 by from Fit perfectly. Solved a problem with an old door. Fit perfectly. Solved a problem with an old door.
Date published: 2019-03-19
Rated 5 out of 5 by from Prefect. Used this on a 100 year old door with the old original style mortise door lock handle. W... Prefect. Used this on a 100 year old door with the old original style mortise door lock handle. Would have been impossible to install a regular keyed door knob as there was no wood left to bore into and fasten down the cylinder/striker bolt. The cylinder/striker bolt is threaded so it does not need any wood to screw into. Very study and beefy feeling to it now as well. Just bought a second one for similar job. Rental properties :)
Date published: 2018-12-21
Rated 4 out of 5 by from Good product! Seems like it will last! Product seems like it will last. The screws that came with it were very cheap. I bought a small pack of stainless steel sheet metal screws. I recommend you do the same.
Date published: 2014-05-22
Rated 1 out of 5 by from Bent so it would not fit onto my door. ... Bent so it would not fit onto my door. My wife thinks it's pretty though.
Date published: 2018-10-02
Rated 5 out of 5 by from Quality product. Includes attachment screws. Easily installed, looks... Quality product. Includes attachment screws. Easily installed, looks great, and provides the advertised reinforcement. Shipped quickly and conveniently.
Date published: 2018-06-07
Rated 4 out of 5 by from just make sure your holes line up. Most likely will have to chisel some wood out for the recess... just make sure your holes line up. Most likely will have to chisel some wood out for the recess. Work with it and you can make it a good install.
Date published: 2017-12-28
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2018-01-24
Rated 5 out of 5 by from Does the job. Good price. ... Does the job. Good price.
Date published: 2017-12-26
