28 in. x 9/16 in. Spiral Tilt Balance, Red Tip (Single Pack)

$10.79
  • 28 inch length and 3/8 inch diameter
  • Compatible with most vinyl, single-hung tilt windows
  • Supports window sashes up to 25 pounds in weight
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

This FL series spiral tilt balance is constructed of a mill-finished metal tube measuring 3/8 inch in diameter. The red-colored nylon bushings of these spiral tilt balances indicate their spring weight is for sash of medium weight. These spiral balances are used on vinyl single hung tilt windows.

Highlights

  • Can be used on most vinyl single hung tilt windows
  • Red colored nylon bushing indicates medium spring weight
  • Adjustable weight range
  • 28 inch length and a 3/8 inch diameter
  • Maximum weight rating of 25 lbs.
  • Spiral balance clips are sold separately
  • Prime-Line part H 3787 tilt balance tension tool can be ordered separately

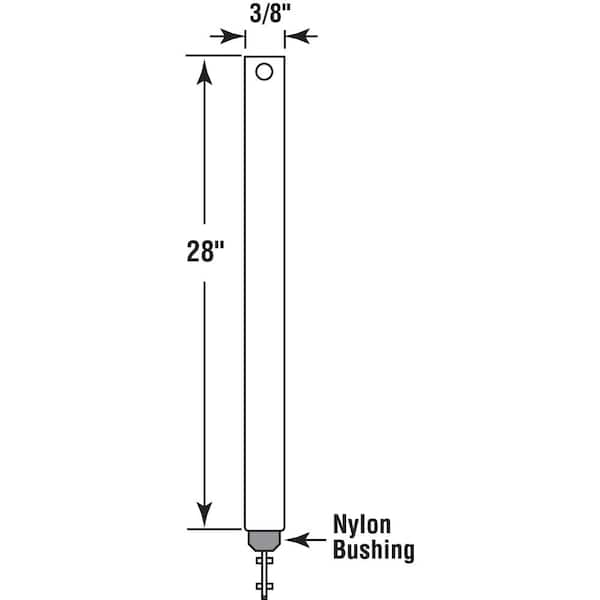

  • Please refer to the line art for dimensions and compare with your needs before ordering
  • Return Policy

Product Information

Internet # 205575343

Model # FL 2820

Store SKU # 1001017018

Additional Resources

Shop All Prime-Line

Specifications

Dimensions: H 0.438 in, W 2 in, D 30.125 in

Dimensions

Product Depth (in.)

30.125 in

Product Height (in.)

0.438 in

Product Width (in.)

2 in

Details

Builders Hardware Product Type

Other Window Repair

Material

Metal

Package Quantity

1

Returnable

90-Day

Window Repair Type

Other

Warranty / Certifications

Manufacturer Warranty

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Questions & Answers

3Questions
caret
Q:I realize this is just the tube component - if I need to replace the spiral piece as well, what part do I need? Thank you!
by|Apr 30, 2018
1 Answer
Answer This Question

A:  Thank you for your inquiry regarding this item from Prime-Line Products. The spiral balance contains the metal spiral arm that comes out of the tube. Depending on which style of spiral balance, you may need a pivot shoe and a tensioning tool. For faster service, be sure to take advantage of the LIVE CHAT option located in the middle right-hand side of your screen, where you can quickly connect to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at info@primeline.net.

by|Aug 27, 2020
    1 found this answer helpful
    caret
    Q:Does this include the tube AND the spiral piece? The description is confusing. Also, is the 3/8 the measurement of the tube or the spiral? And 28" is the length of which part?
    by|Apr 28, 2018
    2 Answers
    Answer This Question

    A:  No, this include the tube only. The tube dimension is 0.375 inches in diameter and 28 inches length.

    by|Mar 7, 2022

      A:  Thank you for your inquiry regarding this item from Prime-Line Products. The spiral is inside the tube and is included. The 3/8" is the diameter of the tube and the measurement of 28" is the length of the tube. For additional questions regarding this item, or any other product manufactured by Prime-Line Products, please call their toll free number at (877) 649-9740, or contact them by email at info@primeline.net.

      by|Aug 25, 2019
        2 found this answer helpful
        caret
        Q:My Spiral Tilt Balance tip is yellow whats the meaning of the color? How do I determine the Spiral Tilt Balance measurement?
        by|Dec 28, 2017
        1 Answer
        Answer This Question

        A:  Thank you for your inquiry regarding this item from Prime-Line Products. Prime-Line Products does not offer a yellow colored bushing. The yellow colored bushing is for super heavy weight sash. You would have to check with the manufacture that has this balance to get a weight range. You could take out the window to weigh it. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly connect to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at info@primeline.net.

        by|May 5, 2023
          Showing 1-3 of 3

          Customer Reviews

          4.5 out of 5

          • 4.5 out of 10 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-10 of 10 reviews
          by
          • Verified Purchase
          by
          • Verified Purchase
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          We were told the windows needed replaced but decided to try repairing with this product. Worked w...
          We were told the windows needed replaced but decided to try repairing with this product. Worked well and much cheaper than replacing!
          by
          • Verified Purchase
          • Recommended
          5 Star Review
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Very easy to install. Window stays open now!! ...
          Very easy to install. Window stays open now!!
          by
          • Verified Purchase
          Great repair was very easy Works like it is new...
          Great repair was very easy Works like it is new
          by
          • Verified Purchase
          5 Star Review
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Worked great
          These were just what I needed. I decided to replace in a pair on a window that I needed to fix before the closing on selling our house because the price was so reasonable. They were delivered very quickly and the window was as good as new after a little tension adjusting.
