Black Plastic Mortise Style Screen Door Latch and Pull

$7.58
  • Designed for either left or right handed mounting
  • Durable long lasting plastic construction
  • Includes mounting hardware for easy and quick installation
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Has your sliding screen door handle broken, is it worn out, cracked, been damaged or just worn out? This sliding screen door handle and latch is non-handed and used by a large majority of manufacturers of roll-formed aluminum or steel sliding screen doors. The mounting holes for the handles are 2-5/8 inch on center. It contains an inside handle, outside handle and sliding steel latch with a projection of 1-1/16 inch. The latch slides up and down to engage a sliding door keeper such as Prime-Line part A 148. Order yours today and make your sliding screen door secure again.

Highlights

  • Used by a large majority of sliding screen door manufacturers as a replacement handle with mounting holes 2-5/8 inch on center
  • Non-handed design so this handle can be used for left or right sliding screen doors
  • Housing and sliding lock tab come in a durable black plastic that is corrosion resistant with a zinc plated steel latch
  • All the necessary mounting hardware is included for a complete installation

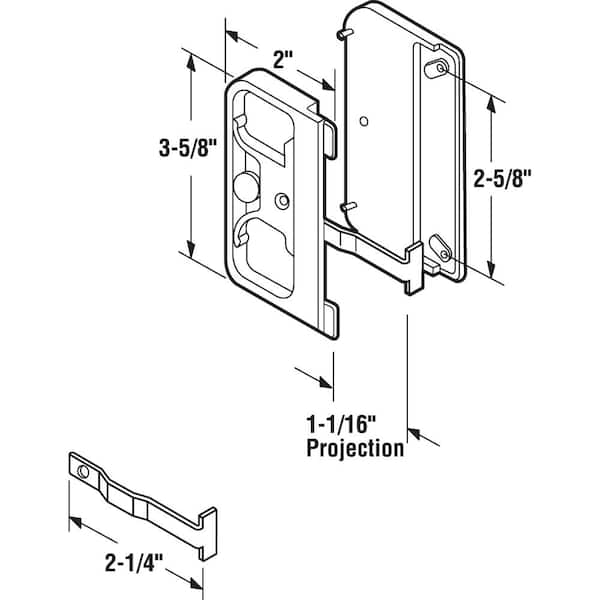

  • Please refer to the line art drawing and compare with your needs item before purchasing (Not Universal)
  • Return Policy

Product Information

Internet # 100132657

Model # A 142

Store SKU # 504009

Store SO SKU #504009

Specifications

Dimensions: H 3.625 in, W 2 in, D 0.5 in

Dimensions

Assembled Depth (in.)

0.5 in

Assembled Height (in.)

3.625 in

Assembled Width (in.)

2 in

Grip Height (in.)

3.5 in

Grip Width (in.)

1.5 in

Required Door Thickness (in.)

1/2 in

Details

Builders Hardware Product Type

Window Handle

Color

Black

Color Family

Blacks

Handle Included

Yes

Handle Material

Plastic

Hardware Color Family

Black

Keyed

No

Package Quantity

1

Required door

Screen

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Questions & Answers

3Questions
caret
Q:Does this come with a strike/keeper or sold separately?
by|Apr 3, 2023
1 Answer
Answer This Question

A:  Thank you for your inquiry regarding this item from Prime-Line Products. The keeper/strike are sold separately.

by|Apr 3, 2023
    caret
    Q:how do you install this product?
    by|Oct 3, 2019
    3 Answers
    Answer This Question

    A:  Thank you for your inquiry regarding this item from Prime-Line Products. Here are the steps. Remove old handle. Slide inside handle that have the tabs into the frame that should have cutout spaces for the tabs. Install outer handle and screw together. Insert latch actuator through the profile frame of door so the tail end engages with the slide button on inside handle. Finally install screws on the outside handle to mount it. You can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at info@primeline.net.

    by|Oct 3, 2019

      A:  There are instructions in with packaging. Make sure this latch will work your screen door first of all. There needs to be 2 small slots in the screen door frame for the latch tongues to slide into, separate the two pieces, slide the side with latch tongues into frame then on the other side of screen, with other half of handle, screw the two pieces together with a Phillips head screw drive. Lock is not necessary, but a good idea.

      by|Oct 5, 2021

        A:  1. remove the previous latch, if present. you may need to cut the silver locking bar to get it out. 2. slide the new silver locking bar through the slot in the frame of the sliding door. 3. align the interior and exterior portions of the latch and 'click' together. the interior half of the latch has tabs that slide into the frame of the sliding door 4. align the plastic locking mechanism with the silver locking bar and press into the interior half of the latch. 5. tighten all screws

        by|Jul 8, 2021
          caret
          Q:can it be opened (unlatched) from the outside? And what striker should be ordered with it?
          by|Sep 11, 2015
          2 Answers
          Answer This Question

          A:  No, it cant't be open from outside.

          by|Jun 21, 2024
            3 found this answer helpful

            A:  Thank you for your inquiry regarding this item from Prime-Line Products. "A 148" is the model number of the strike you need for this latch and pull set, which is also available for purchase from within this same site. This latch and pull CANNOT be unlatched from the outside. For additional questions regarding this item, or any other product manufactured by Prime-Line Products, please call their toll free number at (877) 649-9740, or contact them by email at info@primeline.net

            by|Jun 30, 2019
              1 found this answer helpful
