Diecast Black Flush Sliding Screen Door Latch

$21.27
  • Designed for either left or right handed mounting
  • Durable diecast metal construction
  • Includes mounting hardware for easy and quick installation
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

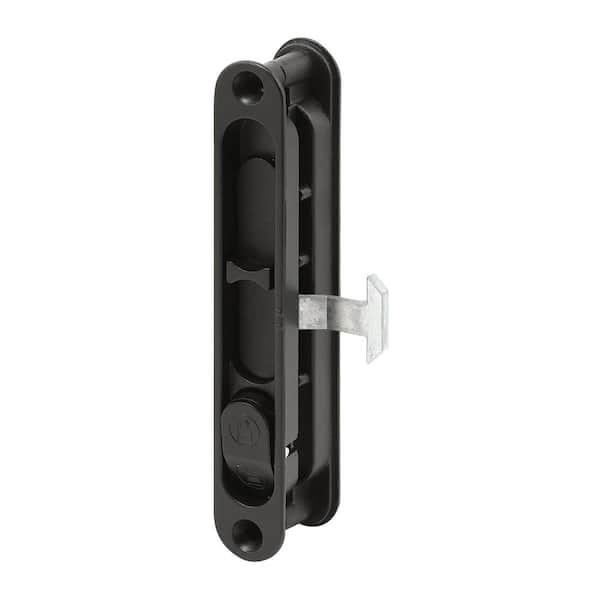

Has your sliding screen door handle broken, is it worn out, cracked, been damaged or just worn out? This is a black flush mounted handle and latch set used by a wide variety of sliding screen door manufacturers. It has a steel hook latch with 1 inch standard spacing. This handle set will fit a minimum door thickness of 15/16 inch and up to a maximum thickness of 1-1/8 inch. It is 5-11/16 inch long and 7/8 inch wide with 5-1/8 inch mounting holes. Made of diecast metal, the handles fit flush into the screen door frame with an inside automatic locking feature. Four latches are provided to fit different manufacturer's designs. Order yours today and make your sliding screen door secure again.

Highlights

  • Typically used to replace broken or damaged handle on a wide variety of sliding screen doors that are mortise mounted and have mounting holes that are 5-1/8 inch on center
  • Non-handed design so this handle can be used for left or right sliding screen doors
  • Housing and sliding lock tab come in a durable diecast metal in a black finish that is corrosion resistant with a zinc plated steel latch
  • Designed to fit sliding screen doors 15/16 to 1-1/8 inch thick and features an automatic locking feature

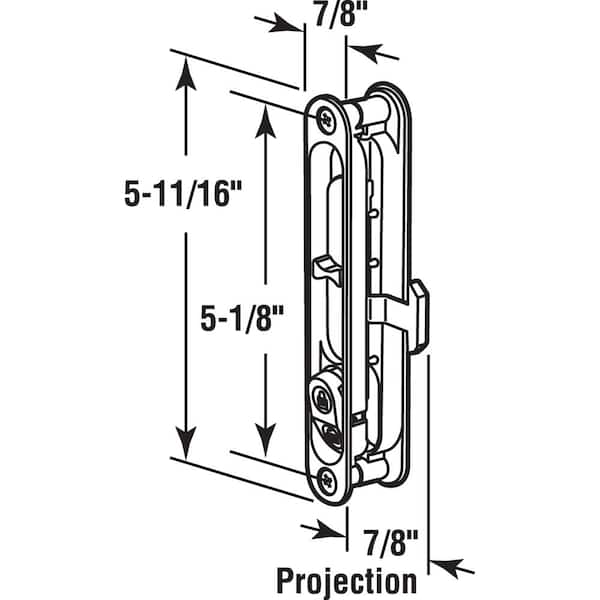

  • Please refer to the line art drawing and compare with your needs item before purchasing (Not Universal)
  • Return Policy

Product Information

Internet # 202887731

Model # A 202

Store SKU # 1000794779

Specifications

Dimensions: H 5-11/16 in, W 7/8 in, D 7/8 in

Dimensions

Assembled Depth (in.)

7/8 in

Assembled Height (in.)

5-11/16 in

Assembled Width (in.)

7/8 in

Grip Height (in.)

3 in

Grip Width (in.)

0.5 in

Required Door Thickness (in.)

7/8 in to 1-3/8 in

Details

Builders Hardware Product Type

Window Handle

Color

Black

Color Family

Blacks

Handle Included

No

Handle Material

Plastic

Hardware Color Family

Black

Keyed

No

Package Quantity

1

Required door

Yes

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Questions & Answers

5Questions
caret
Q:Does this assembly come with the hardware that attaches to the Jamb?
by|Aug 25, 2018
4 Answers
Answer This Question

A:  No just what’s shown.

by|May 6, 2023

    A:  It does not come with the hardware to “lock” the screen

    by|Aug 12, 2023

      A:  Yes I am pretty sure the latch that this holds to was included.

      by|May 6, 2023

        A:  Thank you for your inquiry regarding this item from Prime-Line Products. The item does not come with the strike/keeper. This item part number is A 203 Internet #202887732. You can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at info@primeline.net.

        by|May 6, 2023
          caret
          Q:I need the other side PART to hold & lock the latch. I don't know what is called, maybe latch keeper/latch strike. Does this latch package come with it (keeper/strike...)? If not, any suggestion?
          by|Aug 8, 2017
          2 Answers
          Answer This Question

          A:  no

          by|Jun 17, 2021

            A:  Thank you for your inquiry regarding this item from Prime-Line Products.The part is called a strike or keeper. This handle does not come with the strike. Please review Model # A 203 Internet #202887732. It can be special ordered online and shipped directly to your home or business. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly connect to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at prodtech@primeline.net

            by|Jun 17, 2021
              2 found this answer helpful
              caret
              Q:is this a right side door latch or do you lock it from the outside
              by|Jun 20, 2017
              2 Answers
              Answer This Question

              A:  no

              by|May 5, 2023

                A:  Thank you for your inquiry regarding this item from Prime-Line Products. This is a non-handed door latch that can be used on both left-hand and right-hand closing doors. This door latch, and all Prime-Line door latching hardware locks from the inside. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly be connected to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at prodtech@primeline.net

                by|May 4, 2023
                  caret
                  Q:Is this handle able to latch from both the inside and the out? Need to be able to lock or latch the screen door from the inside or out.
                  by|May 6, 2016
                  5 Answers
                  Answer This Question

                  A:  Yes, locks from inside only

                  by|May 4, 2023

                    A:  yes

                    by|May 4, 2023

                      A:  Yes. i have also answered this question twice.

                      by|May 5, 2023

                        A:  yes

                        by|Jun 19, 2023

                          A:  This model is an automatic latch and can be opened from either the inside or out.

                          by|May 3, 2023
                            1 found this answer helpful
