- Diecast body bolsters strength and resists weather damage
- Designed for left or right handed louver windows
- Includes an adjustable extension arm
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

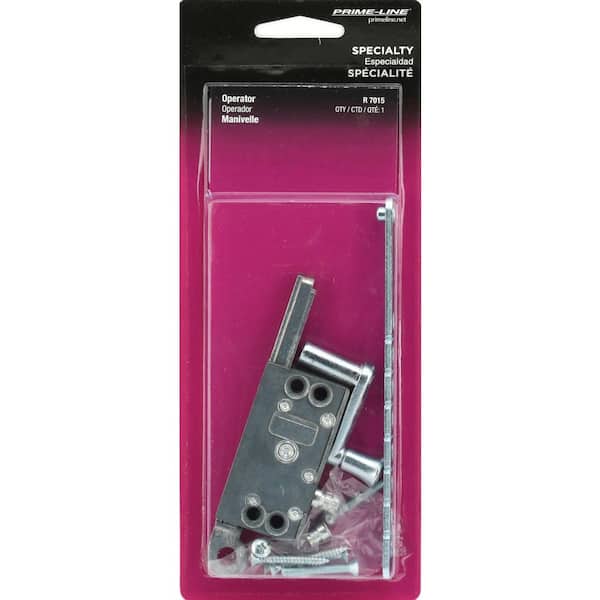

This operator is constructed from diecast zinc. It features a side mounted design with an adjustable extension arm. This operator can be used on either awning or louver windows.
Highlights
- Universal type operator with adjustable extension arm
- 4-1/2 inch moving rack
- Side mounted
- Diecast zinc
- Please refer to the line art for dimensions and compare with your needs before ordering
- Universal type operator
- Return Policy
Product Information
Specifications
Dimensions
Arm length (in.) | 0 |
|---|---|
Product Depth (in.) | 1.375 in |
Product Length (in.) | 9.438 in |
Product Width (in.) | 3.813 in |
Details
Builders Hardware Product Type | Window Operator |
|---|---|
Finish | Zinc |
Handing | Universal |
Hardware Color Family | Silver |
Material | Metal |
Operator Type | Single-arm casement |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
|---|
Questions & Answers
Can this be used for left and right side applications
Thank you for your inquiry regarding this item from Prime-Line Products. This item is designed for left or right handed louver windows.
Viewing 1-1 of 1
Customer Reviews
4 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for awning or louver window repair, this diecast zinc operator offers side-mounted convenience and an adjustable arm. | Ideal for upgrading steel casement windows with smooth, reliable operation and a sleek aluminum finish. | Ideal for upgrading old steel casement windows with smooth, durable operation and a sleek aluminum finish. | Ideal for upgrading steel casement windows with smooth, right-hand operation and durable cast metal construction. |
Arm Length | |||
Adjustable | 8 in. | 9 in. | 8 in. |
Material | |||
Diecast zinc | Cast Metal | Cast Metal | Cast Metal |
Finish | |||
Zinc | Aluminum | Aluminum | Aluminum |
Locking Mechanism | |||
Dual Arm | |||
