Product Images
- Features alarm and LED to point leaks
- Includes earphone jacks for loud surroundings
- Features transmitter generating 40 kHz signal
- View More Details
Free & Easy Returns In Store
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Identifies and pinpoints leaks generated by pressure, vacuum, water, gas or air. This ultra-sonic leak detector converts ultra-sound signals produced by industrial machinery into easily recognizable audible sounds for a user to evaluate the condition of individual components. The R9100 includes a transmitter that generates a 40 kHz signal to help pinpoint leaks and headphones for use in loud environments.
Highlights
- Locates leaks generated by pressure, vacuum, water, gas or air
- Visible (LED) and audible (ticking) alarms assist in pinpointing leaks
- Earphone jack for loud environments (earphones included)
- User adjustable sensitivity wheel
- Ultra-sonic transmitter generates a 40 kHz signal

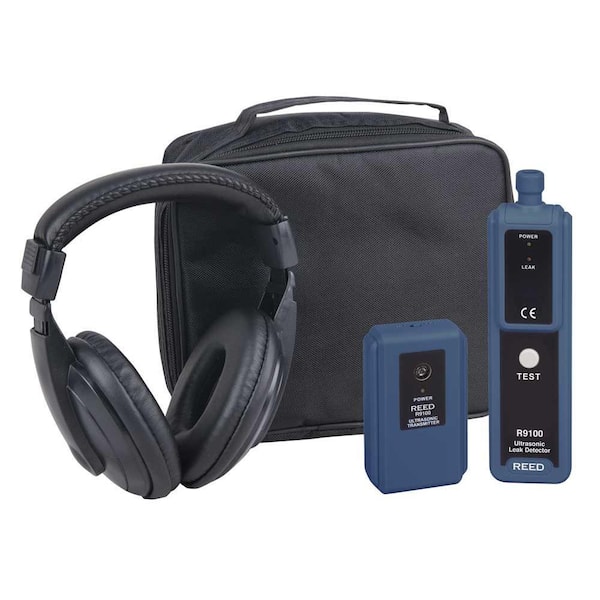

- Includes: ultra-sonic leak detector, transmitter, headphones, carrying case, and batteries
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions
Product Depth (in.) | 2 in |
|---|---|
Product Width (in.) | 6 in |
Details
Features | No Additional Features |
|---|---|
Included | Case |
Power Source | Battery Operated |
Returnable | 90-Day |
Test Meter Type | Specialty Meter/Tester |
Warranty / Certifications
Certifications and Listings | CE Certified, ROHS |
|---|---|
Manufacturer Warranty | 1 Year |
Questions & Answers
Will it detect where the water pipe is leaking under 31/2 inches of concrete?
Hello James, the REED R9100 is not designed to detect leaks that are buried under concrete.
Will it detect radio signals/jamming
Hello, the R9100 does not detect radio signals or jamming signals.
Will this tool help me find an air leak on a semi truck
This device can identify and pinpoint air leaks. However, this device requires the leak to be directly exposed (on the surface). If the leak is internal and hiding beneath an outer layer of material, it will not be detected with this device.
Will it find a air leak underground
Hello Stanley, the R9100 will not detect leaks from underground.
How do I use it to locate underground water leak
Hello Jona, the R9100 Ultra-Sonic Leak Detector is not suitable for detecting leaks buried underground and will not be adequate for your application.
If I either pull a vacuum or put air pressure into the copper refrigerant lines for an HVAC system, would this device be capable of detecting very small/pinhole leaks that may be in the brazed joints of the tubing?
Hello Daniel, the R9100 should be able to detect the leak by pressuring the pipes with O2 (Air). It's important to start by setting the detector’s sensitivity to the highest level at the beginning of the test. If the ultrasonic sound detected is too intense, it may be impossible to pinpoint the leak due to a high "ticking tone". In such cases, decrease the sensitivity. Ultrasonic sound attenuates quickly over distance, so move the detector as close as possible to the suspected leak. Remember to lower the sensitivity if needed. Best regards.
Can I use this to find air leaks around windows by placing the transmitter indoors and using the detector outside?
Hello Gjude, Yes, you can use the REED R9100 Ultrasonic Leak Detector to locate air leaks around windows, but its effectiveness will depend on how the sound waves behave in your environment. Typically, this device works by converting ultrasonic sounds—such as those created by air escaping through small cracks—into audible sounds, helping you pinpoint the leak. The transmitter generates a 40 kHz ultrasonic signal, and the detector can pick it up to help you find leaks indoors or outdoors. In your case, placing the transmitter indoors and using the detector outside might work, but be aware that the signal might not travel well through thick walls or materials. For best results, testing it directly around the edges of windows where air might escape could give you a more accurate detection
Will this tool detect a leak in a underground pvc main water line from the meter to the house?
Hello Tommy, please note that this detector will not be able to detect leaks underground.
Viewing 1-8 of 14
Customer Reviews
5 out of 5
