Model # 003120

Internet #308268495

0880674031209

RELN

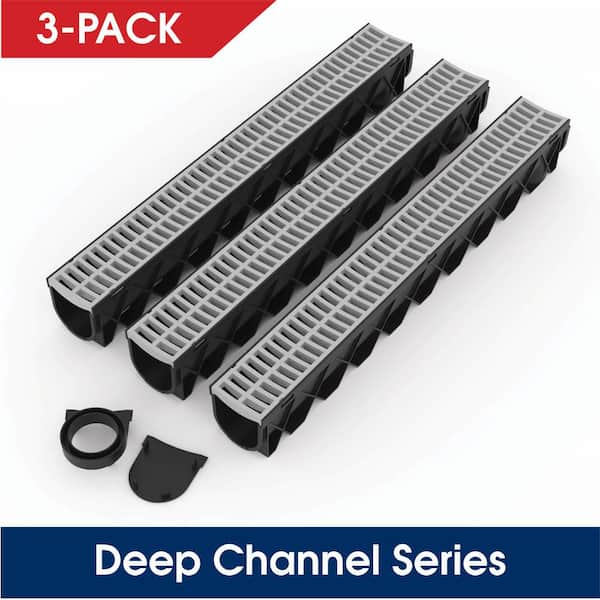

Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Portland Grey Grate (3-Pack)

  • Interlocking channel system - no need for couplings
  • Clip in and out grate design - no screws required
  • Deep "U" shaped channel profile, aids in self cleaning
$ 89 99 /package
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Interlocking channel system - no need for couplings
  • Clip in and out grate design - no screws required
  • Deep "U" shaped channel profile, aids in self cleaning
Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system. It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. The tough durable and lightweight UV stabilized plastic channel includes concave Portland Grey grate to suit domestic pedestrian and vehicle traffic.
  • Channel lengths are interlocking, no clips required
  • Recommended for medium duty pneumatic tire traffic, autos and light trucks at speeds less than 20-mph
  • Manufactured from 100% recycled plastic (polypropylene)

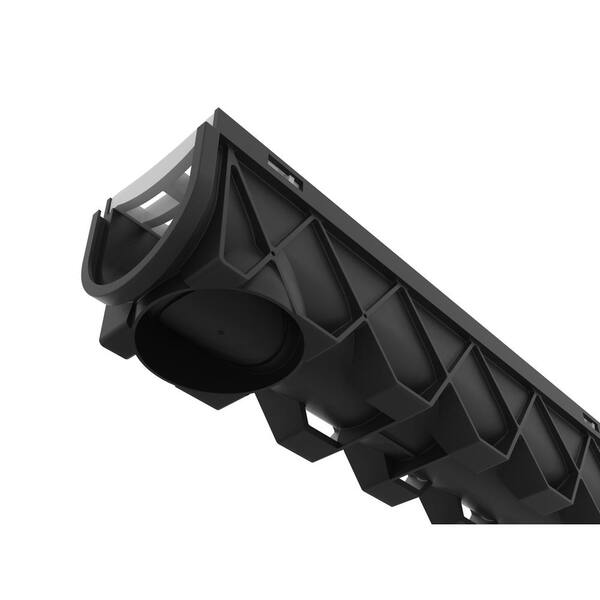

  • Anti-floatation channel feet prevent floating when encased in fill material
  • U shaped channel, corners and tees are designed to prevent water pooling
  • Cross braced ribs are designed into the body for strength and rigidity
  • End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or Sch. 40 pipe with adaptor
  • Grates clip in and out, no screws required
  • Kit includes 3 in. x 40 in. channels, 1 x end cap and 1 x end outlet

Product Overview

  • Interlocking channel system - no need for couplings
  • Clip in and out grate design - no screws required
  • Deep "U" shaped channel profile, aids in self cleaning
Model #: 003120
Internet #: 308268495

Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system. It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. The tough durable and lightweight UV stabilized plastic channel includes concave Portland Grey grate to suit domestic pedestrian and vehicle traffic.

  • Channel lengths are interlocking, no clips required
  • Recommended for medium duty pneumatic tire traffic, autos and light trucks at speeds less than 20-mph
  • Manufactured from 100% recycled plastic (polypropylene)
  • Anti-floatation channel feet prevent floating when encased in fill material
  • U shaped channel, corners and tees are designed to prevent water pooling
  • Cross braced ribs are designed into the body for strength and rigidity
  • End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or Sch. 40 pipe with adaptor
  • Grates clip in and out, no screws required
  • Kit includes 3 in. x 40 in. channels, 1 x end cap and 1 x end outlet

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand NDS NDS RELN RELN
Name 3 in. Plastic Channel Drain Kit Pro Series 5 in. x 40 in. Channel and Grate Kit with End Outlet Storm Drain 40 in. Channel Complete with Galvanized Grate Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Portland Grey Grate (3-Pack)
Price
$40.81
$52.43
$53.99
$89.99 /package
Ratings (34) (74) (12) (8)
View Product View Product View Product View Product

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
4"
Product Depth (in.)
5.4 in
Product Length (in.)
10 ft
Product Width (in.)
5 in

Details

Color Family
Gray
Color/Finish
Portland Grey
Material
Polypropylene
Maximum Working Temperature (F)
130
Minimum working temperature (F)
5
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
17 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 year

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
4"
Product Depth (in.)
5.4 in
Product Length (in.)
10 ft
Product Width (in.)
5 in

Details

Color Family
Gray
Color/Finish
Portland Grey
Material
Polypropylene
Maximum Working Temperature (F)
130
Minimum working temperature (F)
5
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
17 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 year

Questions & Answers

Can this be cut to fit odd lenght? Thanks

Can this be cut to fit odd length? Thanks
Asked by: Bah
Yes, the RELN Storm Drain channel drains are designed so that they can be cut at any desired length.
Answered by: Gennaro
Date published: 2019-04-21

What is the channel drain made from and what material is the grate made from?

Asked by: FIS
Hello, Our Storm Drain Channel is made of PP, known as Polypropylene. The Portland grey grates are made of Structural Foam which is an injection moulding process which has a cellular core. Kind Regards
Answered by: Gennaro
Date published: 2019-03-28
  • y_2019, m_5, d_24, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_, sid_308268495, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 78ms
  • QUESTIONS, PRODUCT

Customer Reviews

Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Portland Grey Grate (3-Pack) is rated 4.8 out of 5 by 8.
Rated 4 out of 5 by from Poor gutter placement on the roof of our split level home leaves us with a large puddle after a b... Poor gutter placement on the roof of our split level home leaves us with a large puddle after a big rain. The storm drain channel kits are the perfect solution for us. Digging out a channel and installing the drains took about 1-2 hours. The product is high quality and seems like it will last over time. The channels are tension fit, so I worry that with settling and time, they may become disconnected. The channels also seem deeper than necessary for a residential application. It required more digging than I expected, but I know it will be able to handle a large volume of water. The grates are the entire top of the product (I thought they would only be a portion of the top). With so much exposed area, I worry that the grates will clog easily with soil, leaves, and storm debris. The easy clip on grates should make cleaning a breeze without having to deal with screws. I am excited that the U shaped channel prevents water pooling. Mosquitoes are a huge problem in our area, so we definitely don't want standing water. The drains connect easily to a 4 inch pipe. The channels accommodate a pipe coming from below the channels or from the side--perfect for whatever your configuration. This set of 3 channels was able to run along our entire bay window and family room addition. With a pipe added, I know it will solve our muddy puddle problem! Simple, easy to install, and high quality. Definitely recommend!
Date published: 2019-03-16
Rated 5 out of 5 by from As soon as the weather breaks, I’ll be starting a new 3 car garage. I need a way to channel the water from under the cars, especially in the winter as the ice melts off. I also like to wash my cars year-round so this will make it nice. I’ll be running 1 each length wish under the cars. Installation looks simple enough. These have cross braced ribs to give it strength and rigidity and anti-floating feet to prevent it from floating once concrete is poured around it. You only get one each end cap and an end outlet. It also has a bottom outlet, which is what I plan on using. So I needed to purchase several 1003050361 end caps. I think it’s a very good price for 3 of them. I would recommend.
Date published: 2019-03-16
Rated 5 out of 5 by from The Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Portland Grey Gra... The Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Portland Grey Grate (3-Pack) is made with recycled plastic. We used ours in a drive over area and it works well. It is easy to put together it comes with clips to connect the three sections. It has anti-flotation legs that keep the channel drain in place. The channel drain is manufactured very well with quality material.
Date published: 2019-03-14
Rated 5 out of 5 by from This kit is a three pack of 5 in. wide x 5.25 in. deep x 39.4 in. long Channel Drains in black wi... This kit is a three pack of 5 in. wide x 5.25 in. deep x 39.4 in. long Channel Drains in black with Portland Grey top grates. You can use these drains separately or linked together to eliminate pooling in low spots in landscape beds, patios, pool areas, or anywhere you need to channel water away. The three can be linked together to span a 10-foot-wide driveway. Connect to four-inch drain pipe either on the bottom or ends of the units. The kit come with one end plate and one end pipe connector, additional connectors are available to purchase. These are heavy duty units, with the grate designed to support both people and vehicle loads. I installed one to drain a low spot in a landscape bed inside a pool area, and one to channel water away from a basement wall, where there was a low spot in the landscape bed. Easy to install, just dig in and install and connect outlet pipe. Low profile of the units allows for installation without excessive digging. I covered the grate area with river rock to hide the top unit and to help filter dirt/mulch from the system. These units do a great job of keeping water from areas where you dont want it collecting, and help keep surrounding areas dry.
Date published: 2019-04-09
Rated 5 out of 5 by from Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Portland Grey Grate (3-Pack) By RELN DRAINAGE SYSTEMS. I was pleasantly surprised when I opened and handled these drains. The are made of heavy duty plastic reinforced with honey combed design to allow these drains to be set in concrete with out worrying about collapsing. The removable top grates will hold up to cars traveling over them. Each section slips into a grove to provide water tight flow the whole length of the run. It comes complete with a end stop and a preformed pvc connector piece which finishes out the run.
Date published: 2019-03-20
Rated 5 out of 5 by from Yes I was able to install it with help from... Yes I was able to install it with help from father in law. I just was I followed instructions and didn’t pour concrete all the way to the tip, should of used the black stuff recommended. The concrete got hard and now it’s almost impossible to remove the covers to clean inside
Date published: 2019-04-09
Rated 4 out of 5 by from 4 Star Review Rating provided by a verified purchaser
Date published: 2019-05-22
Rated 5 out of 5 by from It was the perfect purchase just what I was looking... It was the perfect purchase just what I was looking for good quality and fitment will purchase again or recommend
Date published: 2019-02-18
