Model # PCL540K1

ONE+ 18V Cut-Out Tool Kit with 1.5 Ah Battery and Charger

$91.22
Limit 5 per order
Apply Now
Pay $66.22 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Fast Cutting Up To 28,000 RPM & Enhanced Visibility w/ LED Light
  • Includes: Cut-Out Tool, 1.5 Ah Battery, and Charger
  • Over 300 ONE+ Products – All Work With Any RYOBI 18V ONE+ Battery
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Expand your RYOBI 18V ONE+ System with the RYOBI 18V Cut-Out Tool Kit with 1.5 Ah Battery and Charger. The powerful motor provides up to 28,000 RPM while also delivering over 190 cuts per charge. Equipped with an on-board LED worklight you will experience enhanced cut visibility. The 18V Cut-Out tool accepts 1/8 in. and 1/4 in. bits while also incorporating quick and easy bit changes with built-in wrench storage. This tool also comes with a lock-on switch for continuous cutting. Best of all, it is part of the RYOBI ONE+ System of over 300 Cordless Products that all work on the same battery platform. This 18V Cut-Out Tool is backed by the RYOBI 3-Year Manufacturer’s Warranty and includes a 1.5 Ah Battery and Charger.

Highlights

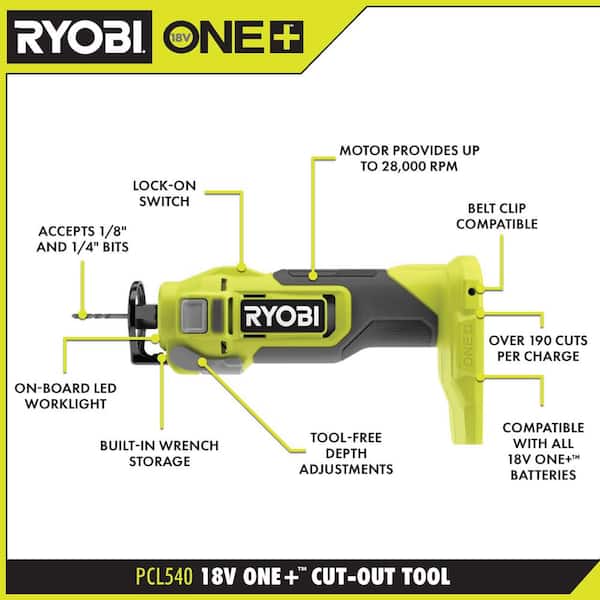

  • Motor provides up to 28,000 RPM for fast cutting
  • Over 190 cuts per charge

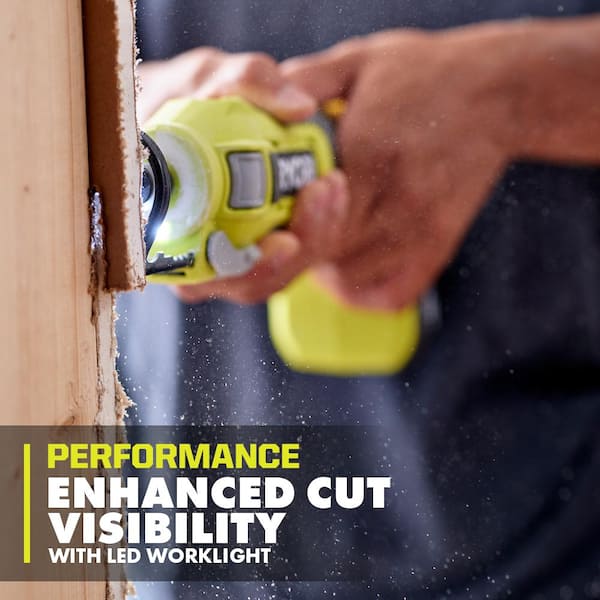

  • Enhanced cut visibility with LED worklight
  • Quick and easy bit changes with on-board wrench storage
  • Tool-free depth adjustments for greater cutting control
  • Accepts 1/8 in. and 1/4 in. bits for maximum versatility
  • Lock-on switch for continuous cutting
  • Part of the RYOBI 18V ONE+ System of Over 300 Cordless Products
  • 3-Year Manufacturer's Warranty
  • Includes: PCL540B 18V Cut-Out Tool, 1/8 in. Drywall Bit, 1/8 in. Collet, 1/4 in. Collet, 1.5 Ah Battery, Charger, and Operator's Manual
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 320639506

Model # PCL540K1

Additional Resources

Shop All RYOBI

Specifications

Dimensions: H 8.375 in, W 2.625 in, D 5.188 in

Dimensions

Product Depth (in.)

5.188 in

Product Height (in.)

8.375 in

Product Width (in.)

2.625 in

Details

Amperage (A)

0.0 A

Batteries Included

Yes

Battery Amp Hours

2 Ah

Battery Power Type

Lithium Ion

Battery Size

18-volt

Battery Voltage (V)

18V

Charger Included

Charger Included

Chuck Capacity (in.)

1/4 in

Chuck Type

Keyless

Color Family

Green

Condition

New

Cordless Tool Type

Rotary Saw

Cordless/Corded

Cordless

Included

Bits

Kit

Yes

Maximum Speed (RPM)

27000 RPM

Motor Type

Brushed

Number of Total Batteries Included

1

Power Tool Features

Keyless Chuck, Variable Speed

Product Weight (lb.)

1.6 lb

Returnable

90-Day

Tool Only| Kit

Kit

Tools Product Type

Power Tool

Variable Speed

No

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

3-Year Manufacturer's Warranty

Questions & Answers

9Questions
caret
Q:I need to cut notches in composite decking that is less than an inch thick. Unsure if I should get this tool or a jigsaw. I did read that this is just for drywall. Is there a bit that would allow for cutting composite products like Decking and LVP?
by|May 21, 2024
1 Answer
Answer This Question

A:  Hello, Steve - We would recommend using a jig saw for this application. If you need further support, then feel free to ask another question. You can also contact us by phone or text at 1.800.525.2579, Monday - Friday from 9 am to 5 pm (EST), or via email when you visit us at https://www.ryobitools.com/support/contact. This question is from RYOBI ONE+ 18V Cordless Cut-Out Tool (Tool Only) (PCL540B).

by|May 22, 2024
    caret
    Q:Can this cut through plaster?
    by|Feb 28, 2024
    1 Answer
    Answer This Question

    A:  Hello, Kevin - No, this cut-out tool is not recommended for use with plaster. We hope this helps! If you need further support, then call or text us at 1.800.525.2579, Monday - Friday from 9 am to 5 pm (EST), or through email when you visit us at https://www.ryobitools.com/support/contact.

    by|Feb 29, 2024
      caret
      Q:Brushed or brushless motor?
      by|Feb 27, 2024
      1 Answer
      Answer This Question

      A:  Hello, Shune - This cut-out tool has a brushed motor. We hope this helps! If you need further support, then call or text us at 1.800.525.2579, Monday - Friday from 9 am to 5 pm (EST), or through email when you visit us at https://www.ryobitools.com/support/contact.

      by|Mar 16, 2024
        caret
        Q:What collets fit this? The two it comes with are just 1/4" and 1/8".
        by|Dec 26, 2023
        1 Answer
        Answer This Question

        A:  Hello, Eeprof - Thank you for your question. Yes. These are the only ones recommended to use with the tool (1/4" and 1/8"). I hope this helps! Additionally, if you need further support, then a RYOBI Customer Experience Professional is here for you, Monday - Friday from 9 am to 6 pm (EST) when you call or text us at 1.800.525.2579 or through email when you visit us at https://www.ryobitools.com/support/contact. And thank you again for your interest in the ONE+ 18V Cordless Cut-Out Tool (Tool Only). - Joyce

        by|Dec 28, 2023
          Showing 1-4 of 9

          Customer Reviews

          4.3 out of 5

          • 4.3 out of 68 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-10 of 68 reviews
          An excellent tool for it's specific job!
          Before you even open the box, you need to know that this tool is for one job and one job alone: Opening PRECISE holes in Sheetrock (Drywall) ONLY! You are not going to use this tool on wood, particleboard or any other material. For that job, it will do a superb job. I wish I had it when we were recessing security system devices, so it's not just limited to electric boxes. When using, be sure to use both hands to maintain control, as the motor is quite powerful. One undocumented feature is a shut off that will turn the switch to "off" when the battery is removed, preventing an accidental start when putting in a fresh battery. Wear safety glasses when using this tool.
          by
          • Recommended
          1 found this review helpful
          Works much better on Drywall
          I had no issues cutting half inch drywall. The cut-out tool was able to make quick work of the drywall using a 2Ah battery. The tool has a large grip area that makes controlling your cuts in drywall easy. Using a 2ah battery helps with the balance and control of the tool as you push or pull it through the drywall material. There isn’t a separate Collet Nut Wrench to keep track of, it is built into the adjustable depth guide. Adjusting the depth guide is very easy using the depth lock lever. The tool comes with 2 cutting bits. One bit is used for cutting through drywall. You can identify the drywall bit by the smooth rounded end that is used like a guide bearing on a router bit. The multi-material cutting bit has sharp point. I did some research online and found the majority of cut out tool users recommend going counterclockwise when cutting around the outside of an electrical box, vent openings or other protruding object. If you’re cutting around the inside of an opening such as an opening for a window or door cut in a clockwise direction. When working with a wood or tile bit, I’m not sure there is a recommended direction. I had issues trying to cut wood using the RYOBI multi-material bit supplied with the cut-out tool. I couldn’t get the bit to bite into the dimensional lumber and when cutting plywood, I was only able to cut ¼ inch plywood and that was very difficult. You can see in the image below how the plywood started to burn. I had a hard time trying to control my cutting direction. I did switch over to a 4Ah battery and the tool worked better but a 4Ah battery is heavy and made controlling the tool awkward. In the Operator’s Manual, RYOBI list the only application for this tool is cutting drywall. I don’t know if a Brushless motor in the tool would work better or switching to Rotozip multi-material cutting bits would help. If you intend to use this tool primarily for word working, a corded cut-out tool would be a better choice. I am going to pick up some of the Rotozip multi-material and tile cutting bits and see if I have better experience. As a drywall cut-out tool, this is a 5-star tool. But I was hoping this tool would also work easily in ½ thick dimensional lumber and plywood. I have not tried cutting tile yet. I am going to rate this tool a 4-star tool because the tool is a quality tool and easy to use in drywall.
          by
          • Recommended
          Powerful little tool
          We have several home renovation products on our list to do so we are frequently in need of additional tools which can sometimes be a hassle. We needed a cut out tool and were happy to see this cordless one made by Ryobi. It is part of their 18 volt one + line of products. Considering we already have several tools from this line it made sense to by the tool only from them as we could use the batteries we already have to power it. This eliminates either being limited by a cord or having to buy a battery that may not work with anything else we have. So in some aspects this is also a space saver. It includes two different bits as well as the collet adapter to switch sizes of bits. It does accept 1/8 inch bits as well as 1/4 inch bits so it gives you a bit of flexibility. There is a on board light to help with visibility just like most tools in this line. The wrench being built in to the guide is nice as you never have to worry about being with out it. The fact that they put a lock on switch for continuous cutting is a very appreciated feature. The weight of the units itself seems heavy enough to be well built but not so heavy that it can not be used for long amounts of time. With where the weight is located once a battery is attached it seems well weighted. This make it nice for doing things such as cutting out around outlets power boxes etc. You can keep you cuts nice and tight so you do not get oversize sloppy cuts. The boast that is operates at 28,000 RPM which I can not really speak too but it seemed to have plenty of power and did not drain my battery. Just like with all Ryobi products this comes with the three year manufactures warranty. While this is not a tool we need to use on a daily basis we are very pleased with it and how it operates. It is a welcome addition to our ever growing Ryobi collection!
          by
          • Recommended
          The tool every drywaller needs
          The RYOBI ONE+ 18 Volt Cordless Cut-Out Tool can certainly save you a lot of time and make the most amateur of drywallers seem very competent. I bought this tool at the recommendation of a friend who hangs drywall for a living, and I’m glad I did. I practiced on a piece of drywall first to get the hang of making cuts, and I soon discovered this tool works best when making cuts in a left to right direction. Cutouts for electrical boxes are a breeze now. And oh, like with all RYOBI tools, the quality is outstanding.
          by
          • Recommended
          Convenient, handy cut out Tool.
          Ryobi has done it again. This is a super nice cut out tool that is easy to use and is so handy. This Tool is a 18volt tool that belongs to Ryobi One + system of tools so the Batteries from your other tools will fit this as well. What’s super nice is that being Battery operates and not a plug in is that you can use it anywhere, this is super convenient when doing remodeling or adding a room where Electricity is not available. This is a well balanced tool with the Battery installed and is not awkward to use.This Tool will accept 1/8 and 1/4 inch bits as it comes with Two interchangeable collets. One of the great things about this tool is that the Collet Tool is built into the depth Gauge, ingenious! How many times have you changed a bit, laid down the Tool and then forgot where you laid it? I have, and this way the tool is always onboard. Another nice feature is that the activation switch cannot be turned on until a Battery is installed in the tool. This will prevent accidental start ups or if the Battery dies during usage and it won’t turn on when new Battery is installed and you forgot to turn it off. Nice! This Tool has a operating speed of 28K RPM which is powerful enough to tackle any job. The Tool also has a LED light to aid in seeing your work. This Tool would be perfect for Home, Professional, or industrial settings and is great when there isn’t electricity available or if you don’t want to run a 100 ft Extension Cord to do everything. This Tool also comes with a 3 Year Warranty to give you piece of mind when purchasing. This is a great tool and you will be happy with ditching the “Cord”.
          by
          • Recommended
          Versatile and lightweight.
          The ONE+ 18V Cordless Cut-Out Tool is a great hand held tool that has multiple applications at your fingertips. It comes with your basic bits to start with and an on handy board tool for interchanging bits. You can use other Ryobi bits for selected work. The wrench/depth guide is very useful and adjusting to your work depth and having the bright LED.light adds precision and safety while cutting. A great multi-task tool.
          by
          • Recommended
          A great little machine
          This RYOBI 18 volt ONE+ battery-powered side-cutting Cut-Out Drill is ideal for cutting openings in sheetrock to accommodate an electric box, for example – or to make a nice round hole in the ceiling for a light. The drill bits are designed to cut on the long edge rather than the tip. With a battery attached it is about the same weight as a contractor’s drill and well-balanced. The best design is the built-in wrench (nothing to lose) for the chuck. It is also the depth gauge. A swivel tab locks it in place.
          by
          • Recommended
          Full of great design features.
          The Ryobi ONE+ 18V Cordless Cut-Out Tool is a very slick tool. A lot of thought went into the design of this tool. First of all, it utilizes any of the 18V Lithium ONE+ batteries. It comes with 2 sized Collets: 1/8” and 1/4". The 1/8” uses the standard cut-out bits for this type of tool and the 1/4" could utilize any 1/4" router bit. The Depth-Guide is adjustable for different depths and also doubles as the Collet Nut wrench, so it’s always readily available. The motor is single speed, which is the same as other standard cut-out tools, whether they are corded or cordless. The gray snap-lever under the collet nut allows you to adjust the depth guide or remove it to use the built-in wrench to loosen/tighten the collet nut. A gray button on the side, when pushed in, locks the spindle when changing the bit. A bright LED light also shines, when turned on, to provide lots of light on your work area. Safety was thought of when designing the on/off switch so that it won’t stay locked “on” when the battery is removed. Therefore, it can’t turn on unexpectedly when inserting a fresh battery, thus preventing possible injury. Using a cordless cut-out tool vs a corded tool is highly desirable. This tool has all the features of a corded tool without the hassle of dragging a long extension cord around. I strongly recommend this Ryobi ONE+ tool. I own many Ryobi ONE+ tools, even the older BLUE models, and all have been very good tools and all work off the 18v ONE+ Lithium batteries. Made in China.
          by
          • Recommended
          Big upgrade over a saw
          I don’t make a lot of cuts in drywall and historically I have always used a drywall saw. I finally broke down and got this tool and as usual, kicking myself for taking so long. The depth stop is super easy to set and the ring provides a stable base to keep the tool steady against the drywall. It’s quite clever how the depth stop doubles as a the wrench to loosen the bit. I found the tool easy to use and could quickly and accurately stay to my lines.
          by
          • Recommended
          A powerful tool
          I have never used a cut out tool before but I have some projects that could use the tool. As you can see from my photos I need a lot more practice before I take on some fine work. My testing was done on foam insulation and panel material. I will be using the tool for cutting out outlets and light fixtures in some rooms I am working on. I am impressed by the tool.
          by
          • Recommended
          Showing 1-10 of 68 reviews
