Rain Bird

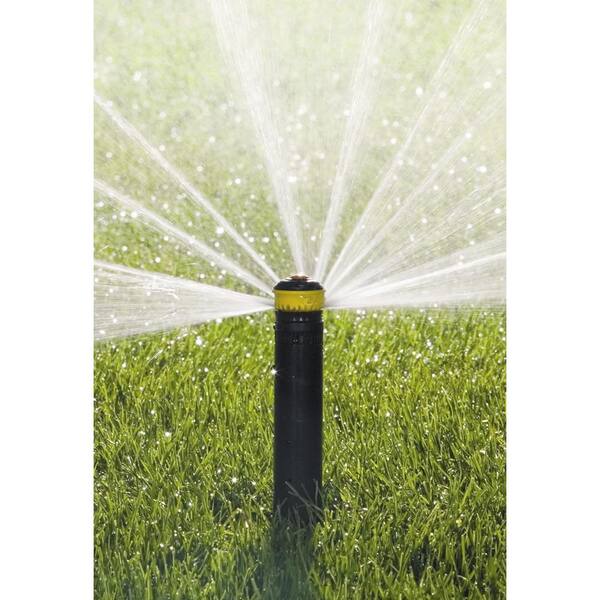

13 ft. - 18 ft. Quarter Circle Simple-Adjust Mini Rotor

  • Quarter pattern sprinkler head with 4 in. pop-up height
  • Multiple rotating streams distribute water uniformly
  • Extended throw up to 18ft covers more area with fewer sprinklers
$ 8 99
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Quarter pattern sprinkler head with 4 in. pop-up height
  • Multiple rotating streams distribute water uniformly
  • Extended throw up to 18ft covers more area with fewer sprinklers
Rain Bird's 12SA rotary sprinklers provide highly uniform water distribution and an increased radius range of up to 18 ft., covering more area with fewer heads. At the same time, the sprinkler produces remarkably low precipitation rates of 0.6 in. per hour, reducing water use up to 30 percent. The secret is in the nozzle's rotary multi-stream action. The water delivery is gentle enough for newly seeded areas and hillsides, yet covers more area than standard pop-up sprays. The extended throw also allows you to use fewer heads per zone to reduce system complexity. And the 12SA nozzle's water droplets are larger than traditional sprinkler droplets, resisting windblown overspray. The 12SA is easy to adjust: simply use a standard slotted screwdriver to adjust the throw distance from 13 to 18 ft. Other features include a 4-in. pop-up height; a protected closed-case design that makes these sprinklers ideal for "creeping" grasses, sandy soil, and other harsh surroundings; and a water-lubricated rotating stream operation that's quiet and maintenance-free. This version of the 12SA produces a full-coverage pattern; the 12SA is also available in full and half patterns.
  • 4 in. pop up height
  • Multiple rotating streams distribute water uniformly
  • Slow distribution rate is ideal for newly seeded areas and hillsides
  • Extended throw up to 18 ft. covers more area with fewer sprinkler heads
  • Pressure-activated wiper seal protects mechanism from creeping grasses and sandy soil
  • Quarter pattern
  • Protected close-case design makes sprinklers ideal for "creeping grasses", sandy soil, and other harsh surroundings
  • Later water droplets resist windblown overspray
  • Precipitation rate of 0.6 in. per hour
  • Total Satisfaction Policy

Product Overview

  • Quarter pattern sprinkler head with 4 in. pop-up height
  • Multiple rotating streams distribute water uniformly
  • Extended throw up to 18ft covers more area with fewer sprinklers
Model #: 12SAQ
Sku #: 1000029531
Internet #: 203781676

Rain Bird's 12SA rotary sprinklers provide highly uniform water distribution and an increased radius range of up to 18 ft., covering more area with fewer heads. At the same time, the sprinkler produces remarkably low precipitation rates of 0.6 in. per hour, reducing water use up to 30 percent. The secret is in the nozzle's rotary multi-stream action. The water delivery is gentle enough for newly seeded areas and hillsides, yet covers more area than standard pop-up sprays. The extended throw also allows you to use fewer heads per zone to reduce system complexity. And the 12SA nozzle's water droplets are larger than traditional sprinkler droplets, resisting windblown overspray. The 12SA is easy to adjust: simply use a standard slotted screwdriver to adjust the throw distance from 13 to 18 ft. Other features include a 4-in. pop-up height; a protected closed-case design that makes these sprinklers ideal for "creeping" grasses, sandy soil, and other harsh surroundings; and a water-lubricated rotating stream operation that's quiet and maintenance-free. This version of the 12SA produces a full-coverage pattern; the 12SA is also available in full and half patterns.

  • 4 in. pop up height
  • Multiple rotating streams distribute water uniformly
  • Slow distribution rate is ideal for newly seeded areas and hillsides
  • Extended throw up to 18 ft. covers more area with fewer sprinkler heads
  • Pressure-activated wiper seal protects mechanism from creeping grasses and sandy soil
  • Quarter pattern
  • Protected close-case design makes sprinklers ideal for "creeping grasses", sandy soil, and other harsh surroundings
  • Later water droplets resist windblown overspray
  • Precipitation rate of 0.6 in. per hour
  • Total Satisfaction Policy

Compare Similar

Compare Similar Products
Brand Rain Bird Rain Bird Rain Bird Rain Bird
Name 4 in. 17 ft. to 24 ft. Quarter Pattern Mini Rotor Sprinkler 4 in. 17 ft. to 24 ft. Full Pattern Mini Rotor Sprinkler 13 ft. - 18 ft. Full Circle Simple-Adjust Mini Rotor 13 ft. - 18 ft. Quarter Circle Simple-Adjust Mini Rotor
Price
$6.32
$7.31
$7.48
$8.99
Ratings (10) (20) (9) (9)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
1.5 in
Product Diameter (in.)
1.5
Product Height (in.)
6.25 in
Product Width (in.)
1.5 in
Retracted Height (in.)
6.25

Details

Color Family
Blacks
Features
Retraction Spring,Rotating
Head Material
Plastic
Inlet Type
Female
Irrigation System Component
Sprinkler
Material
ABS Plastic
Maximum Coverage Area (sq ft.)
254.34
Maximum Gallons Per Minute
1
Maximum Rotation (Degrees)
90
Maximum Spray Distance (ft.)
18
Minimum Spray Distance (ft.)
13
Mounting
In-Ground Install
Nozzle Material
ABS Plastic
Package Quantity
1
Pressure Rating
70
Returnable
90-Day
Riser
Riser Not Required
Sprinkler Angle Maximum (Degrees)
20
Sprinkler Angle Minimum (Degrees)
20
Sprinkler Head Material
ABS Plastic
Sprinkler Head Spray Pattern
Quarter Radius
Sprinkler Head Type
Multiple Stream
Sprinkler Location
Below ground
Sprinkler Type
Rotary
Thread Type
1/2" Female Pipe Thread

Warranty / Certifications

Manufacturer Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.

Specifications

Dimensions

Product Depth (in.)
1.5 in
Product Diameter (in.)
1.5
Product Height (in.)
6.25 in
Product Width (in.)
1.5 in
Retracted Height (in.)
6.25

Details

Color Family
Blacks
Features
Retraction Spring,Rotating
Head Material
Plastic
Inlet Type
Female
Irrigation System Component
Sprinkler
Material
ABS Plastic
Maximum Coverage Area (sq ft.)
254.34
Maximum Gallons Per Minute
1
Maximum Rotation (Degrees)
90
Maximum Spray Distance (ft.)
18
Minimum Spray Distance (ft.)
13
Mounting
In-Ground Install
Nozzle Material
ABS Plastic
Package Quantity
1
Pressure Rating
70
Returnable
90-Day
Riser
Riser Not Required
Sprinkler Angle Maximum (Degrees)
20
Sprinkler Angle Minimum (Degrees)
20
Sprinkler Head Material
ABS Plastic
Sprinkler Head Spray Pattern
Quarter Radius
Sprinkler Head Type
Multiple Stream
Sprinkler Location
Below ground
Sprinkler Type
Rotary
Thread Type
1/2" Female Pipe Thread

Warranty / Certifications

Manufacturer Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.

Questions & Answers

will the 13-18 ft rotatory sprinklers work in an area approximately 31 ft by 7 ft or is the area too small?

Asked by: Yarddude
Yes, this will cover a space of that size.
Answered by: CommunityAnswer
Date published: 2016-01-20

how do you adjust rotation and the distance

Asked by: jl
You have to lift the sprinkler head and there is a white mark on the left side of the output. Rotate the pop up sprinkler counter clockwise until the white mark is where you want the water to start.
Answered by: Gatito
Date published: 2018-04-26
