18000 BTU 1.5-Ton Dual Wall Mount Ductless Mini Split Air Conditioner with Heat Pump 220-Volt
- Ductless mini AC with a heat pump ensures energy-efficient use
- Multidimensional louvers enable even hot or cool air distribution
- Remote control enables convenient operation
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The RHDZ-18-2X9WM is sold with (2) 9000 BTU wall mount indoor units. The 18000 BTU outdoor unit can handle up to 2 indoor units total, depending on type and capacity, which do not need to all be installed at once. A perfect solution for residential and commercial applications, this multizone mini split system can climate control multiple indoor areas with one consolidated 220-230V outdoor unit powering the entire system. You can mix and match evaporator styles - wall mount, ceiling cassette, concealed duct, universal floor/ceiling and mini floor consoles to create a unique heating and cooling system. (For a custom-configured system featuring more or different indoor units, please contact customer support on how to order.) Featuring industry-leading energy efficiency, these systems offer up to 22.5 SEER using inverter control technology with variable speed heat pump compressors. All systems feature pre-flared pre-flanged insulated copper line sets for each indoor unit, efficient cooling and heating down to -13 degrees Fahrenheit, automatic operation, intelligent pre-heat/defrost, sleep mode/timer, remote control for each indoor unit and more.
Highlights
- This model (RHDZ-18-2X9WM) is sold with (2) 9000 BTU indoor units w/ wireless digital remotes, (1) 18000 BTU outdoor unit, (2) 25 foot copper line sets w/ installation kits
- Outdoor unit can handle up to 2 total indoor units, depending on type and capacity. This model is sold featuring the indoor unit styles and quantities pictured and described. Other types of indoor units are available, and are fully interchangeable - Wall Mount, Ceiling Cassette, Slim Duct, or Console. (For a custom-configured system featuring more indoor units, please contact customer support on how to order.)
- Each indoor unit can be controlled using app and WiFi, either by USB adapter (Wall Mounts only) or WiFi-enabled remote control accessory, each sold separately
- 21.3 SEER ultra energy efficiency
- Heating and cooling down to -13ºF
- Easy setup - even self-installation - for multiple zones that can be controlled separately
- Automatic operation
- Intelligent pre-heat, intelligent defrost
- Vertical auto swing - 3-dimensional swinging louvers direct airflow to uniformly spread air to every corner of room
- Comfortable sleep mode and timer
- Quiet operation, low noise level
- Multiple fan speeds
- LED display
- Self-diagnostic
- Memory function
- 5 Year Parts, 7 Year Compressor Replacement Limited Warranty
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Additional Resources
Shop All RamsondSpecifications
Dimensions
Air handler depth (in.) | 7.44 | Air handler height (in.) | 11.69 |
|---|---|---|---|
Air handler width (in.) | 31.57 | Condenser depth (in.) | 14.29 |
Condenser height (in.) | 27.64 | Condenser width (in.) | 33.37 |
Details
Air direction/circulation | 2-way | Air Handler BTU | 9000 BTU x 9000 BTU |
|---|---|---|---|
Air handler weight (lb.) | 18.1 | Amperage (A) | 10 A |
BTU Cooling Rating | 18000 BTU | BTU Heat Rating | 18000 BTU |
Color Family | White | Color/Finish | White |
Condenser weight (lb.) | 114 | Coverage Area (sq. ft.) | 800 |
Decibel (Sound) Rating | 62 dBA | Decibel Rating | 62 dBA |
Filter Type | Reusable | Included | Heater, Remote Control, Self-diagnostic tools, Support Brackets |
Line Set Length (Ft.) | 25 ft x 25 ft | Mini Split Features | Auto cool, Automatic shutoff, Defrost, Fan only option, Multi-zone compatible, Overload protection, Programmable, Sleep setting, Timer |
Minimum Outdoor Temperature (F) | -13 | Mount Location | Wall Mount |
Number of cool settings | 1 | Number of Fan Speeds | 3 |
Number of Tons | 1.5 ton | Pack Size | 5 |
Power Options | Hardwired | Refrigerant Compatibility | R-410A |
Remote Access | Remote Access | Returnable | 90-Day |
Voltage (v) | 220v | Wattage (watts) | 1173 |
Zone Capacity | 2 Zone |
Warranty / Certifications
Certifications and Listings | AHRI Certified, ETL Listed, Energy Star | Manufacturer Warranty | 5 Year Replacement Parts Only. 7 Year Replacement Compressor Only. Labor Excluded. |
|---|---|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 21.3 | Seasonal Energy Efficiency Ratio 2 (SEER 2) | N/A |
Questions & Answers
Would anyone know what error PC03 is I have checked and can’t find anything also it is not in the manual.
PC 03 is Pressure Protection, for further information you can contact our technical support department @ 866-777-7071
Do any ramsond mini splits have wifi temp control?
Yes they do on the multi zone units, it is an additional cost of $60.00 per indoor unit and can be purchased separately. Ramsond
The Ramson website says that you do not need to vacuum the linesets, but the instruction do. Do the linesets have to be vacuumed prior to use?
https://www.ramsond.com/r25v50/ .... The website specific states: "4. NO NEED TO VACUUM THE LINES Once the copper line sets have been connected and tightened, simply open the two release valves. There is no need for vacuum pumping the lines."
Thank you for your interest, we have thoroughly reviewed our website to find where we say (do not need to vacuum) and have not been able to locate. We have 2 reccomendations when it comes to the final steps of installing our units, 1 we recommend to vacuum the system, that way to ensure all air is out of the system and also check for any leaks at the same time by holding a vacuum. 2nd is to purge the system if you do not have means to a vacuum pump, purging instructions are listed on our website under the customer service tab. Ramsond
how long is the communication wire
29 feet.
Does this need 12/2 or 12/3 wire and what size breaker?
20 Amp breaker & consult the local wiring codes for your municipality to comply with legal requirements.
Is this unit able to control two rooms simultaneously requiring two different temperatures?
Yes, you will be able to climate control 2 different rooms at the same time set to different temperatures, though due to fundamental design both units must be running in the same MODE (e.g. both heating OR cooling, not one heat & one cool).
I have 2areas that are 1000 sf each. i am thinking i need 2 complete sets...1 ouside unit with 2 modules,?
You can go with 1 outdoor unit and 2 indoor units. For 1000 sqft each you would require a 48,000 Btu outdoor with (2) 24,000 Btu indoor units to handle 2000 sqft total. Ramsond
Can I choose to cut the copper line sets to the length I need, flare the ends, and connect without having to worry about having too much refrigerant in the system? One of the lines will be approximately 15 ft, and the other less than 10 ft. Also, I preinstalled the wiring in preparation for a mini split - will 12 AWG wire with 20 AMP breaker be sufficient for this unit?
Thank you for your interest with Ramsond. You can shorten the lines to 10 and 15 feet and the system will still perform properly, and yes you will have to re-flare the cut lines. Wiring with 12 gauge wire and using a 20 amp breaker is proper for this unit. Ramsond
Viewing 1-8 of 12
Customer Reviews
2.5 out of 5
Loading Recommendations
Compare Similar Items
BTU Cooling Rating | |||
|---|---|---|---|
18000 BTU | 27000 BTU | 27000 BTU | 27000 BTU |
Zone Capacity | |||
2 Zone | 3 Zone | 3 Zone | 3 Zone |
Voltage (v) | |||
220v | 220v | 230v | 230/208v |
Mini Split Features | |||
Auto cool, Automatic shutoff, Defrost, Fan only option, Multi-zone compatible, Overload protection, Programmable, Sleep setting, Timer | Auto cool, Automatic shutoff, Defrost, Fan only option, Multi-zone compatible, Overload protection, Programmable, Sleep setting, Timer | Auto cool, Automatic shutoff, Ductless, Fan only option, Mobile App, Multi-zone compatible, Sleep setting, Timer, Wifi | Auto cool, Automatic shutoff, Defrost, Fan only option, Multi-zone compatible, Overload protection, Programmable, Sleep setting, Timer |
Minimum Outdoor Temperature (F) | |||
-13 | -13 | -13 | -13 |
Related Products
Sophia 18000 BTU 1.5 Ton 21.3 SEER Dual Cassette Multi-Zone Ductless Mini Split Air Conditioner with Heat Pump 230V
Sophia multi-zone is sold with 9000 BTU cassette indoor units. The 18000 BTU outdoor unit can handle up to 2 indoor units total, depending on type and capacity, which do not need to all be installed at once. A perfect solution for residential and commercial applications, this multizone mini-split system can climate control multiple indoor areas with one consolidated 220-Volt to 230-Volt outdoor unit powering the entire system. You can mix and match evaporator styles wall mount, ceiling cassette, concealed duct, universal floor/ceiling, and mini floor consoles to create a unique heating and cooling system. Featuring industry-leading energy efficiency, these systems offer up to 22.5 SEER using inverter control technology with variable speed heat pump compressors. Inverter technology are some of today's most advanced. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.
27000 BTU 2.25 Ton Dual Cassette/Wall Mount Ductless Mini Split Air Conditioner with Heat Pump 220-Volt
The RHDZ-27-12CT/12WM is sold with (1) 12000 BTU ceiling cassette indoor unit & (1) 12000 BTU wall mount indoor unit. The 27000 BTU outdoor unit can handle up to 3 indoor units total, depending on type and capacity, which do not need to all be installed at once. A perfect solution for residential and commercial applications, this multizone mini split system can climate control multiple indoor areas with one consolidated 220-230V outdoor unit powering the entire system. You can mix and match evaporator styles - wall mount, ceiling cassette, concealed duct, universal floor/ceiling and mini floor consoles to create a unique heating and cooling system. (For a custom-configured system featuring more or different indoor units, please contact customer support on how to order.) Featuring industry-leading energy efficiency, these systems offer up to 22.5 SEER using inverter control technology with variable speed heat pump compressors. All systems feature pre-flared pre-flanged insulated copper line sets for each indoor unit, efficient cooling and heating down to -13 degrees fahrenheit, automatic operation, intelligent pre-heat/defrost, sleep mode/timer, remote control for each indoor unit and more.
Sophia 27,000 BTU 2.5 Ton 22 SEER 2-Duct Multi-Zone Ductless Mini Split Air Conditioner with Heat Pump 230-Volt
Sophia multi-zone is sold with 2x12000 BTU slim duct indoor units. The 27000 BTU outdoor unit can handle up to 3 indoor units total, depending on type and capacity, which do not need to all be installed at once. A perfect solution for residential and commercial applications, this multizone mini-split system can climate control multiple indoor areas with one consolidated 220-Volt - 230-Volt outdoor unit powering the entire system. You can mix and match evaporator styles wall mount, ceiling cassette, concealed duct, universal floor/ceiling, and mini floor consoles to create a unique heating and cooling system. Featuring industry-leading energy efficiency, these systems offer up to 22.5 SEER using inverter control technology with variable speed heat pump compressors. Inverter technology are some of today's most advanced. Up to 5 indoor units can be connected to a single outdoor unit, reducing the number of outdoor units required. All indoor units can be individually controlled and do not need to be installed at the same time.

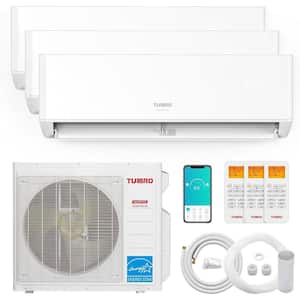

27,000 BTU 3 Zones 24 SEER2 Inverter Mini Split AC/Heating System, Ductless with Heat Pump, WiFi Enabled, (9K+9K+12K)
