Internet #202216484

Model # TCA1006D

0851890000393

Reliance Controls

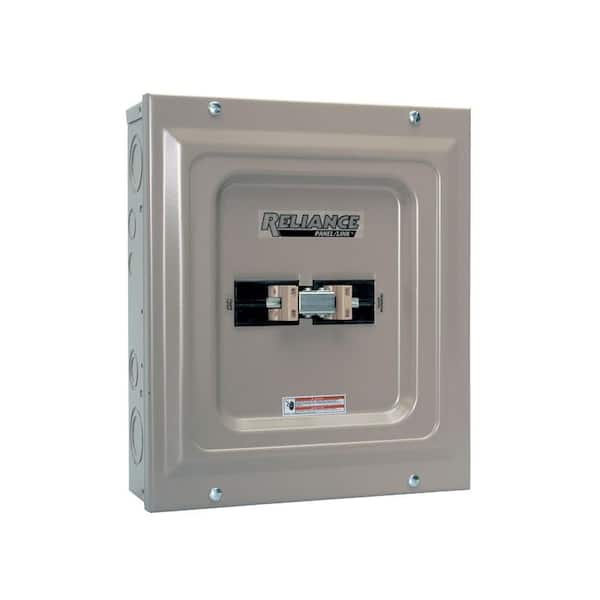

100 Amp Utility / Generator Transfer Switch

  • For switching from utility to generator power
  • Designed for indoor use only
  • Suitable for use as service entrance equipment
$ 139 43
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+

Product Overview

  • For switching from utility to generator power
  • Designed for indoor use only
  • Suitable for use as service entrance equipment
This double-pole manual transfer switch is for use with any 125/240V generator up to 15,000 running Watts. Ideal for switching a 100A service or subpanel from utility to generator power. The TCA0606D is completely code compliant and keeps the generator. This economical single-load transfer panel provides safe transfer from utility power to generator power for a home, office, garage or farm building where the entire circuitry in a main panel or subpanel is to be powered by a generator during a power outage. Compact, all-steel design completely isolates the generator from the utility with manual switching action. Maximum generator input is 15,000 Watt. Maximum utility input is 100A, 125/250VAC. Indoor surface-mount design.
  • Service entrance rated
  • Indoor installation only
  • Listed by Underwriters Laboratories Inc.
  • 5-year warranty
  • California residents see Prop 65 WARNINGS

Product Overview

  • For switching from utility to generator power
  • Designed for indoor use only
  • Suitable for use as service entrance equipment
Model #: TCA1006D
Internet #: 202216484

This double-pole manual transfer switch is for use with any 125/240V generator up to 15,000 running Watts. Ideal for switching a 100A service or subpanel from utility to generator power. The TCA0606D is completely code compliant and keeps the generator. This economical single-load transfer panel provides safe transfer from utility power to generator power for a home, office, garage or farm building where the entire circuitry in a main panel or subpanel is to be powered by a generator during a power outage. Compact, all-steel design completely isolates the generator from the utility with manual switching action. Maximum generator input is 15,000 Watt. Maximum utility input is 100A, 125/250VAC. Indoor surface-mount design.

  • Service entrance rated
  • Indoor installation only
  • Listed by Underwriters Laboratories Inc.
  • 5-year warranty
  • California residents see Prop 65 WARNINGS

Compare Similar

Compare Similar Products
Brand Reliance Controls Reliance Controls Reliance Controls Reliance Controls
Name Furnace Transfer Switch 60 Amp Utility / Generator Transfer Switch 100 Amp Utility / Generator Transfer Switch 30 Amp 250-Volt 7500-Watt Non-Fuse 6-Circuit Transfer Switch Kit
Price
$76.25
$84.99
$139.43
$299.00
Ratings (46) (15) (20) (208)
Number of Phases 1 1 1 1
Maximum Amperage (amps) 15 60 100 30
Power Distribution Features No Additional Features No Additional Features No Additional Features No Additional Features
Voltage (volts) 125 240 240 250
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
4
Product Height (in.)
13.5
Product Width (in.)
11.5

Details

Automatic/Manual
Manual
Electrical Product Type
Transfer Switch
Features
No Additional Features
Maximum Amperage (amps)
100
Maximum Wattage
15000 W
Number of Phases
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
10lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
5 years

Specifications

Dimensions

Product Depth (in.)
4
Product Height (in.)
13.5
Product Width (in.)
11.5

Details

Automatic/Manual
Manual
Electrical Product Type
Transfer Switch
Features
No Additional Features
Maximum Amperage (amps)
100
Maximum Wattage
15000 W
Number of Phases
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
10lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
5 years

Questions & Answers

I have a 100 service can this be hooked up to my main panel and run an 8500w generator

Asked by: al
I read your question 3 times, It does not sound like a good idea or project for you. I've seen too many people abuse electricity & wiring, and If you don't wire a xfer switch correctly, you can send power back out on the street that could injure or kill someone. Suggest & MOST important, consult a Licensed Master electrician, some states require this or it's law that ONLY a Master Electrician can wire in your home &/or business. Excellent life saving advice...hence the law in some states. It's cheaper than a hospital or legal fees!
Answered by: Sparky
Date published: 2018-12-31

Can this transfer switch be recessed into the wall, or does it have to be mounted on the surface?...

Can this transfer switch be recessed into the wall, or does it have to be mounted on the surface? Hard to tell from the pictures.
Asked by: JinLA
This box can be either inset or surface mounted; knockouts are located on all four sides. It is a very nice box, by the way.
Answered by: BaggerBob
Date published: 2019-05-24

Can be used for a pv solar system instead a generator?

Can be used for a pv solar system instead a generator?
Asked by: Reymon
Well, yes and no. If the solar system were to be used only for backup you could use this switch, however without batteries in the system it could only supply power during daylight hours, and then only if you could find an inverter that had a grid forming mode. For a microgrid, I would suggest an isolation switch to disconnect from the utility and grid forming micro inverters, like the Enphase IQ-8 for the solar panels. This would be a much better solution than a transfer switch.
Answered by: Tomswift
Date published: 2019-04-25

Utility side breaker is 100a, what size is generator side breaker?

Asked by: coachbcw
Hi, The 100amp refers to the rating or capacity of this switch, this switch is not the protection breaker of your generator, your generator should have it's own breaker to protect the generator. If you have a 100 amp service to your home this switch is connected to the incoming electrical service (input #1) and your main breaker panel (output ) that should also be rated for at least 100 amps. You then connect your generator input which is typically less than 100 amps (input #2). This manual transfer switch allows you to switch between the 2 inputs (mains or generator) but never to have both connected or linked. In the event that you are trying to use more power in the home than your generator can safely produce (pull too much current) your generator will have a builtin output breaker that will trip to protect itself and everything else. As this switch is installed between your main electrical service supply and your home breaker panel, you must ensure that this switch is rated sufficiently to be rated equal or higher than the main breaker on your home panel. If you have a 200amp main breaker panel and sufficient mains supply, you should not use this switch as it is underrated and will limit your home by tripping all the time you try to use more than 100amp. Remember to use sufficient gauge cable / wire for the generator feed and the grounding. There are similar models of this switch that are rated above and below this model.
Answered by: MofMichigan
Date published: 2019-03-22
  • y_2019, m_7, d_16, h_17CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_26
  • loc_, sid_202216484, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 8ms
  • QUESTIONS, PRODUCT

Customer Reviews

100 Amp Utility / Generator Transfer Switch is rated 4.4 out of 5 by 20.
Rated 5 out of 5 by from Compact, inexpensive, easy to install. Panel is well built and easy to install. Coupled breakers comply with Electrical Code. Price was good also as the component costs would have easily been double. Quick delivery too.
Date published: 2019-04-18
Rated 5 out of 5 by from Generator transfer switch 100 amp The product met my specification. Two transfer switches where installed in front of two loadcenters. As a electrician the installation was very basic. Installed a fixed male type plug below each transfer switch for the 4-wire 30amp cord from the generator. The transfer switches work great for residential type installations. Above item used for a mountain cabin where general utility power at times are off line.
Date published: 2011-02-23
Rated 4 out of 5 by from Good Product. Incomplete Specs. The main side is 100A. The generator side is only 60A. Not a big deal unless you are running a 12KW+ generator. Otherwise the product is quite well made.
Date published: 2011-09-14
Rated 4 out of 5 by from as advertised there was a ground bar but no neutral bar inside the box. Had to contact Reliance and they were super about it and sent one to my home free of charge ASAP. It works
Date published: 2014-10-16
Rated 3 out of 5 by from They should not call this a 100A transfer switch because... They should not call this a 100A transfer switch because one input is limited to 60A. It would be more accurately labeled a 100/60A manual transfer switch.
Date published: 2019-04-09
Rated 5 out of 5 by from Great switch panel Hook up was easy, plenty of room to run wires inside box
Date published: 2019-01-19
Rated 3 out of 5 by from Too hard for some people to operate the switch(es).... Too hard for some people to operate the switch(es).
Date published: 2019-04-16
Rated 5 out of 5 by from nice transfer switch This transfer switch was installed in my new barn along with a new service entrance. Nice switch, reasonably priced. Safe reliable and cost effective way to add a generator transfer switch to any residence or out building.
Date published: 2014-10-14
