Internet #205337808

Model #PBN30

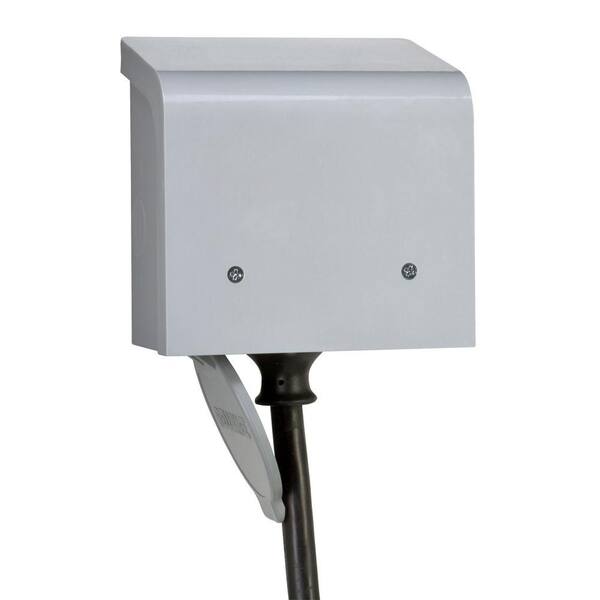

30-Amp Non-Metallic Power Inlet Box

  • Outdoor rated plug-in box for a portable generator cord
  • To connect a generator to a transfer device for backup power
  • 30 amp 4-wire L14-30 style power inlet
  • See More Details

Frequently Bought Together

+
+
Price:
$5999

Product Overview

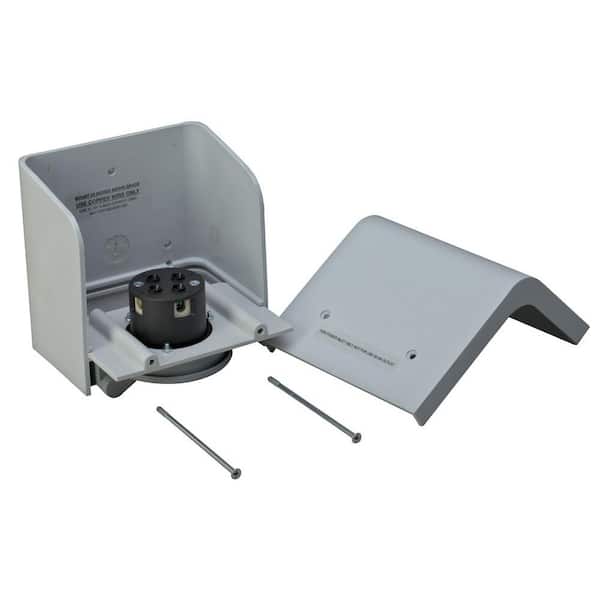

The raintight NEMA 3R PBN Series non-metallic power inlet box is designed for use with the Pro/Tran transfer switches and Panel/Link manual transfer panels and generator-ready load centers. This power inlet box should be installed outdoors in an open area where the generator is being used. Using one of the three 3/4 in. knockouts (one each on the sides and back) the power inlet box can be wired directly to the transfer switch or panel. The patented design provides over 100 cu. in. of wiring space and the slide-out base allows easy 360° access to the flanged inlet.
  • Connects a generator cord to a manual transfer switch or transfer panel
  • NEMA 3R raintight non-metallic enclosure, UV stabilized ABS construction
  • NEMA L14-30 configuration, 30-Amp at 125/250 VAC
  • Generous wiring space and easy assembly
  • UL listed
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Power Inlets

20-Amp Power Inlet Box,
current product
30-Amp Non-Metallic Power Inlet Box
Temporary Power Outlet Panel 20 and 50 Amp Receptacles - Unmetered
BrandReliance ControlsReliance ControlsSiemens
Name20-Amp Power Inlet Box,30-Amp Non-Metallic Power Inlet BoxTemporary Power Outlet Panel 20 and 50 Amp Receptacles - Unmetered
Price
$5145
$5999
$13142
Ratings
(17)
(42)
(3)
Maximum Amperage (amps)2030125
Voltage (volts)120/240240240
Electrical Product TypeBoxPower Inlet BoxPower Inlet Box
View ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
4.375
Product Height (in.)
6.25
Product Width (in.)
6.25

Details

Electrical Product Type
Power Inlet Box
Maximum Amperage (amps)
30
Product Weight (lb.)
1.6
Returnable
180-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
5 years

Questions & Answers

9Questions18Answers

is there a code that states how close to an oil fill pipe the plug can be installed to.

Asked by smit07 October 2, 2020
1
Answer

This is a question that is best answered by your local building authorities. Codes will vary from state to state and municipality to municipality.

Can you lock this box?

Asked by jconn161 July 28, 2020
2
Answers

No. There is a spring loaded cover over the inlet that keeps it covered when not in use but there is no provision for locking it.

Will this material discolor and get brittle and crack with exposure to the elements? Can it be pa...

Asked by Joepy March 15, 2019
2
Answers

It's a PVC-like material. Any "fusion" type of spray paint intended for lawn furniture and such would work.

Is it safe to use in the rain?

Asked by JK January 21, 2019
3
Answers

Yes - It is rated to be water tight. Make sure you use the appropriate conduit attachment with a rubber gasket. You can also seal the attachment with an additional bead of silicon sealer. I also ran a bead of silicon across the top of the panel where it met the wall to keep water from entering from the backside (my wall has no overhang). I also sealed the attachment screw holes inside the box with silicon.

When you plug in the female end does it slightly rotate to 'Twist Lock' the plug onto the male co...

Asked by DKS42 April 21, 2018
3
Answers

Yes, it is a "twist" lock style connector. You can position the connector by rotating it so that the "keyed" blade is in a more desirable position when you remove the connector for wiring.

In addition to the UL listing on the inlet box, is it also stamped or labelled ULc for use in Can...

Asked by Kyshido April 12, 2018
1
Answer

Yes, this inlet box is labelled cULus for use in the US and Canada.

Does this come with the 30amp outlet and is it a male end if it does?

Asked by Jg March 6, 2018
3
Answers

Yes, it came with a male 4 prong, 30 amp connector.

can this be used with a generator that is 9200 run and 11000 start .

Asked by DPJ December 27, 2017
2
Answers

No the PBN30 is designed for generators around 5500 running watts, you would need to step up to the PBN50 for your size generator.

how do you wire it

Asked by pete November 17, 2016
1
Answer

This is a 120/240 volt device so there are four wires: two hots, a neutral, and a ground. The wires come in to the inlet box through one of the knockouts in the side or back of the box and then are easily connected to the terminals on the power inlet. The bottom of the inlet box slides out for easy access to all four terminals.

Customer Reviews

  • 4.7
    out of 42 reviews
  • 93% recommend this product
5star-icon34
4star-icon5
3star-icon1
2star-icon2
1star-icon0
Filter by:
Showing 1-10 of 42 reviews
Product was all I hoped for. Using my hammer-drill, I easily attached the box to the cinder-block...
Product was all I hoped for. Using my hammer-drill, I easily attached the box to the cinder-block wall of my garage. Ran flexible conduit to box (popped out opening for attachment), and threaded 10 amp stranded wire (4 wire) to the box. I removed the plug to make wiring it more easy and then re-installed once wires were attached. Will use unit to connect my 7500W generator to my circuit breaker box in the garage. (Yes, I am using a interlock breaker set up to disconnect main power feed when using the generator).
by JH
Excellent: Updated back Punch-out Design. This non-metallic box is solid. The punch-out design ha...
Excellent: Updated back Punch-out Design. This non-metallic box is solid. The punch-out design has been updated since a 2016 reviewer pointing out a design flaw with “the rear punch-out hole to run the wire thru is immediately behind the outlet plug” This has been corrected as of 2018. The box I received from HD has the Rear punch-out now located in back upper left corner which makes cables entering from the back much easier to wire to the plug. The top cover is angled so it does not collect water. Having the plug on the bottom keeps water and snow away from the Plug connector area.
by RT
8 people found this helpful
exactly what I needed
One design flaw is the rear punch-out hole to run the wire thru is immediately behind the outlet plug inside the box. If it was raised about two inches, the incoming wire would clear the plug assembly making routing of the wires easier. I removed the plug assembly completely from the box to wire it (one has to in order to tighten the screw terminal on one, and maybe two of the connections). After connecting the and bending wires some to fit in the box, I re-installed the plug / cover piece. I then attached this to the side of the house, then installed the cover. I was a little concerned about breaking the plastic, as it deformed quite a bit as i was trying to push the wiring into place. Nothing broke, and everything fit into place when the cover was re-installed.
by slhelper
6 people found this helpful
Good materials for outdoor
Good materials for outdoor
by Deseitz1
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
This is the best! Coming from an old wire nut,...
This is the best! Coming from an old wire nut, master electrician. Doesn't look like an eyesore like a disconnect or bubble cover!
by HomeDepotCustomer
Rarely can you get it mounted as high as it...
Rarely can you get it mounted as high as it requires if you're going out of a basement.
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by RICHARD
Nice product. Easy to wire and install...
Nice product. Easy to wire and install
