Internet #205337810

Model #PBN50

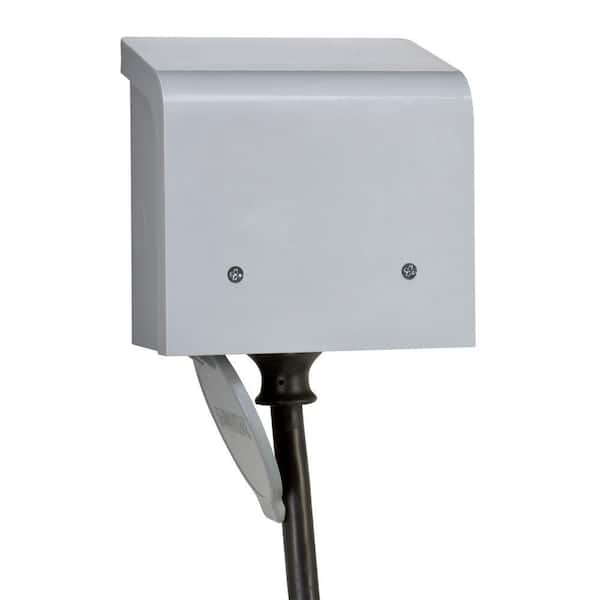

50 Amp Non-Metallic Power Inlet Box

  • Outdoor rated plug-in box for a portable generator cord
  • To connect a generator to a transfer device for backup power
  • 50 amp 4-wire CS6375 style power inlet
  • See More Details

Frequently Bought Together

+
+
Price:
$7999

Product Overview

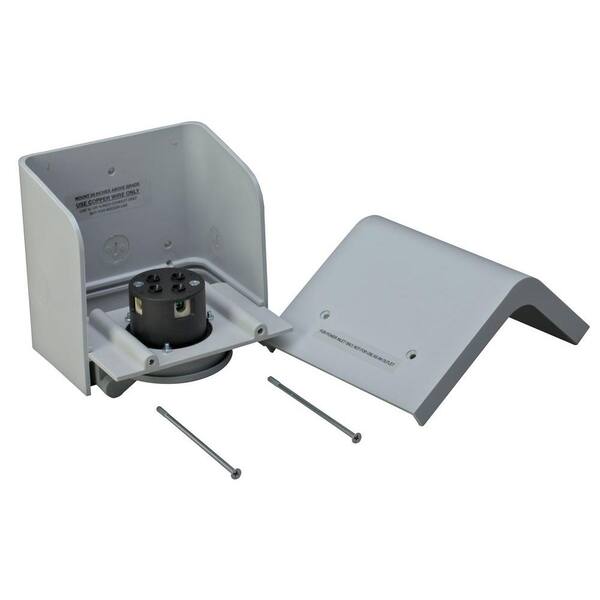

The raintight NEMA 3R PBN Series non-metallic power inlet box is designed for use with the Pro/Tran transfer switches and Panel/Link manual transfer panels and generator-ready load centers. This power inlet box should be installed outdoors in an open area where the generator is being used. Using one of the three 3/4 in. knockouts (one each on the sides and back) the power inlet box can be wired directly to the transfer switch or panel. The patented design provides over 100 cu. in. of wiring space and the slide-out base allows easy 360° access to the flanged inlet.
  • NEMA 3R enclosure, UV stabilized ABS construction
  • 50-Amp 4-wire locking configuration CS6365
  • Removable face for fast installation
  • 5 year warranty
  • UL listed
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Power Inlets

current product
50 Amp Non-Metallic Power Inlet Box
50 Amp Twist Lock Power InletTemporary Power Outlet Panel 20 and 50 Amp Receptacles - UnmeteredTemporary Power Outlet Panel with 20, 30, 50 Amp Receptacle Surface Mount - Unmetered
BrandReliance ControlsGESiemensTalon
Name50 Amp Non-Metallic Power Inlet Box50 Amp Twist Lock Power InletTemporary Power Outlet Panel 20 and 50 Amp Receptacles - UnmeteredTemporary Power Outlet Panel with 20, 30, 50 Amp Receptacle Surface Mount - Unmetered
Price
$7999
$8979
$13142
$14900
Ratings
(27)
(250)
(3)
(7)
Maximum Amperage (amps)5050125125
Voltage (volts)240240240240
Electrical Product TypePower Inlet BoxPower Inlet BoxPower Inlet BoxPower Inlet Box
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
4.375
Product Height (in.)
6.25
Product Width (in.)
6.25

Details

Electrical Product Type
Power Inlet Box
Maximum Amperage (amps)
50
Product Weight (lb.)
1.6
Returnable
180-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
5 years

Questions & Answers

2Questions3Answers

is this a twist lock receptacle? do you have a 50 amp range type male plug in the same type of box?

Asked by Ray August 31, 2018
2
Answers

I think VicL meant it accepts a CS6364 FEMALE connector only. But it contains the MALE connector.

Is this a 4 prong plug? If not, do you sell a 4 prong 50 amp power inlet box? If so can you send me the info?

Asked by 895green December 24, 2015
1
Answer

The inlet in this box is four conductor, 120/240 volt. In this configuration there are actually 3 prongs and one grounding tab making four conductors total. The connector that matches this inlet box is Reliance Controls part no. LL550C, internet no. 202216505.

Customer Reviews

  • 4.7
    out of 27 reviews
  • 100% recommend this product
5star-icon22
4star-icon2
3star-icon2
2star-icon0
1star-icon1
Filter by:
Showing 1-10 of 27 reviews
Item seems well built for plastic. Good design for accessing the back of the connector for wiri...
Item seems well built for plastic. Good design for accessing the back of the connector for wiring. Screw Terminals are hex head type, which is great for tightening the wires.
by Anonymous
Easy to install. Solid connections and seems well made.
Easy to install. Solid connections and seems well made.
by GregD
I purchased this inlet box to go with my Generac 50 AMP generator cable. This inlet box uses a H...
I purchased this inlet box to go with my Generac 50 AMP generator cable. This inlet box uses a Hubbell connector which I discovered to be superior to the Marinco connector found in the Reliance Controls PB50. The Marinco connector wire nuts we stripped with my unit, I could not tighten them. The nut basically screws onto two threads. The Reliance Controls PBN50 with the Hubbell connector is far superior. The wire nuts are Allen head screws with a size thread depth. The rivet on the PB50 Marinco connector is too large and prevents the Generac CS6364 connector from being inserted. The PBN50 Hubbell connector uses two smaller rivets and had the Generac cable fit perfectly. If you are using a Generac cable, make sure the connector is made by Hubbell.
by VicL
9 people found this helpful
Very easy to install. Even with 6-3 cable. Rated for outdoors but mine will be out of the weather...
Very easy to install. Even with 6-3 cable. Rated for outdoors but mine will be out of the weather. It is plastic so I'm not sure how it would hold up in a direct sunlight position in a very hot climate. Perfect for me.
by Steve
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
It works well so that the connected cable hangs without...
It works well so that the connected cable hangs without a bend.
by greg968
good material has more spece to connect you wire...
good material has more spece to connect you wire
by PEDRO
Excellent generator power inlet box
Picked up this reliance inlet box for my new generator setup. I'm an electrician and have installed a ton of reliance generator products and this is by far the best option for a 50 amp inlet box. I highly recommend getting this box over the standard reliance PB50. This box not only has a ton more room to make your connection to the plug, but it also has the receptacle pointing down instead of straight out. This will keep the plug out of the elements and prevent water from seeping by where the receptacle and plug meet. The standard PB50 is about half the size of this box and it's extremely difficult to wire, even if you use flexible SO cord. All in all I'm very happy with the box and highly recommend it you need a 50 amp box for your generator.
by Rivs
1 person found this helpful
Worked well. Plenty of room for 6 gauge, 3...
Worked well. Plenty of room for 6 gauge, 3 conductor with ground wire.
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
