Model # LL550C

Internet #202216505

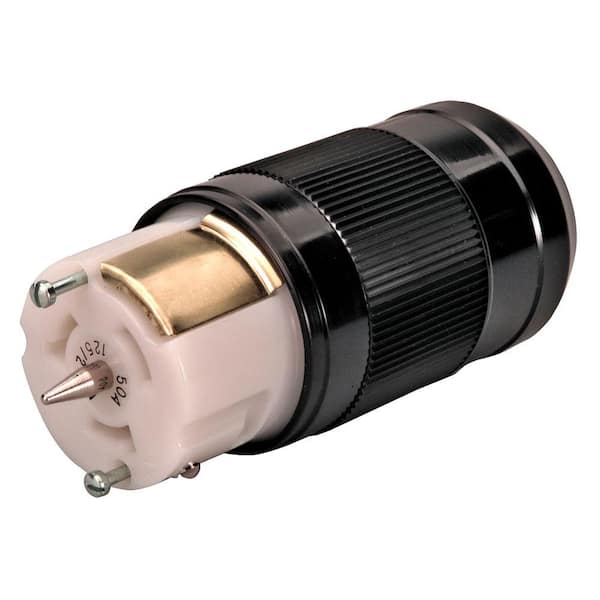

Reliance Controls Twist Lock 50-Amp 125/250-Volt Connector
0851890000201

Reliance Controls

Twist Lock 50-Amp 125/250-Volt Connector

  • For use with portable generators up to 12,500-Watt
  • Heavy-duty, durable design
  • Backed by 5-year limited warranty
$ 44 28
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • For use with portable generators up to 12,500-Watt
  • Heavy-duty, durable design
  • Backed by 5-year limited warranty
This heavy-duty cord plug is for use with portable generators up to 12,500-Watt. The LL550C has a CS6364 configuration, is UL listed and features a 5-year limited warranty. Rated 50 amps at 125/250-Volt.
  • Rugged and durable
  • CS6364 configuration for use with reliance PB50 power inlet box
  • 5 year limited warranty
  • UL listed
  • California residents see Prop 65 WARNINGS

Product Overview

  • For use with portable generators up to 12,500-Watt
  • Heavy-duty, durable design
  • Backed by 5-year limited warranty
Model #: LL550C
Internet #: 202216505

This heavy-duty cord plug is for use with portable generators up to 12,500-Watt. The LL550C has a CS6364 configuration, is UL listed and features a 5-year limited warranty. Rated 50 amps at 125/250-Volt.

  • Rugged and durable
  • CS6364 configuration for use with reliance PB50 power inlet box
  • 5 year limited warranty
  • UL listed
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$44.28
$51.52
$54.85
$58.15
Name Twist Lock 50-Amp 125/250-Volt Connector 60 Amp 250-Volt 3-Phase Straight Blade Grounding Angle Plug, Black/White 60 Amp 125/250-Volt Straight Blade Grounding Angle Plug, Black/White 60 Amp 120/208-Volt Straight Blade Non-Grounding Angle Plug, Black/White
Brand Reliance Controls Leviton Leviton Leviton
Ratings (23) (0) (2) (0)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.25
Product Height (in.)
5.75
Product Width (in.)
2.25

Details

Color Family
Black
Color/Finish
Black
Connection Type
Twist Lock
Electrical Features
No Additional Features
Electrical Product Type
Connector
Grounding
Self-Grounding
Indoor/Outdoor
Outdoor
Male/Female
Female
Material
Thermoplastic
Maximum Amperage (amps)
50
Mounting Type
Plug-In
NEMA Configuration
Non-Nema
Package Quantity
1
Plug/Connector
Connector
Rating
General Purpose
Returnable
90-Day
UL Listing
1-UL Listed
Voltage
120 volt,240 volt
Wire Type
4-Wire

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
5 years

Specifications

Dimensions

Product Depth (in.)
2.25
Product Height (in.)
5.75
Product Width (in.)
2.25

Details

Color Family
Black
Color/Finish
Black
Connection Type
Twist Lock
Electrical Features
No Additional Features
Electrical Product Type
Connector
Grounding
Self-Grounding
Indoor/Outdoor
Outdoor
Male/Female
Female
Material
Thermoplastic
Maximum Amperage (amps)
50
Mounting Type
Plug-In
NEMA Configuration
Non-Nema
Package Quantity
1
Plug/Connector
Connector
Rating
General Purpose
Returnable
90-Day
UL Listing
1-UL Listed
Voltage
120 volt,240 volt
Wire Type
4-Wire

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
5 years

Questions & Answers

Will this connector work with #4 THHN?

I would like to use this connector to hook my #4 THHN solar panel wires (+, - and ground) to the existing Reliance box on my house.
Asked by: Mopar
Yes, that's exactly what I connected it to. I bought the power cord four conductor 4ga cord... Pricey, but it will last forever!
Answered by: Keldawwg
Date published: 2019-01-03

I would like to replace my dryer outlet (and dryer plug) w/ these so i can use a service box to get 220 to my shop to run my buzzbox arc welder ...

I know the breaker for the dryer is rated at 30 amps This is to run a welder or air compressor but not both at the same time
Asked by: Kriscot
If your dryer circuit is only a 3 wire cable than this circuit would not be adequate for 120/240 volt circuit. A three wire circuit can only deliver a 120 volt circuit or a 240 volt circuit. Three wire cable can not do both. A four wire circuit for dryers is now required by the NEC, the four wire cable has an additional wire and is the neutral of the circuit. The neutral makes it a combination circuit 120/240 volt, with out the neutral you only have 240 Volt or rewire the circuit in the panel to make a 120 volt circuit.
Answered by: Almsgiving
Date published: 2018-12-28

What is the name of this plug and do you have the male plug?

I need the male to covert to an RV 4 blade connector
Asked by: Flipper
This is the male plug that I'll be using for the connections to hook up my new Generac 15,000 watt generator.
Answered by: Highlander
Date published: 2018-03-01

My 7500 watt portable generator has a 120/240v 30-amp output line. Can I use this Reliance 50-am...

My 7500 watt portable generator has a 120/240v 30-amp output line. Can I use this Reliance 50-amp female connector to make my own extension cord? Or should I use the Reliance 30-amp female connector (L1430C)? I might upgrade to a bigger generator so hope to be able to use the same cord.
Asked by: Roberto
No. You will need to look for a L14-30 connector. A larger generator will require a larger cord
Answered by: SE
Date published: 2018-01-20
  • y_2019, m_1, d_21, h_23CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_7
  • loc_, sid_202216505, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 28ms
  • QUESTIONS, PRODUCT

Customer Reviews

Twist Lock 50-Amp 125/250-Volt Connector is rated 4.7 out of 5 by 23.
Rated 5 out of 5 by from Excellent product. Excellent product, well priced, easy to instal, works as described.
Date published: 2019-01-07
Rated 5 out of 5 by from Very good quality, had to modify it slightly for it to work on my new Airstream Flying Cloud. The... Very good quality, had to modify it slightly for it to work on my new Airstream Flying Cloud. The center prong had to be removed, and I had to trim the black plastic outer cover back to allow it to fully plug in and lock. But it works perfectly now and I am very happy with it.
Date published: 2019-01-03
Rated 5 out of 5 by from very well made fast shipping ... very well made fast shipping
Date published: 2018-12-18
Rated 2 out of 5 by from I bought this plug only because there were no other... I bought this plug only because there were no other plugs available to use with a Reliance generator 50 amp box. I feel like both were overpriced but Home Depot’s price was one of the cheapest I found.
Date published: 2018-11-27
Rated 5 out of 5 by from Everything was fine... Everything was fine
Date published: 2018-10-30
Rated 5 out of 5 by from Purchased this s along with outlet and transfer case they... Purchased this s along with outlet and transfer case they seem like a very good product
Date published: 2018-07-31
Rated 5 out of 5 by from Great price and good quality... Great price and good quality
Date published: 2018-07-24
Rated 5 out of 5 by from Exactly what I was looking for.... Exactly what I was looking for.
Date published: 2018-07-11
