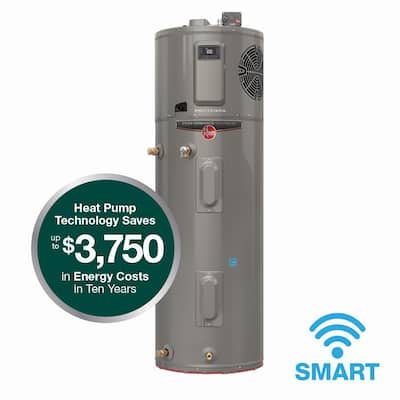

ProTerra 40 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater with Leak Detection & Auto Shutoff

$164900
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Hybrid electric heat pump saves up to $460 in annual energy costs
  • Auto Shutoff Valve protects your home from potential water damage
  • Provides ample hot water for homes with 2+ bathrooms / 2-4 people
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$164900

Product Overview

The Rheem ProTerra Electric Hybrid is the smartest, quietest and most efficient water heater on the market. It features a hybrid heat pump design making it 400% more efficient than standard electric water heaters. It's so efficient, it pays for itself in 2-3 years and has an estimated energy cost savings of up to $4,600 over 10-years. This ProTerra hybrid model features LeakGuard, the integrated the 360° leak detection system and the auto shut-off valve system that shuts off incoming water, locks water in the tank and protects your home. It's smart: with its built-in WiFi and the EcoNet app, you can check hot water availability, track energy usage and can control its modes; you can choose the efficiency or performance you want. As Performance Platinum, it comes with a 10-year warranty and 1-year in-home labor warranty.
  • Provides an estimated energy cost savings of $460 per year
  • Pays for itself in 2-3 years thanks to an amazing 3.75 uniform energy factor and features that deliver long-term savings
  • Protects your home from potential water damage with LeakGuard, the 360° leak detection system and the auto shut-off valve that shuts off incoming water and locks water in
  • Smartest: built-in EcoNet Wi-Fi technology allows you to manage hot water and avoid cold showers; track weekly, monthly & yearly energy usage; and manage heating schedule your mobile device
  • Flexible: select the efficiency or performance you want with modes such as High Demand Mode to provide more hot water when needed. There's even a Vacation Mode to save energy and costs when you're away.
  • Save even more with Energy Star rebates: it's Energy Star certified so it may be eligible for rebates in your area. Check for rebates through your state and local government or electric utility provider
  • Sustainable: reduces Carbon footprint with 75% reduction in energy use
  • Demand Response Ready: if your utility requires a grid connection, connect without any additional costs and save more with Off-peak Scheduling
  • More hot water: provides more hot water than many standard residential electric models providing ample hot water for households with 2-4 people or homes with 2+ bathrooms
  • Easy installation: easily accessible electrical junction box for convenient hook up and drop-in replacement for nearly any standard electric water heater
  • Ductable: Duct colder exhaust air into your attic, another room or out of your home
  • Easy to maintain: premium brass drain valve for easy draining and stainless steel elements that prevent buildup
  • Warranty: 10-year warranty with 1-year in-home labor warranty
  • Savings & efficiency information is located on Product Specification documents
  • As with any WiFi connected device, for best performance use your phone or tablet to check the Wi-Fi signal strength in the area where the water heater will be installed prior to purchase.
  • Click here for more information on the federal tax credit rebate and certification
  • Call 1-855-400-2552 before noon for same-day installation service in most areas, or visit our Water Heater Installation page for more information.



  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

ProTerra 40 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater with Leak Detection & Auto Shutoff

Compare Similar Smart Water Heaters

current product
ProTerra 40 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater with Leak Detection & Auto Shutoff
Performance Platinum 65 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water HeaterTop RatedProTerra 65 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater with Leak Detection & Auto ShutoffBest SellerPerformance Platinum 80 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater
BrandRheemRheemRheemRheem
NameProTerra 40 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater with Leak Detection & Auto ShutoffPerformance Platinum 65 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water HeaterProTerra 65 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater with Leak Detection & Auto ShutoffPerformance Platinum 80 Gal. 10-Year Hybrid High Efficiency Smart Tank Electric Water Heater
Price
$164900
$187900
$209900
$237900
Ratings
(1711)
(1711)
(1711)
(1711)
Nominal Tank Capacity (gallons)40656580
Water Heater ProfileTallTallTallTall
Application TypeResidentialResidentialResidentialResidential
Efficiency LevelSuper HighSuper HighSuper HighSuper High
Water Heater FeaturesGlass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve,Vacation Mode,WiFiGlass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve,Vacation Mode,WiFiGlass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve,Vacation Mode,WiFiGlass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve,Vacation Mode,WiFi
Smart HomeSmart Home EnabledSmart Home EnabledSmart Home EnabledSmart Home Enabled
Fuel TypeElectricElectricElectricElectric
Commercial/ResidentialResidentialResidentialResidentialResidential
View ProductView ProductView ProductView Product

Specifications

Dimensions

Kilo Watt
4.5
Product Depth (in.)
20.25 in
Product Height (in.)
63 in
Product Width (in.)
20.25 in
Tank Valve Size (in.)
0.75
Water Connection Size (in.)
0.75

Details

Amperage (amps)
20.83 A
Application Type
Residential
Commercial/Residential
Residential
Efficiency Level
Super High
Electricity Phase
Single Phase
Finish Family
Gray
First Hour of Delivery (gallons/hr)
46
Fuel Type
Electric
Household Size
2-4
Indoor/Outdoor
Indoor
Maximum Temperature (F)
150
Minimum Temperature (F)
110 °F
Nominal Tank Capacity (gallons)
40
Number of Elements
2
Pack Size
1
Power Options
Hardwired
Product Weight (lb.)
174 lb
Rated Tank Capacity (gallons)
36
Remote Access
Remote Access
Required Volt Connection
240 volt
Requires Hub?
No Hub Required
Returnable
90-Day
Smart Home
Smart Home Enabled
Smart Home Protocol
Wi-Fi
Tank Lining Material
Glass
Tank Warranty
10 Year
Uniform Energy Factor
3.75
Voice Control Hub Required
No Voice Control
Water Heater Features
Glass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve,Vacation Mode,WiFi
Water Heater Profile
Tall
Wattage (watts)
4500
Works With
Alexa

Warranty / Certifications

Certifications and Listings
UL Listed
Labor Warranty
1 Year
Part Warranty
10 Year

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.5
    out of 1,758 reviews
  • 81% recommend this product
Filter by:
Showing 1-10 of 1,758 reviews
:)
Good value water heater
by Waterford fellow
  • Verified Purchase
  • Recommended Product
Efficient? Yes! What's not to like? It's noisy!!
This is a good water heater, it is efficient and will save pretty close to the money Rheem claims, but they do not mention it's major drawback, and that is the noise it generates, both from the fan which is loud and the condenser unit which has a penetrating buzzy, clicky sound. In the average home, this could be deal breaker. I read about it before I bought mine and I hoped it would not be as bad as people made out, but it was. Our laundry/utility room is under the kitchen, the sound easily penetrated the uninsulated flooring. Worse, the noise permeated into the the living space and the bedroom downstairs which have a common walls with the utility room. Something had to be done, so I set about doing some McGyver sound insulation. I wrapped the top half of the tank and the top with some leftover carpet pad - 1/2" dense foam with a water seal backing, making sure to leave the intake and exhaust clear, next I cut a plastic storage box to the shape needed to direct the exhaust downwards and insulted that with the carpet pad. Finally I built a hood with an overhang to cover the intake out of cardboard and wood and insulted that too. My sound meter is bust, so I can't tell exactly how much this reduced the noise, but I would say around 60%, which is better than I had expected. The fix cost me $20 in materials. I researched professional acoustic materials before starting, finding the cost of those materials would have been ~$500. It does look a little funky, but it works and I am am moving on. I do think Rheem should be more upfront about the noise. Maybe I should start a business doing should insulation on Rheem water heaters.
by Handyman2021
    • Recommended Product
    3 people found this helpful
    Very Nice Water Heater
    Great water heater for a family of 4. It took about 2hrs to install myself but not overly difficult w/ CPVC. Now all I need is it to help lower my electric bill!!!! I do like the app and it is easy to use.
    by Joe
      • Recommended Product
      2 people found this helpful
      80Gallon Pro Terra Elec HW Htr
      My all elec AO Smith was 15+ years old and I wanted a more efficient solution (plus there was rust showing telling me it was time). Found this Rheem 80G Pro Terra Hybrid Unit on sale at HD. After checking the heights in my mech room I ordered this unit and hired a local plumber to install with Pro Press copper. Unit fired up and the first warm up was all elec coils and heat pump. Holds 120degF easily. The app is weak and glitchy for the first 48 hours. One false alarm on day #2 for a water leak and the safety valve closed like a clam. Cleared the alarm and runs well ever since. We use about 220 gallons total water each day and estimate 120+ HW of that total. Fluctuating in Energy Saver mode and I can see the spike when elec coils called to work. Rheem should have their own app as there is no explanation of the sequence of operations when either elec coil is asked to work. I realized my house using two + long showers while kitchen cooking is the peak. The instructions call for a pan which prevents service to the leak rope sensor when following their installation instructions. I chose the hard pipe connections as the braided soft connection tend to be the weak point. This unit does make noise and is like a larger fridge in my living room directly above the heater. I knew this in advance so this should not be a mystery to you when buying this unit. Very tolerable if you expect it. Pulls the room down 5 deg F and less humid during this summer. A better app or control board would show the three sensors and indicate when the coils are running. Or better yet show tank temperature at the low med high point. This current model is excellent and I recommend it highly for those who need to change their current elec unit. Do hire a plumber unless you own a pro press kit. I could have done this myself however the value speed and peace of mind makes a good plumber worth it. It is a two person install. A friend has the AO Smith version and it is too noisy. I don’t think of this as a payback period although I will see a refund of $400 from my utility company and a $300 fed tax credit this year. I see this as cost avoidance at 200am on a weekend if I waited any longer.
      by CTHomeowner2021
        • Recommended Product
        6 people found this helpful
        I would definitely recommend this product. The very 1st day I got it the results was absolutely i...
        I would definitely recommend this product. The very 1st day I got it the results was absolutely impressive. I had hot water in one hour. can you believe that? Plus a key important feature was the fact that since I live in Florida and you know it's hot in Florida My garage was surprisingly cooler Then what it normally is. So my advice to you if you are in the market for a new water heater this is the one you need to get if you live in a warm environment In order to take advantage of all the benefits that it has benefits daddy has. If you live up North then this may not be the one for you Remember is sucks in the heat from outside releasing cool air out to wherever you have this water heater installed. But if you live up North they have a remedy for that and that is duckwork In order to blow the cooler out of your house.
        by Gonzo
        Response from RheemJun 29, 2021
        Hi Gonzo,

        Thanks for taking to review the Rheem ProTerra Water Heater. We appreciate the great feedback on installation and performance.

        Jennifer rheem
        • Verified Purchase
        • Recommended Product
        4 people found this helpful
        I am a homeowner who generally does all my own maintenance and installation of appliances, HVAC, ...
        I am a homeowner who generally does all my own maintenance and installation of appliances, HVAC, building skills. These are my impressions after having it for 3 months. Pros: The heater was a very easy install. I connected it up to PEX plumbing and had it running within 2 hours. The app is a nice feature although I hardly mess with it, you can easily adjust the heater remotely or physically on the unit with a nice display. Cons: It does put off white noise I would estimate as loud as a microwave. My unit is in the middle of the house so you can definitely hear it when it runs but I am not annoyed by the white noise. The heater produces condensate (water from the heat pump). This requires drain access of some sort. While I don’t have a drain in the room I have plumbed this to my water softener system. The heater had an intake and exhaust which cannot be blocked. I have it very close to a wall and it’s almost an issue. The heater wasn’t in stock and took 30 days for it to be delivered. If this unit isn’t in stock, don’t expect it in a hurry.
        by Kglw
        • Verified Purchase
        • Recommended Product
        11 people found this helpful
        Will pay for itself I hope
        First impressions: It came well packaged, delivered by a trucking company. Installation was done by a licensed plumber. The LCD display is hard to read looking at the same level, you must look at it from slightly below or the display is unreadable. I finally got the app working after several attempts, somehow it was working with lots of great information and abilities the day after installation. The heat exchanger is quiet and it acts like an air conditioner in my garage, nice cool dehumidified air This hybrid type of water heater is not designed for small enclosed spaces, it needs lots of airspace to function properly, read the manual for details. The low energy usage is the biggest reason I bought this model. If you compare estimated annual costs of this system to an all electric, it pays for itself in 3 years or less.
        by Dave
          • Recommended Product
          3 people found this helpful
          Seems to be working as advertised and was easy to install. It also is helping to keep my garage c...
          Seems to be working as advertised and was easy to install. It also is helping to keep my garage cool!
          by flashman6692
          • Verified Purchase
          • Recommended Product
          3 people found this helpful
          love it so far
          self-installed last week, great output and energy use so far. look for a plumbing company to install, but they just wanted to keep trying to sell their products
          by Brandino
            • Recommended Product
            2 people found this helpful
            Decent water heater BUT
            I'll have to admit, I was super excited when we purchased this water heater and had it installed. It worked great from November to March. This month we have been receiving error codes every afternoon. EcoNet Alert - A005 Heat Pump Water Heater Gen 5 Compressor Shutdown: Discharge Temp High and a Hardware Alarm. The unit itself is set to Energy Saver mode. I have called Rheem twice and still to do this no one can give me an answer to what's wrongs. The installer isn't familiar with the units, so thats also a dead end. I was told this unit works efficiently between 40-145 degrees. Yet once the outside temperature nears 70 degrees we seem to get these errors. Any help from Rheem would be greatly appreciated.
            by Devildg4671
              23 people found this helpful
              Showing 1-10 of 1,758 reviews
