4-1/2 in. Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge for Right-Hand Wall-to-Glass/Post-to-Glass Mount

$26102
Apply Now
Save up to $100 on your qualifying purchase.
Apply for a Home Depot Consumer Card
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
Price:
$26102

Product Overview

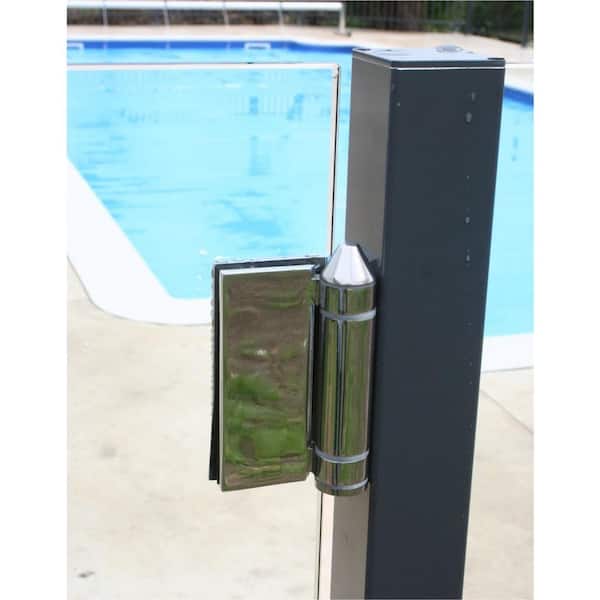

90° Pool Gate Hinge with adjustable tension. Designed to open outward and to be installed on a post (round or square) or on a wall. In order to adjust the tension, simply remove the coned cap.
  • Gives an exceptional clear view in exterior spaces
  • Ideal for use on pool gates
  • Weatherproof
  • Using a spring-loaded hinge along with a magnetic latch maximizes security and reduces water access, these components help prevent drowning, but do not replace close monitoring
  • Recommended for: interior and exterior usage
  • Safety glass thickness: 13/32 in. to 15/32 in. (10 mm to 12 mm)
  • Mounting side: right side
  • Weight capacity for 2 hinges: max 88 lbs. (40 kg)
  • Recommended door width: maximum 39-3/8 in (1000 mm)
  • Product dimensions - height x length x width: 4-17/32 in (115 mm) x 2-3/4 in (70 mm) x 1-25/32 in (45 mm)
  • Milling diameter: 5/8 in. (16 mm)
  • Center to center measurement (distance between the drill holes): 2-19/32 in. (66 mm)
  • Finish: stainless steel, made of 316 grade stainless steel
  • Included: 1 adjustable 90° wall or post mounting hinge, 1 square post adaptor, 1 round 2 in. Dia post adaptor, 1 PVC rectagular protector, 2 Philips screw M6 x 50 mm L, 2 allen screw M6 x 16 mm L
  • Installation must always be done by qualified personnel
  • California residents

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Gate Hinges

current product
4-1/2 in. Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge for Right-Hand Wall-to-Glass/Post-to-Glass Mount
4-1/2 in. Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge for Left-Hand Wall-to-Glass/Post-to-Glass Mount4-1/2 in Polished Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge, Right-Hand Wall-to-Glass/Post-to-Glass Mount4-1/2 in. Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge for Glass-to-Glass Mount
BrandRichelieu HardwareRichelieu HardwareRichelieu HardwareRichelieu Hardware
Name4-1/2 in. Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge for Right-Hand Wall-to-Glass/Post-to-Glass Mount4-1/2 in. Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge for Left-Hand Wall-to-Glass/Post-to-Glass Mount4-1/2 in Polished Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge, Right-Hand Wall-to-Glass/Post-to-Glass Mount4-1/2 in. Stainless Steel Adjustable Spring-Loaded Pool Gate Hinge for Glass-to-Glass Mount
Price
$26102
$26102
$28588
$29676
Ratings
(0)
(0)
(0)
(0)
MaterialStainless SteelStainless SteelStainless SteelStainless Steel
Product Width (in.)1.77 in1.77 in1.77 in1.57 in
Duty RatingStandardStandardStandardStandard
Gate MaterialGlassGlassGlassGlass
Hardware Finish FamilyStainless SteelStainless SteelSilverStainless Steel
Gate Operation TypeSwingSwingSwingSwing
Gate TypePoolPoolPoolPool
Assembled Length (in.)2.76 in2.76 in2.76 in4.17 in
FeaturesAdjustable,Self-ClosingAdjustable,Self-ClosingAdjustable,Self-ClosingAdjustable,Self-Closing
View ProductView ProductView ProductView Product

Specifications

Dimensions

Assembled Length (in.)
2.76 in
Product Depth (in.)
1.77 in
Product Height (in.)
4.53 in
Product Width (in.)
1.77 in

Details

Builders Hardware Product Type
Gate Hinge
Duty Rating
Standard
Fasteners included
Yes
Features
Adjustable,Self-Closing
Finish
Stainless Steel
Finish Family
Stainless Steel
Gate Material
Glass
Gate Operation Type
Swing
Gate Type
Pool
Hardware Finish Family
Stainless Steel
Hinge Type
Spring
Material
Stainless Steel
Package Quantity
1
Returnable
90-Day
Style
Modern

Warranty / Certifications

Manufacturer Warranty
Lifetime Limitted Warranty
