Model #JSS-MCA

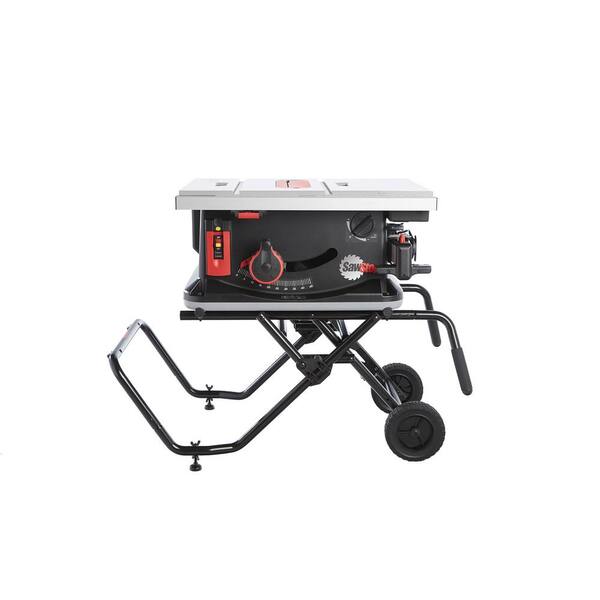

Legacy Jobsite Saw with Mobile Cart Assembly - 15 Amp, 120-Volt, 60Hz

  • SawStop’s patented safety system stops on contact with skin
  • T-style fence slides easily, self-squares and locks down firm

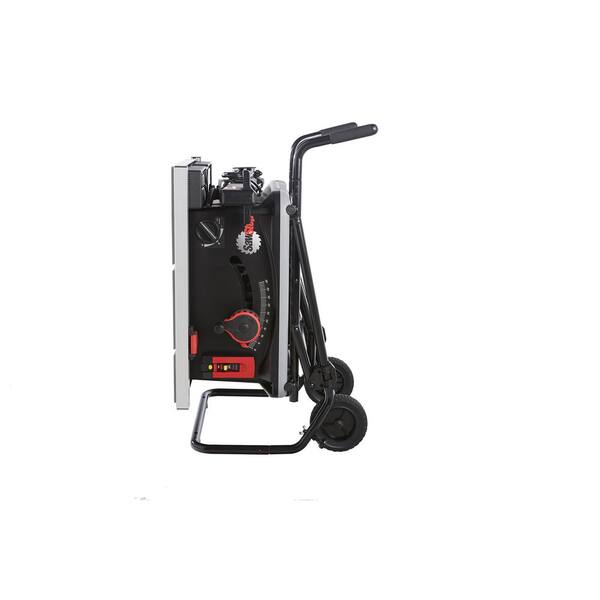

  • Mobile cart easily expands or collapses with one push pedal
  • See More Details

Frequently Bought Together

+
Price:

Product Overview

The 1.5 HP, 15 Amp SawStop Legacy Jobsite Saw is the standard in jobsite safety. Equipped with SawStop's patented blade braking technology, this saw delivers unmatched protection coupled with groundbreaking functionality. With the 1 Turn Elevation and Quicktilt features, users can raise and lower the blade with just 1 turn of the handwheel and quickly tilt the blade for bevel cuts saving valuable time. The solid T-Style Fence with Ergolock allows the fence to slide smoothly along the rails and locks in tight for accurate cuts. Simple, intuitive action extends the Mobile Cart for use and collapse the cart for transport and storage. This saw includes 1 standard brake cartridge, 1 40-tooth blade, 1 zero clearance insert, a collapsible rolling cart, micro blade guard and riving knife. Experience the precision, quality and safety of a SawStop saw wherever the job takes you.
  • Included: collapsible rolling cart, standard brake cartridge, 40-tooth 10 in. blade, miter gauge, JSS micro blade guard, riving knife, 2 blade wrenches, push stick, user's guide, assembly instructions poster, hardware pack, 3 mm hex key, 4 mm hex key and 5 mm. hex key
  • Quickly and precisely crosscut and rip lumber, siding, flooring to the size that best fits your needs
  • SawStop jobsite saw is the ideal choice for building on the work site. construct cabinets, cut siding and sheet goods, fit flooring to size, and more. remodel your house from room to room with SawStop
  • Uses a 110-volt plug that fits in any 110-volt grounded wall outlet
  • 25-1/2 in. maximum rip to the right of the blade, 13-3/8 in. table depth and 3-1/8 in. maximum depth of cut at 90 degrees allow you to cut a wide range of stock sizes
  • 1.5 HP 15 Amp motor provides maximum power for continuous operation
  • Saw Stop’s patented safety system stops the spinning blade on contact with skin, keeping your fingers safe and reducing the chance of catastrophic injury the micro blade guard with anti-kickback pawls reduces the likelihood of kickback
  • Tool-free insert, blade guard and riving knife make it quick and easy to swap out depending on the type of cut rigid steel mobile base with foot pedal release and balanced weight distribution makes folding and unfolding the saw quick and easy
  • An on-board storage compartment and fence holster conveniently stores saw accessories for quick and easy access
  • High quality heat treated steel, carbide tipped, precision balanced with expansion slots to help reduce vibration, noise and heat buildup for high quality cutting and ripping both hardwoods and softwoods
  • 1 Turn Elevation and Quicktilt features allow users to raise and lower the blade with just 1 turn of the hand wheel and quickly tilt the blade for bevel cuts saving valuable time
  • SawStop recommends a 3/32 in. blade for the most accurate and precise cuts
  • Maximum depth of cut 2-1/8 in. at 45° and 3-1/8 in. at 90° for a variety of straight and bevel cuts
  • Click here for more information on Electronic Recycling Programs
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Maximum Cut Depth @ 90 Deg.
3-1/8 in
Product Depth (in.)
28.75
Product Height (in.)
36
Product Width (in.)
46.50
Work Table Surface
in. x in.

Details

Amperage (amps)
15 A
Bench & Stationary Tool Type
Table Saw
Blade Diameter (in.)
10
Blade Location
Centered
Blade Speed
4000 RPM
Color Family
Black
Condition
New
Construction Material
Aluminum
Cord Length (ft.)
9.6
Corded Tool Type
Specialty Saw
Cordless/ Corded
Corded
Cuts Through
Wood
Depth Control
Adjustable
Horsepower (hp)
1.5
Included Accessories
Anti-Kickback Prawl,Blade Guard System,Rip Fence
Maximum Cut Depth @ 45 Deg.
2-1/8 in
Power Tool Features
Blade Guard System,Dust Collection
Product Weight (lb.)
108
PT Horsepower (Hp)
1-1/2
Returnable
90-Day
Rip Capacity - Left
9-3/4 in
Rip Capacity - Right
25-1/2 in
Table Tilt Left Max (degrees)
45
Table Tilt Right Max (degrees)
0
Tools Product Type
Power Tool

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
SawStop warrants to the original retail purchaser of a new jobsite saw from an authorized SawStop distributor that the saw will be free from defects in material and workmanship for ONE YEAR from the date of purchase.

Questions & Answers

7Questions11Answers

Are Diablo saw blades compatible with the Sawstop table?

Asked by RJM May 29, 2019
1
Answer

Any 10” standard-tooth steel blade with steel or carbide teeth can be used. Do not use blades with tooth “shoulders” (often called depth-limiting or anti-kickback shoulders), as these blades will take longer to stop in the event of an accident. Do not use blades with non-conductive hubs or teeth, as the safety system will not allow the saw to operate with these blades installed. Do not use blades that are over 10 1/16th inches in diameter or under 9 15/16th inches in diameter because the blade will be either too close or too far away from the brake. Even though a blade is labeled as 10 inches in diameter, it might actually be bigger or smaller, so be sure to check.

Would the stop mechanism activate if cutting wet material since moisture conducts electricity ?

Asked by SCCarpenter February 19, 2019
1
Answer

SawStop saws cut most wet wood without a problem. However, if the wood is very green or wet (for example, wet enough to spray a mist when cutting), or if the wood is both wet and pressure treated, then the wood may be sufficiently conductive to activate the brake. If you are unsure if the material you need to cut is conductive, you can make test cuts using Bypass Mode to determine if it will activate the safety system’s brake. The red light on the control box will flash to indicate conductivity.

What is the weight of this item?

Asked by tom February 8, 2019
3
Answers

This item is 108 pounds.

What kind of motor and drive does this have? Induction or universal? Belt or direct?

Asked by ed October 10, 2018
1
Answer

This is a universal motor and it is belt driven.

When the stop mechanism is activated , do I have to replace the blade or something else?

Asked by Castello July 13, 2018
2
Answers

Youll have to replace the brake cartridge and saw blade, better than trying to replace your fingers.

Why is Home Depot selling this at a price $100 higher than the manufacturers own price?

Asked by Ari June 19, 2018
2
Answers

The 1399$ includes the $100 shipping charge

What type saw blade comes with this saw?

Asked by Lady355 June 9, 2018
1
Answer

Included with this saw is a 40-tooth 10 in. blade.

Customer Reviews

  • 5
    out of 2 reviews
  • 100% recommend this product
Filter by:
Showing 1-2 of 2 reviews
5 Star Review
Rating provided by a verified purchaser
by HomeDepotCustomer
The SawStop Jobsite table saw is a true workhorse! I purchased this saw with the intent to do a ...
The SawStop Jobsite table saw is a true workhorse! I purchased this saw with the intent to do a "small" production project breaking down 8'x4' sheets of 3/4" Baltic Birch plywood. 6 months later I realized that I had broken down 150+ sheets, making close to 40,000 cuts on this saw with it NEVER skipping a beat. Ultimately this saw is great for so many reasons, portability, stability, unparalleled safety and ease of use. Highly recommend this saw!
