Internet # 203812757

Model # S 4768

31 in. x 54 in. x 21-1/2 in. Fixed Window Guard, Steel 4-Bar White, Non-Egress

$45.00
Apply Now
Pay $20.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Fixed 21-1/4 inch tall child safety window guard
  • Carbon-steel construction for durability and strength
  • Fits window openings 32-1/2 to 54 inches wide
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The Segal S 4768 Non-Egress Fixed Grids for Windows cannot be opened or quickly removed in case of emergency. For windows requiring emergency access capabilities, please use appropriate hinged version of these window grille inserts. Constructed of 0.048 inch thick white carbon steel square tubing, this window grid assists in preventing children from accidental falls through open windows. It features 3-7/8 inch bar spacing on center. The grates for windows feature a fully adjustable telescoping width (prior to mounting) from 32-1/2 inch to 54 inch, and it comes complete with one-way, tamper-proof installation screws. Designed for interior use only. This window security grate meets New York City and New Jersey’s housing codes, and it was approved by the New York City Department of Health and Mental Hygiene, HDWG #04-09-2010. Please refer to the line art drawing for dimensions and compare with your needs before purchasing.

Highlights

  • SECURITY GRATE – Constructed of 0.048 inch thick white carbon steel square tubing, this fixed window guard assists in preventing children from accidental falls through open windows; it features 3-7/8 inch bar spacing on center
  • NON-EGRESS WINDOW BARS – This non-egress fixed guard cannot be opened or quickly removed in case of emergency; for windows requiring emergency access capabilities, please use appropriate hinged version of these window guards

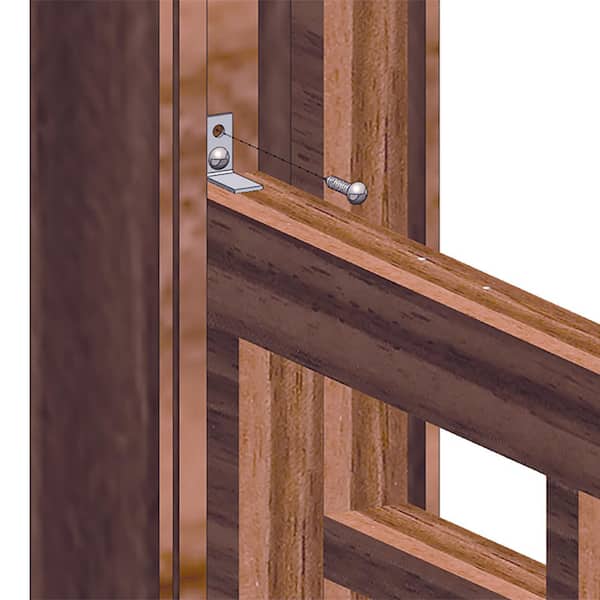

  • INSTALLATION – This window security bar features a fully adjustable telescoping width (prior to mounting) from 32-1/2 inch to 54 inch, and it comes complete with one-way, tamper-proof installation screws; designed for interior use only
  • MEETS BUILDING CODES – This window grille meets New York City and New Jersey’s housing codes, and it was approved by the New York City Department of Health and Mental Hygiene, HDWG #04-09-2010
  • NOTE – Please refer to the line art drawing for all dimensional information and compare with your needs before purchasing (Internal mounting Only)
  • Return Policy

Product Information

Internet # 203812757

Model # S 4768

Additional Resources

Shop All Segal

Specifications

Dimensions: H 21 in, W 54 in, D 0.75 in

Dimensions

Bar Spacing (in.)

3.875 in

Maximum Height (in.)

21 in

Maximum Width (in.)

54 in

Minimum Height (in.)

21 in

Minimum Width (in.)

31 in

Product Depth (in.)

0.75 in

Product Height (in.)

21 in

Product Width (in.)

54 in

Details

Accessory Type

Security Bars

Bar Type

Fixed

Color Family

White

Color/Finish

White

Features

No Additional Features

Guard Style

Horizontal

Hardware Color Family

White

Included

Hardware

Mounting Placement

Interior

Mounting Type

Rail

Product Weight (lb.)

8 lb

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Questions & Answers

4Questions
caret
Q:Can you connect these to make them longer?
by|Oct 24, 2023
1 Answer
Answer This Question

A:  Thank you for your inquiry regarding this item from Prime-Line Products. These are meant to only cover 1 window by itself. If you choose to connect 2 of these together to serve in the same capacity the warranty will be voided. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly connect to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at info@primeline.net

by|Oct 25, 2023
    caret
    Q:How large are the openings in the grid? I guess I?m asking if my Houdini cat would hang himself.
    by|Aug 23, 2023
    2 Answers
    Answer This Question

    A:  Thank you for your inquiry regarding this item from Prime-Line Products. The grid openings size is 3 3/4"H x 10 1/4"L.

    by|Aug 23, 2023

      A:  If your cat is anything like mine who can squeeze through anything… these grids are big enough for cat to pass but should not snag a collar. I am assuming a harness is the risk? (I liked this product and ended up using it as stopper between my window panes)

      by|Oct 25, 2023
        caret
        Q:Is this suitable for exterior use?
        by|Apr 7, 2023
        1 Answer
        Answer This Question

        A:  We did ours inside but I don’t see any reason you couldn’t do it outside.  You just need something to attach it to

        by|Apr 12, 2023
          1 found this answer helpful
          caret
          Q:do screws anchors cone with bars?
          by|Oct 14, 2017
          3 Answers
          Answer This Question

          A:  Thank you for your inquiry regarding this item from Prime-Line Products. There are no anchors, just screws that come with item. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly connect to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at prodtech@primeline.net.

          by|May 5, 2023

            A:  Yes

            by|Dec 10, 2019

              A:  Yes. Security screws came with the bars.

              by|Jan 10, 2021
              Showing 1-4 of 4

              Customer Reviews

              4.7 out of 5

              • 4.7 out of 19 reviews
              • 100% recommend this product
              Filter by:
              Showing 1-10 of 19 reviews
              I have an older arts and crafts house that has many windows in many configurations, so I had put ...
              I have an older arts and crafts house that has many windows in many configurations, so I had put off the installation of internal security bars because of the significant cost. These were extremely inexpensive so I took the plunge and was pleasantly surprised. The bars are well made, very rigid and provide a nice visual deterrent to potential burglars. Installation is easy. The egress type take a few more minutes but are also easy and do work well. You can modify these with reciprocating saw if you need to. To be clear these are not sold as security bars and the product info tells you that. So you can spend much, much more on heavier gauge bars. But the reality is any determined B and E artist with the correct tools and a little time can defeat whatever bars you install no matter how good. The point is to stack up enough security measures, bars, lighting, cameras etc., so that even a pro, decides to pass on your house.
              by
              • Verified Purchase
              • Recommended
              4 found this review helpful
              Excellent quality and finish. Unit can extend to 54 inch wide. This is the only company that make a window guard can do that. You can’t find this window guard in stock at Home Depot. You have to order on line and Home Depot will ship it to you from warehouse. I’m very satisfied with this window guard.
              by
              • Verified Purchase
              So far no one has broken in. I drilled the holes slightly larger so I could use a lag bolt. If someone wants to get in they will not do it quietly or quickly.
              by
              • Verified Purchase
              Installed on ground level workshop windows. The guard is well made, sturdy excellent paint finish . Very difficult to extend; requiring a mallet to enable the movable piece to slide out to desired size. Otherwise just what I needed. met expectations. Product came in well designed protective packaging and in undamaged condition.
              by
              • Verified Purchase
              by
              • Verified Purchase
              by
              • Verified Purchase
              No real issues installing it....
              No real issues installing it.
              by
              • Verified Purchase
              by
              • Verified Purchase
              by
              • Verified Purchase
              well made bars. I bought and installed the bars for...
              well made bars. I bought and installed the bars for a security deterrent on two garage windows.
              by
              • Verified Purchase
              Showing 1-10 of 19 reviews
