Internet #206133133

Model # UP248A5

Store SO SKU #1001395198

0697285605459

SharkBite

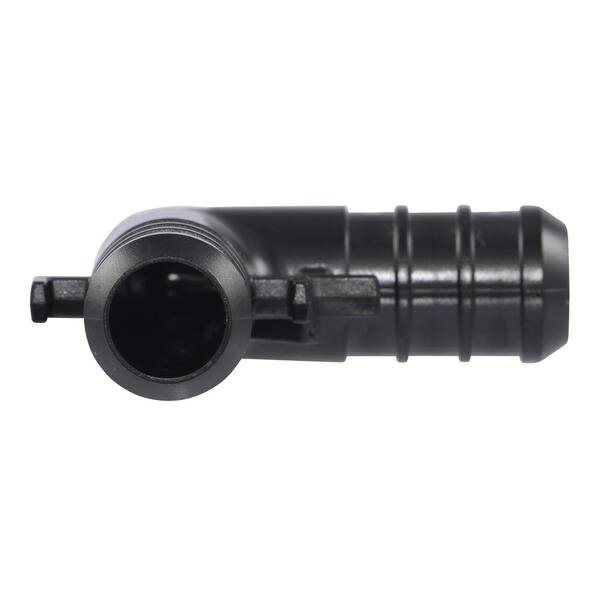

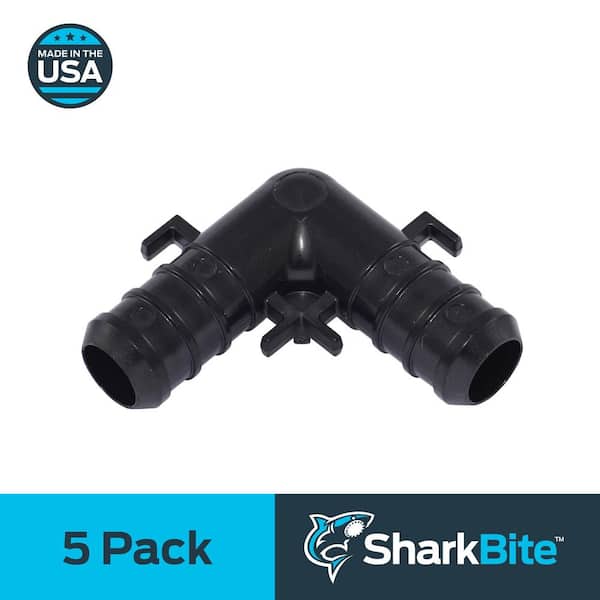

1/2 in. PEX Barb Plastic 90-Degree Elbow Fitting (5-Pack)

  • Compatible with PEX Pipe
  • Compatible with stainless steel clamp & Copper Crimp ring systems
  • Made of advanced polymer plastic
$ 4 27
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Compatible with PEX Pipe
  • Compatible with stainless steel clamp & Copper Crimp ring systems
  • Made of advanced polymer plastic
The SharkBite PEX Plastic Barb Elbow (5-Pack) is an easy to install, low cost solution to connect PEX pipe. Advanced Polymer Plastic fittings are a perfect solution for areas where corrosion may affect DZR Brass Fittings. SharkBite PEX Plastic Barb fittings are suited for potable water distribution and hydronic heating applications. These PEX fittings may be used with the stainless steel clamp system or the copper crimp ring system (both sold separately). The SharkBite PEX Barb fitting range offers a wide variety of Fittings, Manifolds, Valves, clamp rings, crimp rings and tools in various sizes to help complete your next plumbing project.
  • Plastic polysulfone construction
  • Lead free compliant and corrosion proof
  • Low-cost plumbing connection system
  • Barb x barb connection
  • Compatible with PEX pipe
  • Meets NSF 61, ASTM F 877 and CSA 137.5
  • Meets UPC, IPC and cUPC requirements
  • Fittings work with copper crimp ring or stainless steel clamp connection methods
  • Rated to 200°F and 200 psi
  • 5-piece pack

Product Overview

  • Compatible with PEX Pipe
  • Compatible with stainless steel clamp & Copper Crimp ring systems
  • Made of advanced polymer plastic
Model #: UP248A5
Internet #: 206133133

The SharkBite PEX Plastic Barb Elbow (5-Pack) is an easy to install, low cost solution to connect PEX pipe. Advanced Polymer Plastic fittings are a perfect solution for areas where corrosion may affect DZR Brass Fittings. SharkBite PEX Plastic Barb fittings are suited for potable water distribution and hydronic heating applications. These PEX fittings may be used with the stainless steel clamp system or the copper crimp ring system (both sold separately). The SharkBite PEX Barb fitting range offers a wide variety of Fittings, Manifolds, Valves, clamp rings, crimp rings and tools in various sizes to help complete your next plumbing project.

  • Plastic polysulfone construction
  • Lead free compliant and corrosion proof
  • Low-cost plumbing connection system
  • Barb x barb connection
  • Compatible with PEX pipe
  • Meets NSF 61, ASTM F 877 and CSA 137.5
  • Meets UPC, IPC and cUPC requirements
  • Fittings work with copper crimp ring or stainless steel clamp connection methods
  • Rated to 200°F and 200 psi
  • 5-piece pack

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand SharkBite SharkBite SharkBite SharkBite
Name 1/2 in. PEX Barb Plastic 90-Degree Elbow Fitting (5-Pack) 1/2 in. PEX Barb x MIP Brass Adapter Fitting (5-Pack) 1/2 in. PEX Barb x Female Copper Sweat Brass Adapter Fitting (10-Pack) 3/4 in. PEX Barb Brass 90-Degree Elbow Fitting (10-Pack)
Price
$4.27
$11.26
$15.26
$17.50
Ratings (17) (13) (18) (13)
View Product View Product View Product View Product

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Product Depth (in.)
1.40
Product Height (in.)
1.40
Product Length (in.)
1.40
Product Width (in.)
0.471

Details

Application
Potable Water
Compatible Pipe Material
PEX
Features
Underground Rated
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
PEX
Material
Plastic
Maximum working pressure (psi)
200
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.0110231lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Product Depth (in.)
1.40
Product Height (in.)
1.40
Product Length (in.)
1.40
Product Width (in.)
0.471

Details

Application
Potable Water
Compatible Pipe Material
PEX
Features
Underground Rated
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
PEX
Material
Plastic
Maximum working pressure (psi)
200
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.0110231lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242

Questions & Answers

Would this connector reduce my water flow to a shower or to my kitchen sink? the diameter seems much smaller

i'm running 1/2 pex
Asked by: wayne
reduce compared with? It is less volume than 1/2 inch copper, but for a shower or sink I do not think you will notice anything. If it were feeding multiple showers and sinks I would say move up to 3/4" to keep the volume available, pressure would be the same either way.
Answered by: JJ
Date published: 2018-09-21

Can I use it in the hot water system? What is the max temperature it works?

Can I use it in the hot water system? What is the max temperature it works?
Asked by: Liang
I'v had them installed on my hot water lines for a couple of years with no problems. They are rated up to 200 degrees.
Answered by: Thomas
Date published: 2019-01-13

What is the PEX-A pipe and fittings used for, and what are the differences between it and the re...

What is the PEX-A pipe and fittings used for, and what are the differences between it and the regular PEX system? Also, is it safe to use the crimp tools and bands with the plastic PEX fittings?
Asked by: Shoezel
Pex A (like Uponor Pex) is superior to Pex B. Pex A ring seals, using an expansion tool (I recommend the Dewalt or Milwaukee Pex expansion tools) for the Pex A pipe ends actually tighten over time and since they're made of non-metallic material can be buried. Pex A is also much more "bendable" than Pex B and not as stiff. However, it is more expensive than Pex B as well. These plastic fittings will work fine on Pex A or Pex B with metal rings and of course a crimp tool. (You CANNOT use the Pex A expansion ring fittings on Pex B). I used the stainless steal bands on my Pex B with these plastic fittings and they work fine, no leaks. Also, these plastic fittings and Sharbite's work fine on both Pex A and Pex B. The downside of these fittings to me is that they greatly reduce the inside diameter of your water line so I would use them only at or very near your fixtures to avoid downstream reduced flow issues.
Answered by: larrythelogger
Date published: 2018-12-13

Do you have this in 1"

Asked by: Handy
Yes we do. Model # UP260A5. Internet #206133164. Store SKU #1001404753. Store SO SKU #1001395217. If you have further questions, please call Customer Service M-F, 8am-5pm at (877) 700-4242.
Answered by: RWC Support
Date published: 2017-06-14
  • y_2019, m_6, d_25, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_, sid_206133133, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 197ms
  • QUESTIONS, PRODUCT

Customer Reviews

1/2 in. PEX Barb Plastic 90-Degree Elbow Fitting (5-Pack) is rated 4.5 out of 5 by 17.
Rated 5 out of 5 by from Exactly as expected and worked fine for our water level ring system. Exactly as expected and worked fine for our water level ring system.
Date published: 2019-04-23
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-05-01
Rated 5 out of 5 by from beat the high price of aquarium parts I find these plastic fittings are perfect for aquarium use, where you want no metal. These fit up nicely with the 12mm silicone tubing of my filters, and allow all sorts of useful configurations to be inexpensively assembled in combination with the standard filter fittings and 1/2" PEX tubing. Attached is a picture of one such invention. The inline Tee allows me to get double-duty from a single external filter - both drawing water directly through the side-mounted strainer, and through the 'under-gravel' plate. The tee in the picture is not actually a PEX part, but a hose fitting that I modified to fit. The PEX part would have fit with no modification if I had had one at the time. These fittings are solidly made and smoothly finished, and are rated for real plumbing use. It is a very hard sort of plastic that is designed for crimping, although I would still prefer brass for this sort of use.
Date published: 2015-11-24
Rated 5 out of 5 by from Got these connectors to use in running a new water line to an outside hose bib. I hadn't worked w... Got these connectors to use in running a new water line to an outside hose bib. I hadn't worked with PEX pipe before but given the location in a crawlspace it's characteristics (better freeze/burst protection, no need for glue, flexibility, etc.) it seemed to be a good choice. Working with the material was easy. I joined the PEX to the existing copper pipe by sweating on a tee to which I had already fused a PEX adapter. You could also use a snap-fit tee connector to accomplish this if you're not comfortable with soldering. The rest was simple. The PEX attaches easily to the adapter and these push-on elbows, secured with cinch clamps, make each connection fast and leak-free. I've done a lot of plumbing over the years, mostly copper and PVC, but I found PEX to be much easier and faster to work with. It will definitely be my choice for future projects.
Date published: 2018-12-11
Rated 3 out of 5 by from This fitting requires the bands and band crimping tool in order to work properly and not leak. If... This fitting requires the bands and band crimping tool in order to work properly and not leak. If you are using Pex A, the Pex A end expansion tool and special Pex A sealing rings will also work. I used a few of them in my barndominium remodel on Pex B and although they do not leak when properly crimped , they do greatly reduce the inside pipe diameter much more than the brass fittings. I recommend only using them well downstream of your main water supply so that your water flow rate is minimally effected. These are superior to metal fittings if corrosion is an issue with your water because these will never corrode.
Date published: 2018-12-13
Rated 5 out of 5 by from This, SharkBite 12 in. Plastic PEX 90-Degree Barb Elbow (5-Pack) came has promised. Seeing the c... This, SharkBite 12 in. Plastic PEX 90-Degree Barb Elbow (5-Pack) came has promised. Seeing the contents through the package, you can see the quality of product is very durable! I've used SharBite Products in the past and the availability of their product and durability has been second to none. I'm looking forward to installing these when the weather breaks. I have already sketched out the new irrigation lines and the amount of these 90-degree Barbs are exactly what I need to complete the product.
Date published: 2018-12-10
Rated 4 out of 5 by from The SharkBite PEX Plastic Barb Elbow (5-Pack) is the most economical choice for a small plumbing ... The SharkBite PEX Plastic Barb Elbow (5-Pack) is the most economical choice for a small plumbing job. It provides enough elbows without the worry that you will have to go back to the store because you are one short. One thing to note and that is the SharkBite brand supports their products they provide installation instructions on the package and you can visit SharkBite.com if you need more help. I also find the people at Home Depot are very knowledgeable and always there to answer questions.
Date published: 2018-12-03
Rated 4 out of 5 by from I just received this package in the mail. I plan to use the elbows in the spring for the drip sys... I just received this package in the mail. I plan to use the elbows in the spring for the drip system. I’m sure by then some of the elbows in the yard will need replacing. There are 5 per package and each has threaded ends for the hose attachment. I like this type of elbow because once the hose is attached, it is almost impossible to remove. This prevents the water pressure from disconnecting them. The black plastic will prevent corrosion and water damage.
Date published: 2018-12-09
