Internet #202032999

Model # U860O100

Store SO SKU #1000317788

0697285231009

SharkBite

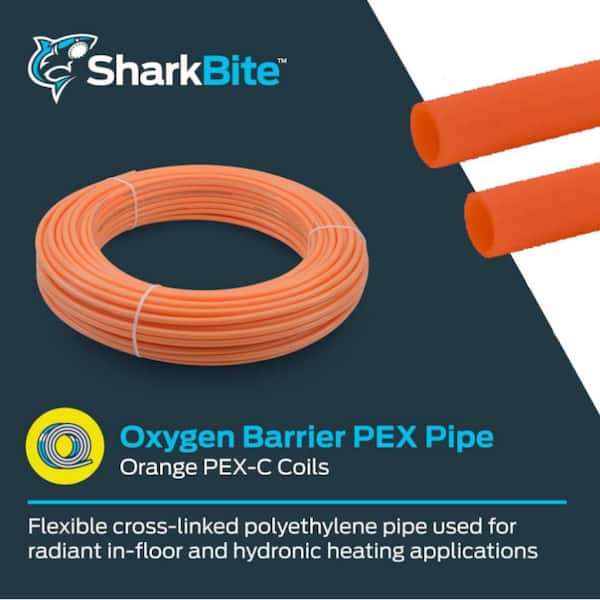

1/2 in. x 100 ft. Coil Oxygen Barrier Radiant Heating PEX Pipe

  • Can be installed wet for immediate pressure testing
  • Strong, Flexible, and Corrosion Resistant Pipe
  • Connectable with SharkBite Push to Connect or barbed fittings
$ 34 99
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Can be installed wet for immediate pressure testing
  • Strong, Flexible, and Corrosion Resistant Pipe
  • Connectable with SharkBite Push to Connect or barbed fittings
SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.
  • Strong, flexible, resilient pipe that provides superior temperature performance
  • Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
  • Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
  • Can be installed wet or dry for immediate pressure testing
  • SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
  • SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
  • Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5

Product Overview

  • Can be installed wet for immediate pressure testing
  • Strong, Flexible, and Corrosion Resistant Pipe
  • Connectable with SharkBite Push to Connect or barbed fittings
Model #: U860O100
Internet #: 202032999

SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.

  • Strong, flexible, resilient pipe that provides superior temperature performance
  • Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
  • Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
  • Can be installed wet or dry for immediate pressure testing
  • SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
  • SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
  • Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Can be installed wet for immediate pressure testing
  • Strong, Flexible, and Corrosion Resistant Pipe
  • Connectable with SharkBite Push to Connect or barbed fittings
SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.
  • Strong, flexible, resilient pipe that provides superior temperature performance
  • Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
  • Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
  • Can be installed wet or dry for immediate pressure testing
  • SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
  • SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
  • Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5

Product Overview

  • Can be installed wet for immediate pressure testing
  • Strong, Flexible, and Corrosion Resistant Pipe
  • Connectable with SharkBite Push to Connect or barbed fittings
Model #: U860O100
Internet #: 202032999

SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.

  • Strong, flexible, resilient pipe that provides superior temperature performance
  • Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
  • Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
  • Can be installed wet or dry for immediate pressure testing
  • SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
  • SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
  • Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand SharkBite SharkBite The Plumber's Choice The Plumber's Choice
Name 1/2 in. x 100 ft. Coil Oxygen Barrier Radiant Heating PEX Pipe 3/4 in. x 100 ft. Coil Oxygen Barrier Radiant Heating PEX Pipe 1/2 in. x 500 ft. PEX Tubing Oxygen Barrier Radiant Heating Pipe in Red PEX tubing Plumbing Kit - Crimper and Cutter Tools 1/2 in. x 100 ft. Tubing Elbow Cinch Half Clamp - 1 Red 1 Blue
Price
$34.99
$72.06
$158.98
$175.41
Ratings (28) (28) (0) (15)
View Product View Product View Product View Product

Specifications

Dimensions

Actual inside diameter (in.)
0.475
Actual outside diameter (in.)
.625
Nominal Inside Pipe Diameter (In.)
1/2"
Pipe Wall Thickness (In.)
.15
Product Length (ft.)
100 ft

Details

Application
Potable Water
Color Family
Orange
Color/Finish
Orange
Connectivity
Push Fit
Material
Cross-Linked Polyethylene (PEX)
Maximum Flow Rate (gallons per minute)
4.4
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
160
Minimum working temperature (F)
32
PEX Type
B
Pack Size
1
Pipe Features
Flexible
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
5lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Listed,IAPMO Certified
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-800-435-4654.

Specifications

Dimensions

Actual inside diameter (in.)
0.475
Actual outside diameter (in.)
.625
Nominal Inside Pipe Diameter (In.)
1/2"
Pipe Wall Thickness (In.)
.15
Product Length (ft.)
100 ft

Details

Application
Potable Water
Color Family
Orange
Color/Finish
Orange
Connectivity
Push Fit
Material
Cross-Linked Polyethylene (PEX)
Maximum Flow Rate (gallons per minute)
4.4
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
160
Minimum working temperature (F)
32
PEX Type
B
Pack Size
1
Pipe Features
Flexible
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
5lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Listed,IAPMO Certified
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-800-435-4654.

Questions & Answers

What is the difference between the Orange PEX at $168.50 and the Blue PEX at $129.00?

We need this for a boiler to run water 300' underground at about 120 degrees F. to a radiant heated floor in an outbuilding. It will be installed in a conduit (2" Sched 40 PVC) with an electric power supply at 24" depth.
Asked by: AndEnergy
for the record this is PEX-B not PEX-A color does not indicate type. they are very different and use different connectors. PEX-A uses expansion tool and fitting and will not work with crimp rings.
Answered by: PlumbingAssociate
Date published: 2018-12-20

What connector can I use to hook this up to 3/4 black pipe

Asked by: Tone
You would need to use a SharkBite female threaded adapter. Then you can install PEX pipe into the push to connect side of the fitting. If you have further questions, please contact Customer Service M-F, 8am-5pm at (877) 700-4242.
Answered by: RWC Support
Date published: 2018-01-09

can this product be used in potable applications

can this product be used in potable applications
Asked by: Cee
Yes, all SharkBite products are only certified for potable water installations.If you have further questions, please contact customer service M-F, 8am-5pm at (877) 700-4242.
Answered by: RWC Support
Date published: 2017-10-01

what is the delivery charge for orders more then $300.00

what is the delivery charge for orders more then $300.00
Asked by: paleface
Best thing call your local prodesk..they can also tell you next delivery day available and packing details...some things get so damaged or stolen from driveway not worth it.
Answered by: Unevensteven
Date published: 2017-11-17
  • y_2019, m_9, d_17, h_15CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_44
  • loc_, sid_202032999, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 75ms
  • QUESTIONS, PRODUCT

Customer Reviews

1/2 in. x 100 ft. Coil Oxygen Barrier Radiant Heating PEX Pipe is rated 4.6 out of 5 by 28.
Rated 4 out of 5 by from Using this product a little bit out of its scope, using it for solar heating on my roof tied into... Using this product a little bit out of its scope, using it for solar heating on my roof tied into the pool. Painted it black to attract heat and to protect from UV. It hooked up well I'm using 300 feet / 4 x 4 cell.. and covered it with corrugated plastic. My cell get up to a hundred and forty degrees which is under the temperature rating of the shark bite piping. Keeping my fingers crossed
Date published: 2019-07-30
Rated 5 out of 5 by from It arrived promptly. I installed it for Hydronic heating in a cement slab floor. It seems strong ... It arrived promptly. I installed it for Hydronic heating in a cement slab floor. It seems strong and flexible.
Date published: 2019-08-20
Rated 5 out of 5 by from Just what I needed at a great price I needed this to repair a radiator hookup in an older home. I had a hard time finding the 3/4" pex with oxygen barrier in any plumbing/heating supply store and ultimately tried Home Depot on line. I had it delivered to my home in about 4 days. Next time I'll try Home Depot first!
Date published: 2012-01-11
Rated 4 out of 5 by from Good product / easy to use. Used this product to make connections in existing hydronic heating system for additional baseboard heat. Used the clamp connections and some shark bite connections. You need the clamping tools for this. Can cut with a regular twist and spin pipe cutter but don't dig in too hard. Keep it warm as the colder it gets the hard it is to manipulate. Doesn't make 90 degree turns tightly, you need a good 12" -16" to make a 90. Just buy the 90 degree fittings if you don't have the space.
Date published: 2014-12-11
Rated 5 out of 5 by from Good product, easy to install Pex is a great product. Be aware that the pex clamps and tools are proprietary. Home depot has Apollo clamps and tools, which work very well.
Date published: 2013-08-21
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-05-23
Rated 4 out of 5 by from Excellent but beware Thie is some high quality PEX for heating application - but it is VERY STIFF - I had to use a blow dryer to get it to flex especially at 90 degree bends. Used with shark bite fitting to reroute a pipe the was running through my garage. So far working well. If you need PEX that's easy to bend try PEX-AL_PEX but I'm not sure where to get it.
Date published: 2015-03-01
Rated 5 out of 5 by from great product We bought this product to install hydronic heating in the floor of our new basement. Product exceeded our expectations, was easy to use, would definitely recommend to others and would purchase product again.
Date published: 2015-05-20
