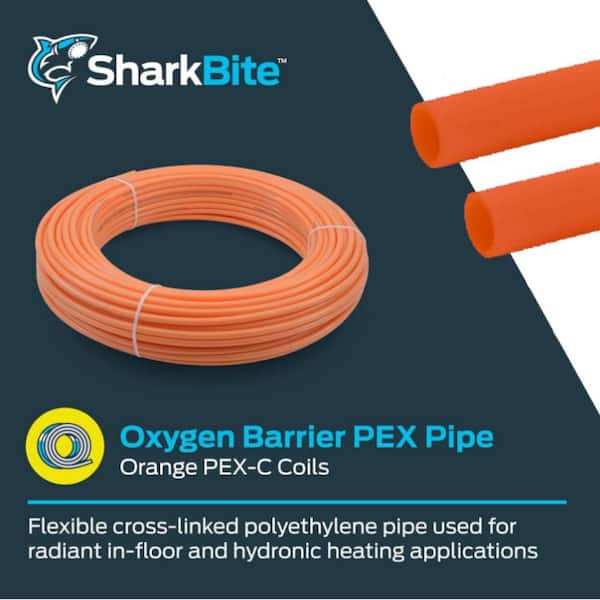

1/2 in. x 300 ft. Coil Oxygen Barrier Radiant Heating PEX Pipe

  • Can be installed wet for immediate pressure testing
  • Strong, Flexible, and Corrosion Resistant Pipe
  • Connectable with SharkBite Push to Connect or barbed fittings
  • See More Details
Includes 300 ft. (37¢ /ft.)
$110.58

Product Overview

Mix of the versitile Pex and PTC Assortment

Versatile Applications

Compatible with multiple fitting systems including, SharkBite EvoPEX, SharkBite Push-to-Connect, plastic barb, and brass barb fittings.

Installing PEX Pipe behind a wall with PTC fittings

Time Saving Installation

Faster installation time compared to rigid pipe

Image showing PEX Pipe under concrete

Approved for Underground

Approved for water service lines and burial applications, including being buried under concrete.

Man installing PEX Pipe that is showing the flexiblilty

Flexible

PEX Pipe has the ability to bend around corners, which removes the need for elbow fittings in tight spaces.

Men installing PEX Pipe behind a wall

Versatile

PEX can be installed under wet or dry conditions

PEX Pipe being coiled in a plant

Versatile Length Availability

PEX Pipe is available in cold up to 1,000 ft. in length, allowing longer runs and fewer connections -- reducing cost, time, and potential leak points.

Man carrying pipe

Cost Effective

PEX Pipe costs a third of the price of Copper Pipe.

SharkBite Logo

Proven and Dependable

Brought to you by SharkBite, the leading brand in innovation.

Chlorine Molecule Icon

Chlorine Resistant

Offers the highest-rated chlorine resistance and six-month UV resistance

PEX Corrosion resistant

Corrosion resistant

Immune to mineral build up

Pipe Frozen Icon

Freeze Resistant

Pipe expands and contracts as water freezes and thaws within pipe. Ideal for hot and cold potable water distribution and municipal water service lines.

Check Mark Icon

Approved

Approved for residential and commercial applications

Made in the USA Icon

Made in the USA

Proudly Manufactured in the USA

SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.
  • Strong, flexible, resilient pipe that provides superior temperature performance
  • Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
  • Flexibility reduces number of fittings needed to complete a job; reducing cost and leak points
  • Can be installed wet or dry for immediate pressure testing
  • SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings
  • SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
  • Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5
  • Shop all SharkBite Fittings

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual inside diameter (in.)
0.475
Actual outside diameter (in.)
.625
Nominal Inside Pipe Diameter (In.)
1/2"
Pipe Wall Thickness (In.)
.150
Product Length (ft.)
300 ft

Details

Application
Potable Water
Color Family
Orange
Color/Finish
Orange
Connectivity
Push Fit
Material
Cross-Linked Polyethylene (PEX)
Maximum Flow Rate (gallons per minute)
4.4
Maximum working pressure (psi)
160
Maximum Working Temperature (F)
200
Minimum working temperature (F)
32
Pack Size
1
PEX Type
B
Pipe Features
Flexible
Pipe or Fitting Product Type
Pipe & Tubing
Product Weight (lb.)
17
Returnable
180-Day

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Listed,IAPMO Certified
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

52Questions10Answers

I'm thinking about building a DIY solar water heater using this coil oxygen barrier pex pipe cove...

Asked by Adam July 5, 2020
1
Answer

Hello, If your system has ferrous metal components we would recommend the use of SharkBite oxygen barrier PEX tubing to keep oxygen permeation to a minimum. If your system does not contain ferrous metal components standard SharkBite PEX tubing (red, white or blue in color) may be used. Please note that we do not recommend painting our PEX tubing. Please also note that the tubing will need to be protected from UV and the maximum temperature for SharkBite PEX tubing is 200°F at 80 psi. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Warranty

Asked by Jr June 12, 2020
1
Answer

Hello, SharkBite PEX tubing has a 25 year warranty when installed according to our installation instructions. For full warranty information please see the link below. If you have any questions please feel free to contact our customer service department at 877-700-4242. https://www.sharkbite.com/warranty Best Regards,

The download SharkBite Specification HD002 say the Oxygen Barrier Radiant Heating PEX Pipe is PEX...

Asked by JimS April 23, 2020
1
Answer

Hello, SharkBite oxygen barrier PEX tubing is PEX type C. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

What is the minimum bend radius for 1/2 in. Coil Oxygen Barrier Radiant Heating PEX Pipe

Asked by JimS April 16, 2020
1
Answer

Hello, SharkBite 1/2" oxygen barrier PEX tubing has a minimum bend radius of 5". If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Can this product be used outside, and exposed to sun like pex-al-pex?

Asked by jg April 14, 2020
1
Answer

Hello, No, SharkBite oxygen barrier PEX tubing does not have any UV resistance and should not be exposed to direct sunlight. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Is this product rated for outdoor use?

Asked by Elvis March 26, 2020
2
Answers

I would advise using it inside use only. Outside products used need to be uv stable and must be able to be frozen without being compromised in cold climates. I would not use this product outside. It is made and works well for its intended purpose. Have used it for 3 seasons inside as designed and worked well for me.

What is the difference between the red pex with oxygen barrier and the orange sharkbite with oxygen barrier?

Asked by NeedToKnow January 5, 2020
0
Answers

Is this product approved for underground to out-building?

Asked by ron April 2, 2019
1
Answer

Yes, SharkBite PEX pipe is approved to AWWA C904 which covers PEX pipe in regards to burial. Be sure to check with local, city or state codes to see if the pipe needs to have sleeves or any type of protective burial for your area. PEX pipe can be used as a service line based on its corrosion resistance to soil and water, its long life, and its oxidative resistance. If you have further questions, please contact Customer Service M-F, 8am-5pm at (877) 700-4242.

What is the rate of thermal expansion for this pipe? Especially as compared to copper tubing whic...

Asked by Edward October 16, 2018
1
Answer

Please contact Customer Service M-F, 8am-5pm at (877) 700-4242, so we can better understand and answer your question.

What is the pressure drop? Where can I find a pressure drop vs. flow table (for water flow)

Asked by Leonard August 31, 2018
1
Answer

Please contact Customer Service M-F, 8am-5pm at (877) 700-4242. Need more information about the question you are asking.
