Model # U3086FLEX24LF

Internet #203800359

Store SKU #1000006063

Store SO SKU #732682

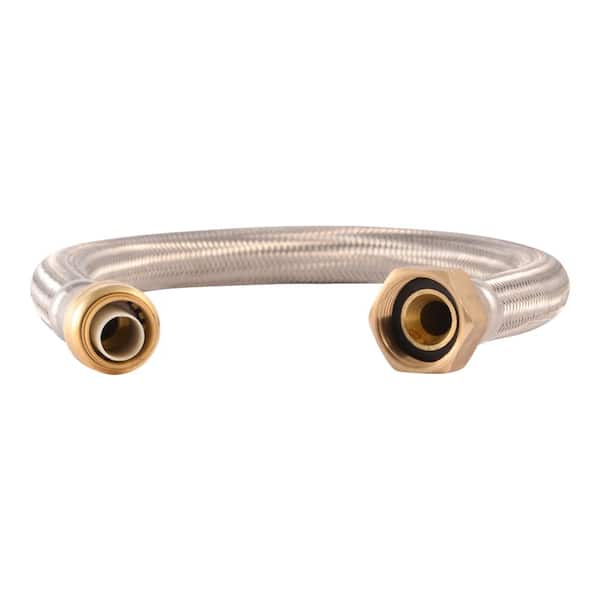

SharkBite 3/4 in. Push-to-Connect x 1 in. FIP x 24 in. Braided Stainless Steel Water Softener Connector
0697285998278

SharkBite

3/4 in. Push-to-Connect x 1 in. FIP x 24 in. Braided Stainless Steel Water Softener Connector

  • Connects your water supply lines to your water softener unit
  • Works on copper, PEX or CPVC pipes
  • Made from braided stainless steel for lasting and reliable use
$1797 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Connects your water supply lines to your water softener unit
  • Works on copper, PEX or CPVC pipes
  • Made from braided stainless steel for lasting and reliable use
The 3/4 in. SharkBite x 1 in. FIP x 24 in. SharkBite Water Softener Connector allows you to easily connect your Water Supply lines to your Water Softener Unit. After applying pipe thread tape to the MIP nipples on your water Softener, thread the FIP end of the Water Softener connector onto the tank and tighten with channel locks. Then simply push the SharkBite Push-Fit end onto Copper, PEX or CPVC pipes and your Water Softener is connected. The braided stainless steel connector is also available in Corrugated Stainless Steel. SharkBite Water Softener Connectors will decrease the amount of time and effort needed to install a Water Softener in your home and are the fastest way to complete your project.
  • Lead free DZR brass fittings, braided stainless steel hose
  • Use to connect water softener to any combination of copper, PEX or CPVC pipe
  • Innovative push-fit design makes for quick and easy installation
  • Push-fit connections require no solder, glue or unions
  • Decreases the amount of time and effort needed to connect water heater to pipe
  • Demount clip allows user to release the pipe from the fitting if mistake is made (sold separately)
  • Corrosion resistant to improve longevity
  • Design certified and listed to ASSE 1061 and NSF/ANSI 372-2010 and NSF/ANSI 65
  • Meets IAPMO, UPC, IPC and cUPC requirements

Product Overview

  • Connects your water supply lines to your water softener unit
  • Works on copper, PEX or CPVC pipes
  • Made from braided stainless steel for lasting and reliable use
Model #: U3086FLEX24LF
Sku #: 1000006063
Internet #: 203800359

The 3/4 in. SharkBite x 1 in. FIP x 24 in. SharkBite Water Softener Connector allows you to easily connect your Water Supply lines to your Water Softener Unit. After applying pipe thread tape to the MIP nipples on your water Softener, thread the FIP end of the Water Softener connector onto the tank and tighten with channel locks. Then simply push the SharkBite Push-Fit end onto Copper, PEX or CPVC pipes and your Water Softener is connected. The braided stainless steel connector is also available in Corrugated Stainless Steel. SharkBite Water Softener Connectors will decrease the amount of time and effort needed to install a Water Softener in your home and are the fastest way to complete your project.

California residents: see   Proposition 65 information

  • Lead free DZR brass fittings, braided stainless steel hose
  • Use to connect water softener to any combination of copper, PEX or CPVC pipe
  • Innovative push-fit design makes for quick and easy installation
  • Push-fit connections require no solder, glue or unions
  • Decreases the amount of time and effort needed to connect water heater to pipe
  • Demount clip allows user to release the pipe from the fitting if mistake is made (sold separately)
  • Corrosion resistant to improve longevity
  • Design certified and listed to ASSE 1061 and NSF/ANSI 372-2010 and NSF/ANSI 65
  • Meets IAPMO, UPC, IPC and cUPC requirements

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
1.6
Product Height (in.)
24.25
Product Width (in.)
1.6

Details

Finish Family
Silver Metallic
Material
Stainless Steel - DZR Brass
Product Type
Supply Line Softener
Product Weight (lb.)
0.815lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242

Specifications

Dimensions

Product Depth (in.)
1.6
Product Height (in.)
24.25
Product Width (in.)
1.6

Details

Finish Family
Silver Metallic
Material
Stainless Steel - DZR Brass
Product Type
Supply Line Softener
Product Weight (lb.)
0.815lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242

Questions & Answers

Do i need to put teflon tape on the 1" FIP side commections? Or is OK just to tighten down the connections to the bypass valve?

The FIP side of the flexible hose has a rubber gasket. Will that ensure a solid and dry connection?
Asked by: JP
The seal is formed only by the oring. Putting teflon on the threads is useless.
Answered by: Dick
Date published: 2017-01-30

can you install push on end onto copper pipe?

Asked by: Ldwelch
Yes
Answered by: Cade
Date published: 2017-03-23

Slightly too short

We needed a hose a little longer than 2 ft to connect our water softener. What is the easiest solution to make it reach?
Asked by: Pcsn0122
you will need to extend your service line.
Answered by: lukeatmiller
Date published: 2017-01-11

What is the ;minimum radius bend that can be made?

What is the ;minimum radius bend that can be made?
Asked by: Dick
OK bought the connectors so I can answer my own question. The minimum radius bend is about 3 inches; think of being able to wrap it around a 6 inch diameter cylinder.
Answered by: Dick
Date published: 2017-01-30
  • y_2017, m_12, d_11, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_13
  • loc_, sid_203800359, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 95ms
  • QUESTIONS, PRODUCT

Customer Reviews

3/4 in. Push-to-Connect x 1 in. FIP x 24 in. Braided Stainless Steel Water Softener Connector is rated 4.8 out of 5 by 96.
Rated 5 out of 5 by from Made for a fast and easy install. It's not always... Made for a fast and easy install. It's not always worth the money, but the money spent here eliminated a headache, allows for the softener to slightly move when needed and it also does the next guy a favor upon installing a unit. Bravo.
Date published: 2017-10-24
Rated 5 out of 5 by from this product works great when new. tried to remove some older shark fittings and could not break ... this product works great when new. tried to remove some older shark fittings and could not break them loose. able to slide the ring ahead, but would not release
Date published: 2017-11-01
Rated 5 out of 5 by from I had leaky O-rings at my water softener by-pass valve.... I had leaky O-rings at my water softener by-pass valve. I change water supply lines from rigid to flexible with these hoses. I flipped the by-pass valve over to connect the hoses on top. Over many years the softener settles creating a misalignment at the by pass-valve.
Date published: 2017-07-04
Rated 5 out of 5 by from This product has now been installed for over a month and works just fine. I did clean the copper... This product has now been installed for over a month and works just fine. I did clean the copper pipe to a nice shine before installing the push-to-connect fitting. (nice shine meaning same as if sweat soldering)
Date published: 2017-10-03
Rated 5 out of 5 by from Not inexpensive, but way easier and faster that sweating copper. Still need skill and experience... Not inexpensive, but way easier and faster that sweating copper. Still need skill and experience to prepare the pipe for the connection. Check back in 50 years to see how it held up.
Date published: 2017-07-18
Rated 1 out of 5 by from It was recommended for our new water softener. The plumber... It was recommended for our new water softener. The plumber that we used to install the water softener could not use it. It would not give a solid, leak proof connection to our pipes.
Date published: 2017-09-06
Rated 5 out of 5 by from Using these shark bite connections for the water softener made the install so easy! At first, I ... Using these shark bite connections for the water softener made the install so easy! At first, I was a little skeptical, but they work flawlessly. Highly recommended.
Date published: 2017-08-08
Rated 5 out of 5 by from Had never used these until I saw them when researching... Had never used these until I saw them when researching my water softener replacement. These worked great. I will definitely keep them in mind for future projects.
Date published: 2017-10-10
