Max 1/2 in. Push-to-Connect x 3/4 in. FIP x 12 in. Braided Stainless Steel Water Heater Connector
- Fastest way to connect PEX, copper, CPVC, or PE-RT pipe
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
SharkBite Max flexible water heater connectors are the fastest and easiest way to connect your water heater to existing pipes in your home. A newly designed stainless steel collet retainer delivers additional strength and durability and provides a 200 psi pressure rating. SharkBite Max connectors do not require a PEX tube liner, and a re-engineered body allows you to insert the pipe using less force and greater ease. No soldering, clamps, unions, glue, or special tools required. After inserting to pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The flexible stainless steel braided hose reduces the need for extra joints or fittings, allowing for faster installs. Available in additional lengths (12 in. to 24 in.) and with integrated ball valve shut off.
Highlights
- Compatible with PEX, copper, CPVC PE-RT, or HDPE pipe
- Approved for electric and gas water heaters with flue vent
- Requires no special tools to install on hot or cold-water lines
- Can be installed on wet or dry lines pressure tested immediately
- Rotatable after installation and removable
- PEX tube liner not required
- Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
- Low-lead DZR corrosion-resistant brass body
- Rated to 140°F and 200 psi
- Code approved, IAPMO Listed for details, see specification
- 25-year warranty when used with PEX, copper, CPVC and PE-RT pipe, see warranty
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 1.29 in, W 1.29 in, L 12 in
Dimensions
Product Height (in.) | 1.29 in |
|---|---|
Product Length (in.) | 12 in |
Product Width (in.) | 1.29 in |
Details
Finish Family | Silver Metallic |
|---|---|
Material | Stainless Steel |
Pack Size | 1 |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Must be installed per installation instructions. |
|---|
Questions & Answers
Can the SharkBite connector be removed if need be or does the pipe have to be cut and a new conne...
can be removed without cutting water line
No, easily removed from your existing piping, but does require an inexpensive horseshoe shaped tool to release the 'teeth'
Yes. They are very easy to remove. Check out the various websites that show how to do it, which is a matter of pressing on a certain area of the connector.
Yes, SharkBite push to connect fittings are removable using either our disconnect clip or disconnect tongs. If you need further assistance, please contact Customer Service M-F, 8am-5pm at (877) 700-4242.

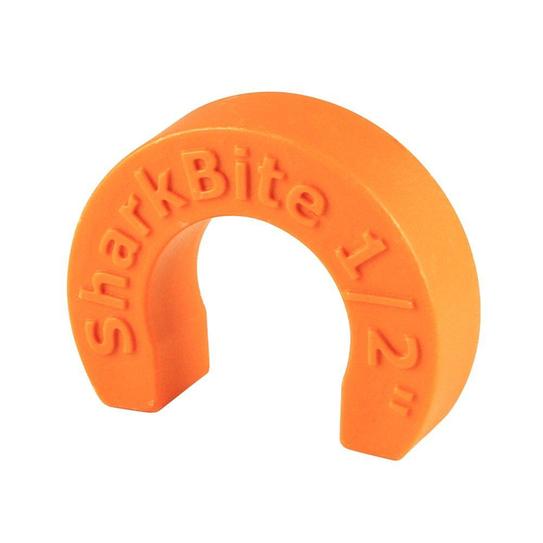

Yes, they can be removed but not very easily. Do your due diligence and be certain before installing. You can use a "Disconnect Clip" to remove the SharkBite. Image and description are attached below. SharkBite is great. I wish they had a SharkBite for everything.
What is the max operating water temperature of the lines?
SharkBite fittings are certified to 200 PSI and 200°F (93°C). If you have further questions, please contact Customer Service M-F, 8am-5pm at (877) 700-4242.
call the manufacturer...and also test your water ph
Is this okay for outdoor use? My tankless heater is in a weather sealed box, but this braided ste...
These lines are "stainless steel" no worries.
Stainless braid should be OK, brass coupling might corrode in weather.
Yes it is. If you have further questions, please contact our Customer Service M-F, 8am-5pm at (877) 700-4242.
call the manufacturer
Can I connect this to a Rheem tankless water heater? I have the 13kW model. The manual says, "Com...
Identical, just do it.
That is a question for Rheem. You would need to contact their customer service.
call Rheem
Concerned about the rubber disintegrating
If the water quality is poor in your area it can cause any rubber to corrode, we manufacture with the highest quality EPDM Rubbers, but if water quality is a concern in your area we offer a Stainless Steel Corrugated version in-store and online of the same hose that has no liner and may work better for your application.
Contact manufacturer. IIi've used several and not seen problem over 5 years.
like you said it depends on your water
NO
Will this 1/2 in x 12 in stainless steel push fit x FIP flexable connect my 5/8"OD copper tubing to the male 1/2"NPT end on my tankless water heater?
fits 3/4" NPT male. You need 11/2' tubing to 3/4" NPT
No
Yes this is the correct part for your application. This is a 1/2" x 1/2" connector. It contains a 1/2" SharkBite connection and a 1/2" FIP connector that will screw onto 5/8" OD copper.
What sizes are the ends...1/2 to 3/4 ?
1/2" indicates the push to fit side, Push it on very snugly to the clean copper line. 3/4" indicates the threading on top of the tank. Again connect very snugly. Remember, push to fit connect side first!
This hose, model U3068FLEX12LF, has a 1/2" SharkBite connection by a 3/4" female threaded connection.
you can probably get one to fit your application
This is 1/2" and 3/4" - it's available in several lengths and sizes.
YES, 3/4" GOES TO TOP OF HOT WATER TANK + 1/2" GOES TO HOT SIDE OF WATER TO HOUSE
How does this connect to the 1/2" water line without having to solder?
It's a slip fit. Just push the tubing into the fitting. Be aware though, that a 1/2" SharkBite fitting requires 5/8" tubing.
It works great easy fit
Yes. cut tubing, clean end, push on, can even rotate after assembly.
This specific flex hose is designed to connect a 1/2" male adapter to a 1/2" copper, PEX, or CPVC pipe. The female side can be threaded on to the male adapter and the SharkBite side can be pushed on just like any of our other fittings. If you are unfamiliar with how to install SharkBite fittings, please review the installation video attached. Please keep in mind that flex hoses are not designed to be placed behind walls or underground.
Yes
