ABW ZMAX Galvanized Adjustable Standoff Post Base for 6x6 Nominal Lumber

$39.49
Buy 20 or more $35.54
Apply Now
Pay $14.49 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Global leader in structural construction products since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line trusted by Pros and DIYers alike
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Global leader in structural construction products since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line trusted by Pros and DIYers alike
About This Product

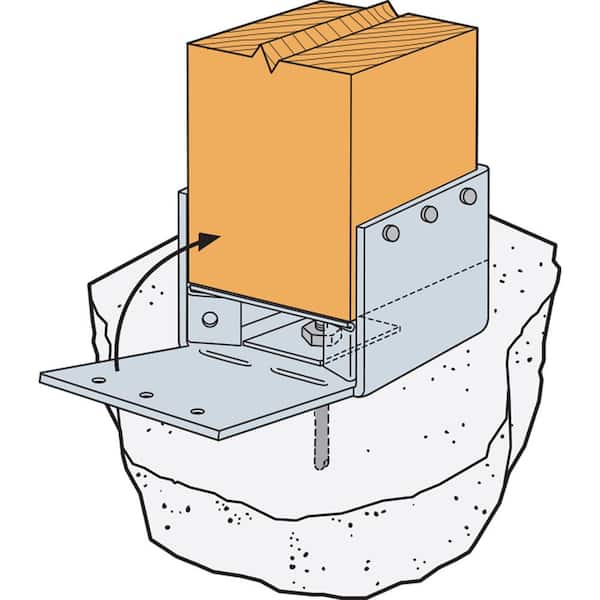

Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The AB series also offers adjustability around the anchor bolt to achieve optimum post placement. Many models provide a 1-in standoff from the concrete to help avoid post-end rot from moisture.

  • Attaches a post to existing concrete for decks, patio covers and other top-supported structures
  • Features 1-in standoff to help prevent rot at post end
  • Slotted for adjustability
  • Designed for versatility, cost-effectiveness and maximum uplift performance
  • Nominal post size: 6x6
  • Steel gauge: base 12, strap 14
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.
  • Return Policy
Product ID #: 203522855Internet #: 707392549604Model #: ABW66Z
caret

Specifications

Dimensions: H 3 in, W 5.5 in, D 5.56 in

Dimensions

Nominal Post Size (in.)6x6Product Depth (in.)5.56 in
Product Height (in.)3 inProduct Width (in.)5.5 in

Details

Base TypeStandoff Post BaseConnector FinishG185 Galvanized
Fasteners IncludedFasteners Not IncludedFeaturesNo Additional Features
Gauge12MaterialSteel
Material Connector CompatibilityWood to ConcreteNumber of Pieces1
Package Quantity1Product Weight (lb.)3.75 lb
Returnable90-Day

Warranty / Certifications

Manufacturer WarrantyLimited Warranty
caret

Questions & Answers

24Questions
caret
Q:Are bolts and washers and screws included or do I have to purchase them separately?
by|Jan 23, 2024
1 Answer
Answer This Question

A:  Hi Norm, Thank you for your question. The ABW is not supplied with bolts or screws, the washer is supplied with the part though. The screws should be the Strong-Drive® SD CONNECTOR Screw, specifically part number SD9112. Screws not manufactured by Simpson Strong-Tie are not supported in our products. If you have more questions, please contact our Customer Service team at 800-999-5099

by|Jan 23, 2024
    caret
    Q:What is the recommended length of anchor for this base?
    by|Dec 4, 2023
    1 Answer
    Answer This Question

    A:  ​Hi Dan, thank you for your message. This is Ricardo with Simpson Strong-Tie. We provide the diameter of the anchor, which in this case is 1/2", but the length is determined by the designer of record. We do offer a technical bulletin with Titen HD options that are for wind or low seismic design. For high seismic design you will need to have the designer of record callout the anchor type and length. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you. https://ssttoolbox.widen.net/view/pdf/0smhqae1q1/TEB-PSTB23.pdf?t.download=true&u=cjmyin

    by|Dec 4, 2023
      caret
      Q:What size nails do you use to secure this item to a 4x4 post and do you need to use all of the holes or just one on each side?
      by|Oct 23, 2023
      1 Answer
      Answer This Question

      A:  Hello Scottsman, my name is Colin with Simpson Strong-Tie. The ABW44Z Adjustable and Standoff Post Base requires eight 0.148" x 3" (10d) nails, typically hot dip galvanized for exterior use, 2 on each of the four sides. You could also use the Strong Drive #9 x 1-1/2" (SD9112) screws and achieve the same allowable load values. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​

      by|Oct 24, 2023
        caret
        Q:Is this the correct bracket to mount a post to concrete for a small room addition?
        by|May 15, 2023
        1 Answer
        Answer This Question

        A:  Hi Gregg, thank you for your message. We want to make sure we address your question regarding ABW Adjustable Post Base. The choice of which post base to use for your addition has a few factors at play you will need to answer. The demand loads on the base in download and uplift as well as any lateral load are the main factors. We would be happy to discuss this with you and answer additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you. -Stacy

        by|May 16, 2023
          Showing 1-4 of 24
          caret

          Customer Reviews

          4.7 out of 5
          • 4.7 out of 50 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-10 of 50 reviews
          Works great and provides a solid base for your posts. I used this for my main structural support...
          Works great and provides a solid base for your posts. I used this for my main structural support of my 22'X14' deck. produced a very sturdy structure.
          by
          • Verified Purchase
          • Recommended
          1 found this review helpful
          by
          • Verified Purchase
          The store is run down, dirty, disorganized and primarily unhelpful and often rude staff members. Check out is slow and even the parking lot is littered with garbage and debris. Honestly one the worst branches in the DMV
          by
          Response from Simpson Strong-TieSep 21, 2023
          Hi Jack, this McKenzie from Simpson Strongtie. We apologize we cannot address that issue. Please contact The Home Dep​ot Customer Service at 800-466-3337 for further assistance.

          Thanks. SimpsonStrongTie
            Nice finish
            Easy installation, nice finish, overall good quality. However, adjustment of the post is very limited, if you are not able to also rotate the post after it is installed in the bracket.
