Internet #204842278

Model #CB66PC

CB Black Powder-Coated Column Base for 6x6 Nominal Lumber

  • Provides high structural values and rugged performance
  • Mounts the post flush with the top of the concrete
  • Black powder-coat finish for a more decorative look
  • See More Details
$4858

Frequently Bought Together

+
+
Price:
$4858

Product Overview

The Decorative Hardware line consists of aesthetically pleasing, pre-finished connectors and innovative concealed joist ties designed for exposed wood applications. These connectors provide structural performance and add a unique appearance feature to a project. Pre-engineered and tested, these load rated products are verified to perform to design loads, unlike custom designed and fabricated connectors. The CB column base is made for columns and posts that require high structural values and rugged performance.
  • Designed to mount the post flush with the top of the concrete
  • Helps reduce uplift loads on posts or columns
  • Diamond holes are included to provide for temporary fastening
  • Column size: 6 in. x 6 in.
  • Made from 7-gauge steel
  • Black powder-coat finish for a decorative look

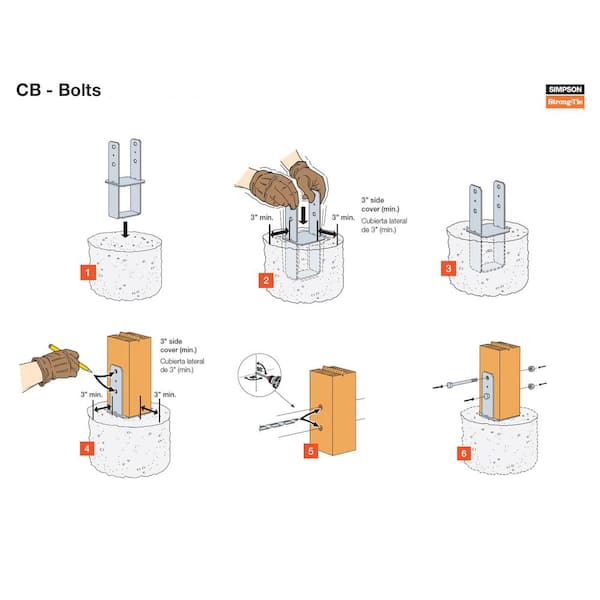

  • Install with 5/8 in. diameter machine bolts
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Nominal Post Size (in.)
6x6
Product Depth (in.)
6.4375
Product Height (in.)
16.75
Product Width (in.)
5.5

Details

Base Type
Regular Column Base
Connector Finish
Powder coated
Fasteners Included
Fasteners Not Included
Features
Decorative
Gauge
7
Material
Steel
Material Connector Compatibility
Wood to Concrete
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
7.26
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

3Questions4Answers

How would these compare to the HDG (hot dipped galvanized) column bases for use on "pressure trea...

Asked by DG February 24, 2018
1
Answer

Painted connectors have a low level of corrosion protection (the HDG and Z-MAX connectors have a medium level of protection). Please visit the corrosion section of our website for recommended finishes based on your condition (i.e. location, environment, type of wood used, etc.). The new Outdoor Accents products we offer have Z-MAX galvanization over a black powder coat for extra corrosion resistance. Thank you!

Can this tie hold a 6 by 6 by 12 feet post?

Asked by Roma January 15, 2018
1
Answer

The CB66PC has a rated uplift capacity of 4,200 lbs. (the download would be limited to the capacity of the post). It would be up to the Designer/Engineer of Record to calculate the demand load for the specific application and determine if the connector is adequate. Thank you!

What is the W1 and W2 dimensions of this. Is it meant for a rough cut 6x6? or a finished 5.5x5.5?

Asked by Arch November 13, 2016
2
Answers

it is meant for finished 6x6 dimensions, not rough.

Customer Reviews

  • 3 Customer Reviews
  • 4.4 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(1)
4star-icon(2)
3star-icon(0)
2star-icon(0)
1star-icon(0)
Sort By:
Worked out very well
Worked out very well
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Very strong and heavy. I will be using this for...
Very strong and heavy. I will be using this for 6x6 post to setup wooden pergola on a concrete post of 12" diameter and 3ft deep as per my township code. Only downside is the price, the same product without powder coating costs 50% less at an online store.
