Product Details
About This Product

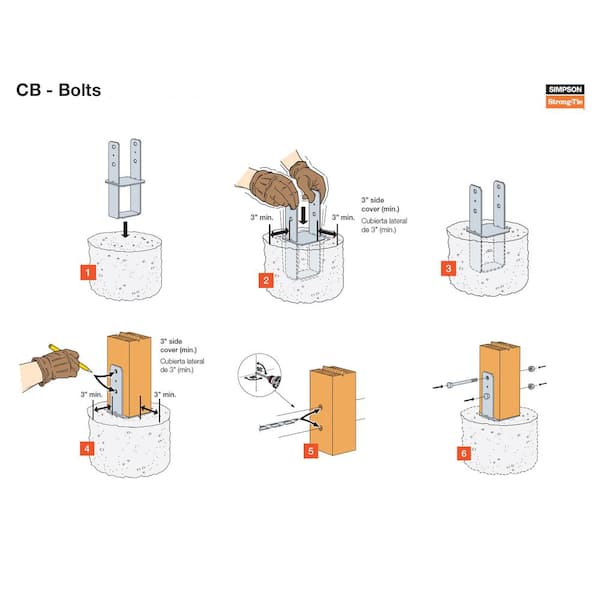

The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Highlights
- Increased uplift resistance for wind or seismic loading
- Bolt hole locations meet code-required spacing for optimal capacity
- Nominal column size: 6x6
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
- Install with (2) 5/8 in. Dia HDG machine bolts
- Shop all Simpson Strong-Tie here.
- Return Policy
Product Information
Specifications
Dimensions: H 16.69 in, W 5.94 in, D 5.56 in
Dimensions
Nominal Post Size (in.) | 6x6 | Product Depth (in.) | 5.56 in |
|---|---|---|---|
Product Height (in.) | 16.69 in | Product Width (in.) | 5.94 in |
Details
Base Type | Regular Column Base | Connector Finish | Hot dip galvanized |
|---|---|---|---|
Fasteners Included | Fasteners Not Included | Features | No Additional Features |
Gauge | 7 | Material | Steel |
Material Connector Compatibility | Wood to Concrete | Number of Pieces | 1 |
Package Quantity | 1 | Product Weight (lb.) | 7.26 lb |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Limited Warranty |
|---|
Questions & Answers
Can the part above ground be painted?
While we do not have any restrictions against painting our products, we do not have any information/guidelines to provide regarding painting galvanized steel as this is not our area of expertise. You may wish to check further with a paint manufacturer or the American Galvanizers Association (www.galvanizeit.org) for information on painting galvanized steel. Thank you!
Latex house paint. Takes 2 coats, Wipe it down thoroughly with vinegar before painting, helps bond the paint. Be warned it will fade, maybe due to heat from sunlight, scratches easily, comes off somewhat easily.
Can this Column Base be used as anchor for post on a 14' pole barn? (6in x 6in Hot-Dip Galvanized)
Yes, this can be used.
I would think so, keeping in mind they hold a 6x6 post, just be sure your building plan has enough posts so that you end up with a building sturdy enough to handle what you want it to do plus the worst things mother nature will throw at it. I was impressed with the anchors, they are solidly made for sure. I like the peace of mind that I don't have to worry about my posts rotting since they eliminate the need to partially sink them in the ground.
What is the difference between CB 4 in. x 6 in. Galvanized Column Base and the Hot-Dip Galvanized Column Base? Both are 7 gauge steel and both are Galvanized. The hot dipped cost twice as much. I need it to support a gate fence post, and not sure if the extra cost is justified.
The steel used to manufacture the CB46 is hot-dipped prior to fabrication. This standard (G90) zinc-galvanized coating contains 0.90 oz. of zinc per square foot of surface area (total both sides) and provides a low level of corrosion protection. The CB46HDG is hot-dip galvanized after fabrication. The minimum average coating weight on the "HDG" products is 2.0 oz./ft2 (per ASTM A123 total both sides) and provides a medium level of corrosion protection. Please visit our website for information on our coatings, to determine what finish is recommended for your condition, and for complete corrosion information. Thank you!
What machine bolts do I need for this Simpson 8 x 8 column base and where can I get them?
This item uses 3/4 in. Diameter bolts.
How do I accomplish a 1" standoff with this base?
This base does not provide a 1" standoff. For a 1" standoff, please see the CBS66 (bolted version) or CBSQ66 (screw version); both available with the HDG finish (add HDG to model number). Thank you!
Viewing 1-5 of 5
